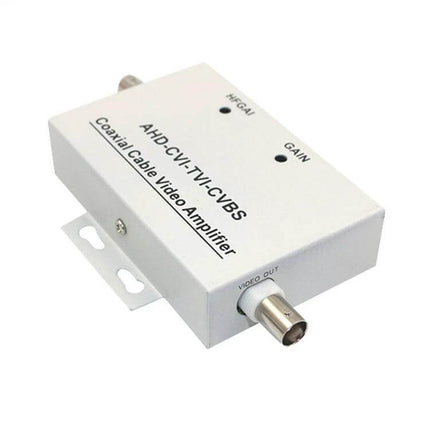

The AD5301 video signal amplifier supports remote transmission systems by amplifying and balancing video signals to address common issues like signal loss and frequency distortion. It's compatible with both black-and-white and color video formats.

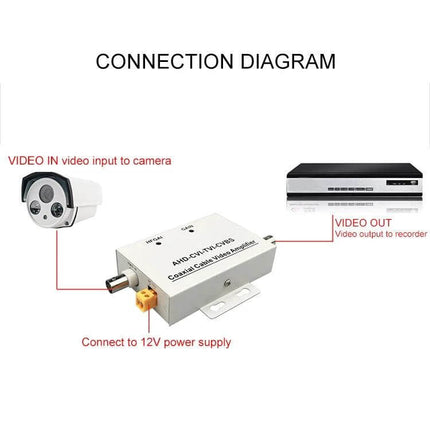

In practical applications, such as security camera setups or long-distance video feeds, this amplifier helps maintain clear signal quality over extended cables, reducing degradation that can affect video clarity and reliability.

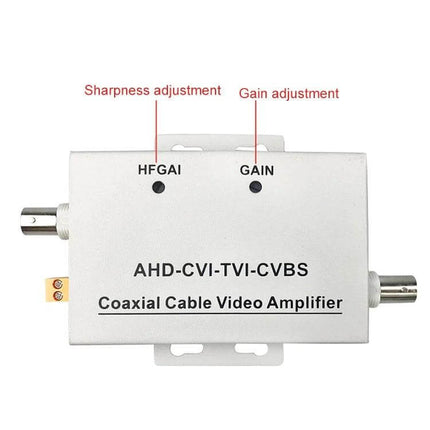

- Amplifies signals with adjustable gain up to 6dB for customized output
- Adjustable frequency response to suit various video bandwidth needs

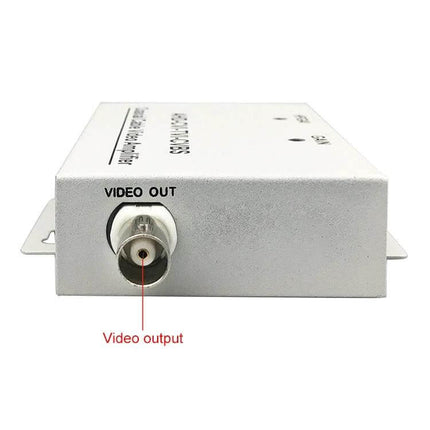

- Features 75-ohm input and output load with BNC connectors for standard compatibility
- Operates on DC12V power, suitable for a range of environments
- Bandwidth from 10Hz to 7.5MHz to handle typical video frequencies
- Supports temperatures from -10°C to 45°C and up to 90% humidity for versatile use
Key specifications include a maximum output video voltage of 2.5V, making it a practical choice for users seeking to enhance video signal transmission without complex setups.
This amplifier fits well in scenarios requiring dependable signal boosting, such as CCTV or AV systems, where maintaining integrity over distance is essential.
