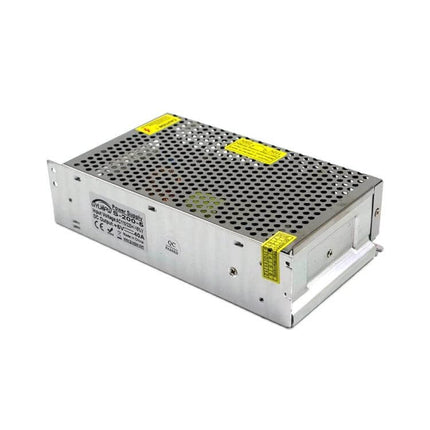

LED Regulated Switching Power Supply in an aluminum enclosure delivers a stable DC12V output for LED lighting installations.
The compact, metal‑cased unit provides reliable power in variable mains environments, suitable for LED strips, panel lighting, and signage.
- Input: 110V/220V ±1% (100–140V, 180–260V)
- Output: DC12V, 0–21A (up to 250W)
- Voltage tolerance: ±1%; adjustable within ±5%
- Protections: overload, overvoltage, overcurrent, short circuit
- Isolation: 1.5 kV AC between input/output/enclosure; leakage <1 mA
- Physical: aluminum housing; 200×110×49 mm; operates at 50–60 Hz
Optional light specifications: Aluminum housing aids heat dissipation during continuous LED operation; compact form factor suitable for LED strips and small fixtures.
Fit: Designed for 12V LED applications requiring up to 21A (approx. 250W); compatible with standard LED drivers and fixtures that accept a regulated 12V DC supply.
