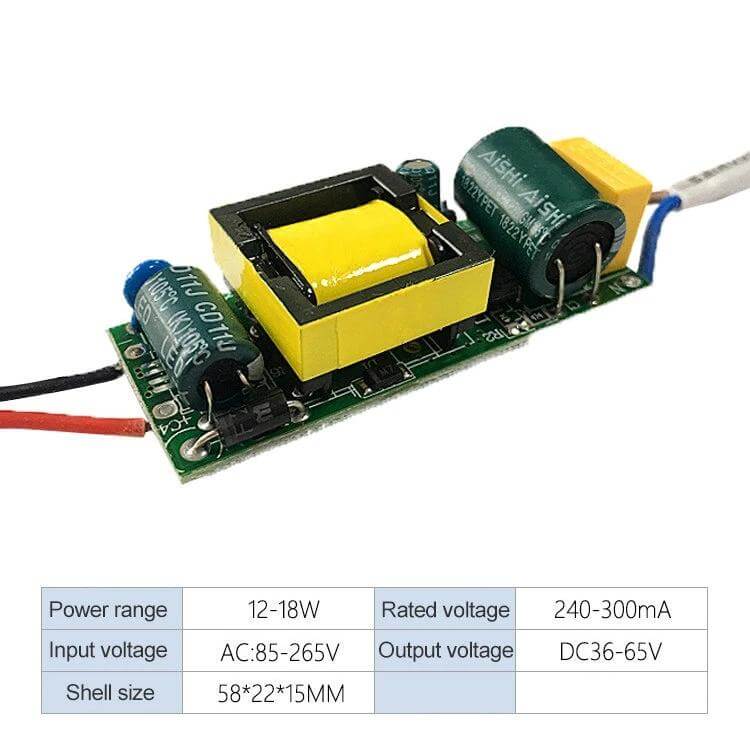

The 12–18W LED driver is an isolated AC-to-DC power supply for constant-current LED applications. It accepts 85–265V AC input and delivers a regulated DC output for small to mid-size LED modules and signage.
Use this driver for retrofit fixtures, channel letters, and strip-to-module conversions where a stable current source and electrical isolation are required. The compact enclosure eases installation in tight housings and junction boxes.
-
Power: 12–18W output range for low-power LED strings
-
Input: 85–265V AC wide-range compatibility
-
Output: 36–65V DC, constant current 240–300 mA
-

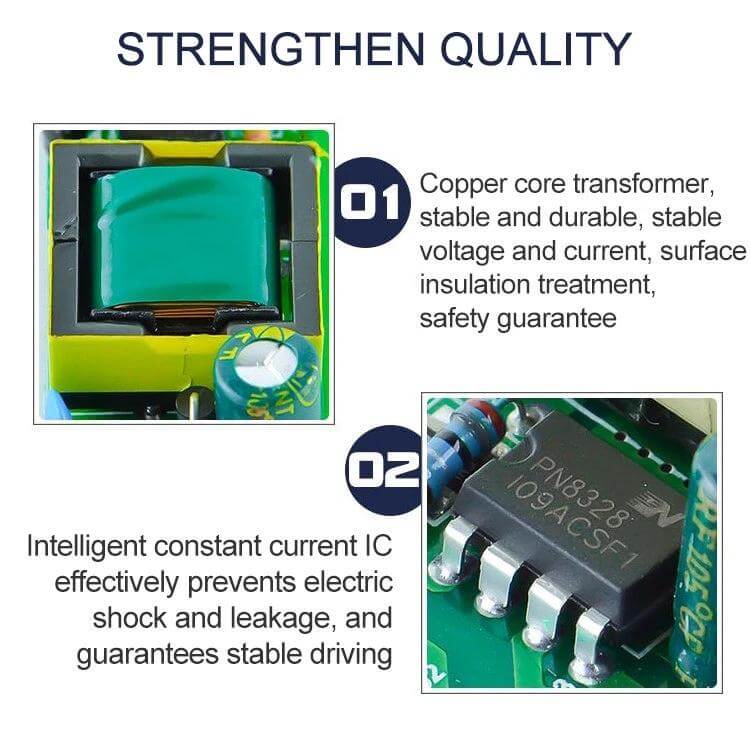

Construction: copper-core transformer and electrolytic capacitor for durability
-
Safety: isolated output supports flexible wiring and safer integration

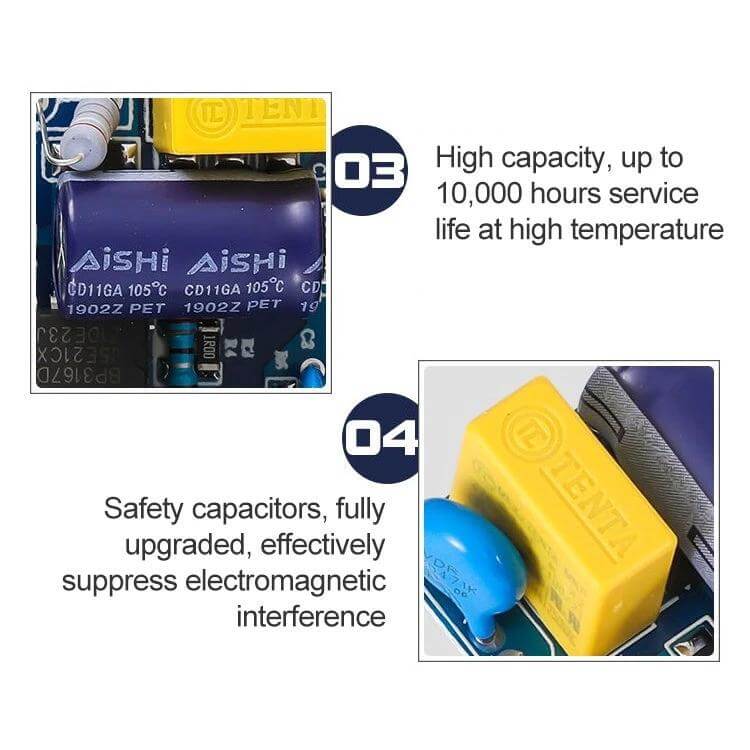

Light specifications: isolation between input/output; rated capacitor life up to 10,000 hours.
Fit: suitable for LED modules requiring ~240 mA at 36–65 V; confirm module forward-voltage and current before installation.
