The 14 Key RF Timer Dimmer is a compact controller for 5–12 V LED strip installations, offering timed on/off scheduling and stepless dimming via an RF remote. The unit measures 86 x 40 x 7 mm and weighs about 35 g for discreet placement.
Use it for cabinet lighting, under-shelf accents, backlighting or small DIY mood-light projects where remote access and a built‑in timer simplify operation. The RF remote does not require line‑of‑sight, useful for hidden installations.
-

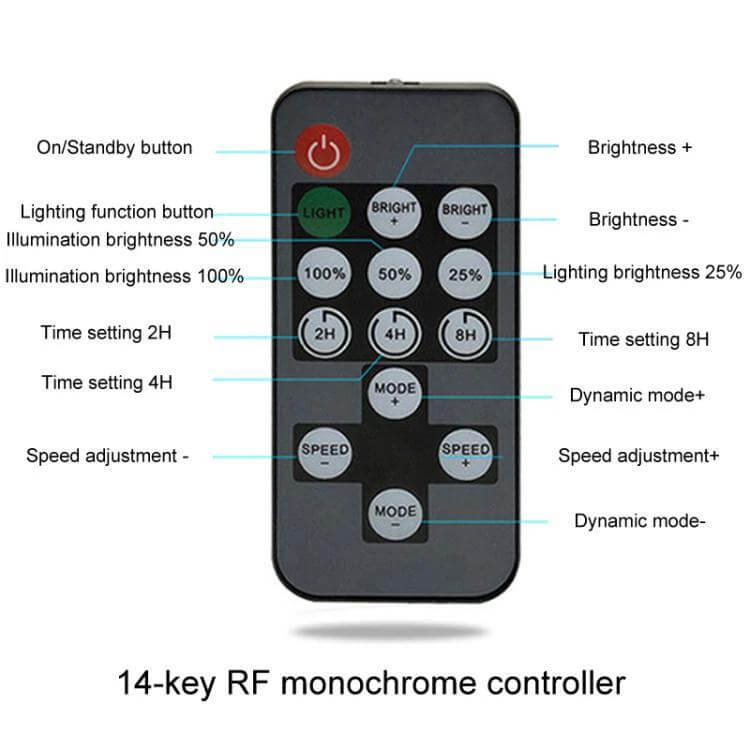

14-key RF remote: timer, brightness presets, on/off and memory functions.
-
Wide input range: DC 5–12 V compatibility with common LED strip power supplies.
-
Output capacity: up to 30 W at 5 V and 72 W at 12 V for single-circuit strips.
-
Compact footprint: fits inside cabinets or behind fixtures for concealed mounting.
-
Operating range: -20 to 60 °C suitable for indoor domestic or workshop use.
Specifications: DC head input, single output circuit, built‑in button cell in remote.
Fit: Compatible with most 5–12 V LED strips using standard DC connectors; check strip power to match output capacity.
