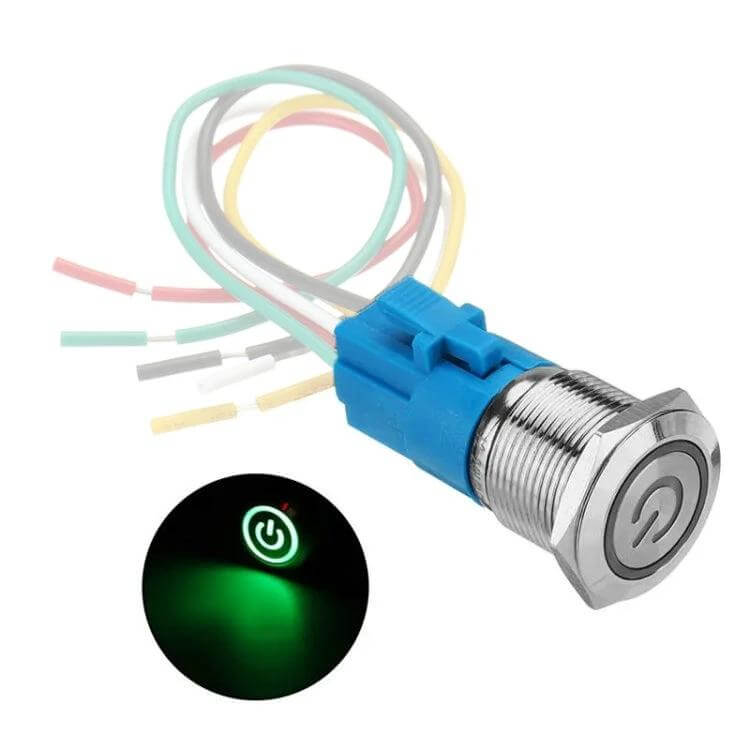

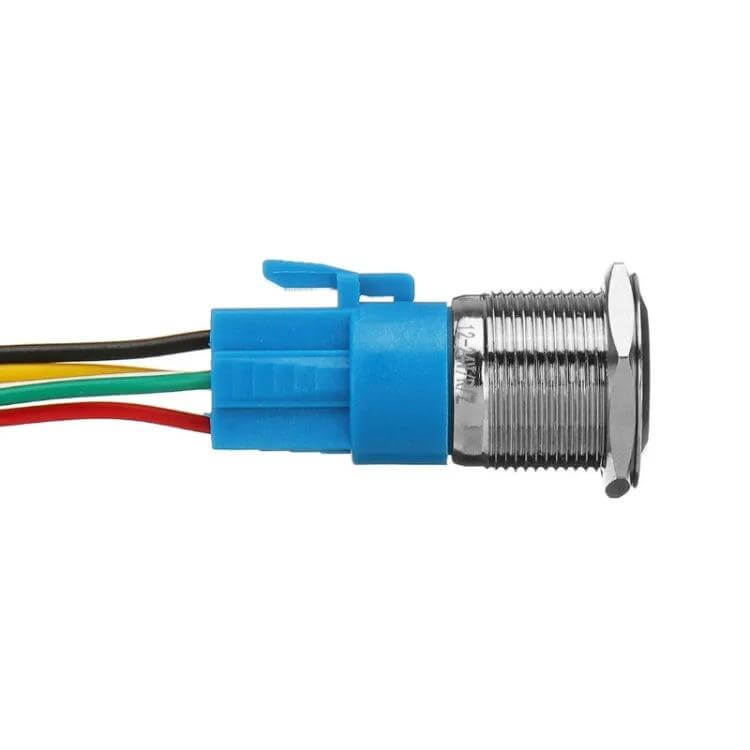

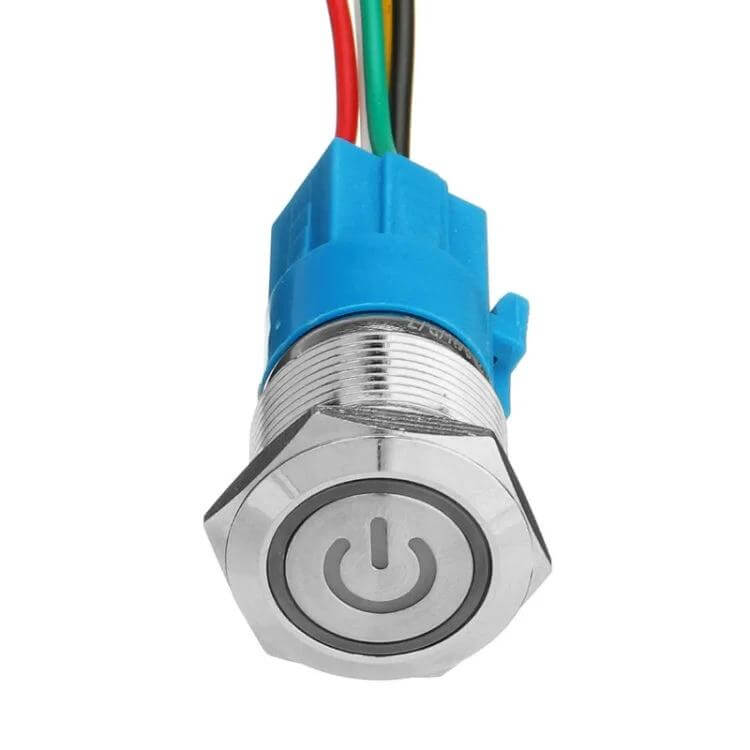

The 19mm Car Button Switch With Light is a compact, brass nickel-plated push-button with a flat head designed for weatherproof panel installations.
It suits automotive dashboards, marine controls, and outdoor equipment where a visible, protected switch is needed in variable conditions.

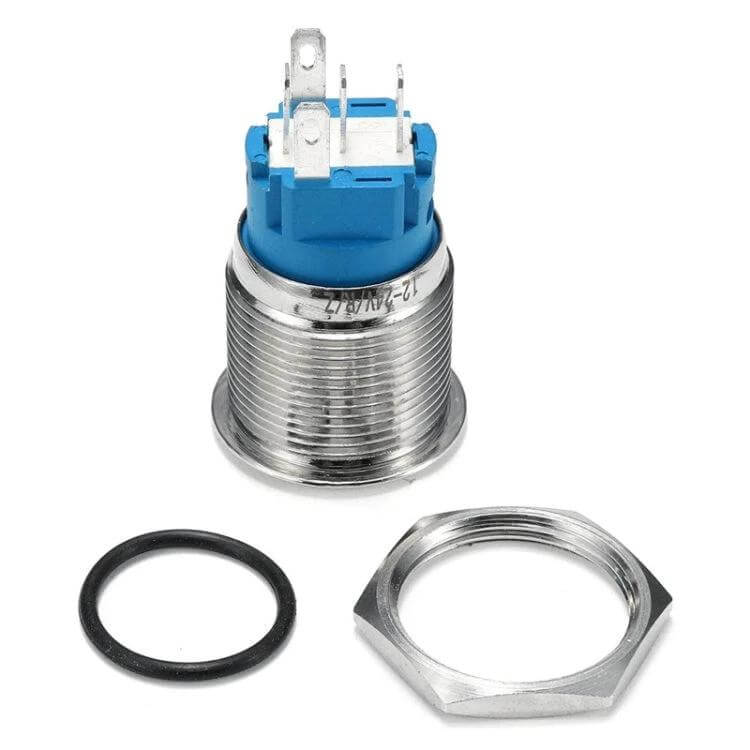

- 19 mm mounting cutout with brass nickel-plated body and flat head
- LED indicator powered by 12–24 V for clear visibility
- Contact configuration: 1 normally open (NO) and 1 normally closed (NC)
- Terminal type: soldering; no pre-attached leads
- Rated for up to 4 A at 220 VAC
- Protection: IP67 waterproof, IK09 impact resistance; weight ≈ 17 g

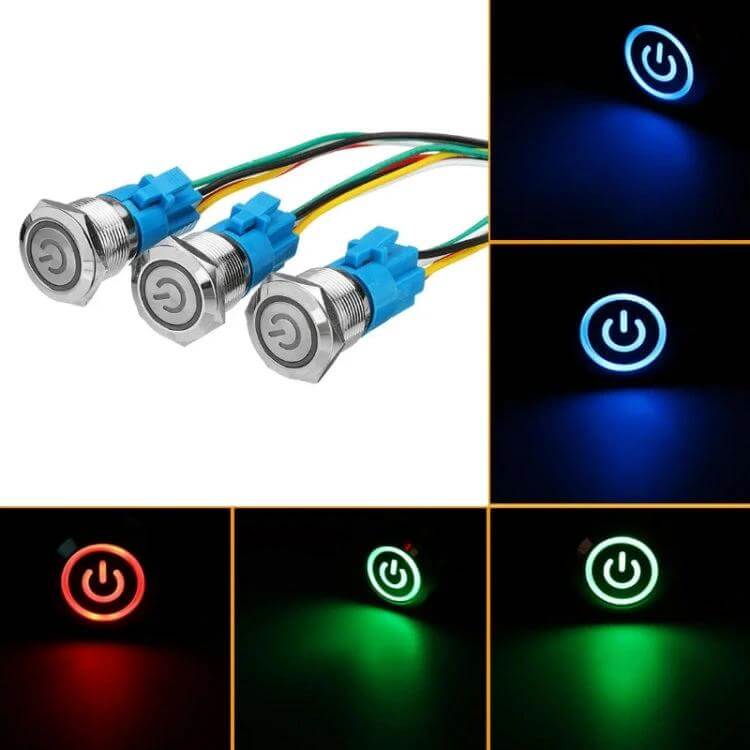

Optional light specifications: integrated LED operates within a 12–24 V supply, providing status indication in low-light environments.
Fit and compatibility: designed for a 19 mm panel cutout; ensure the mounting hole matches the spec for secure installation.
