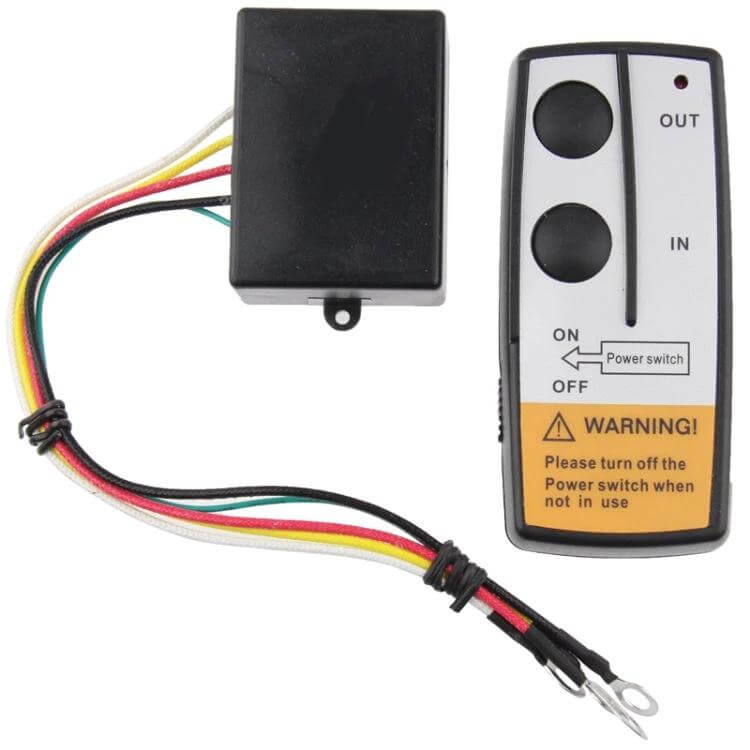

The 24V Wireless Winch Controller enables wireless control for electric winches with a compact remote and receiver.
It uses a 315 MHz link with a practical range beyond 25 m for distant operation from a handheld device.
Ideal for off-road vehicles, trailers, or worksites where wired controls are impractical. Pair with a 24V winch to manage forward and reverse from a handheld remote.

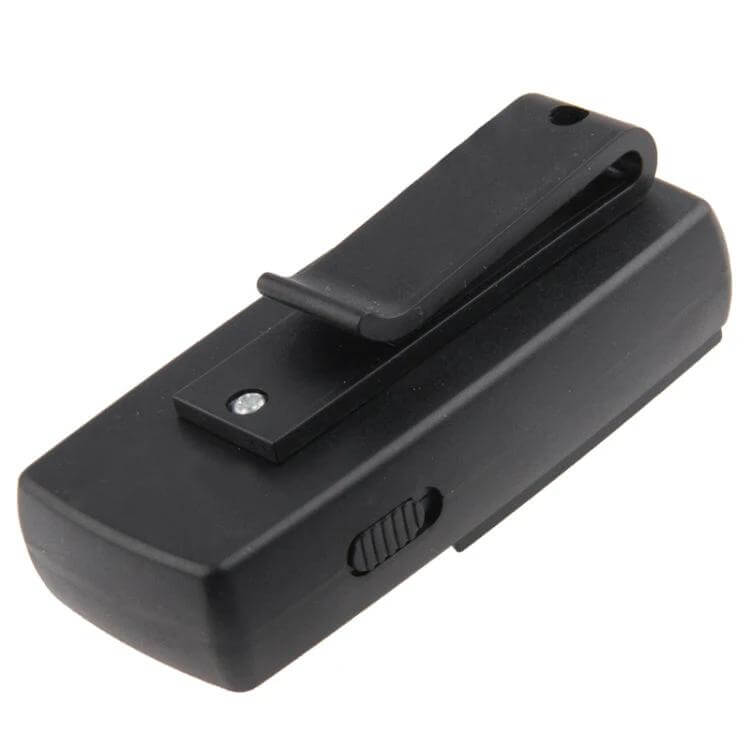

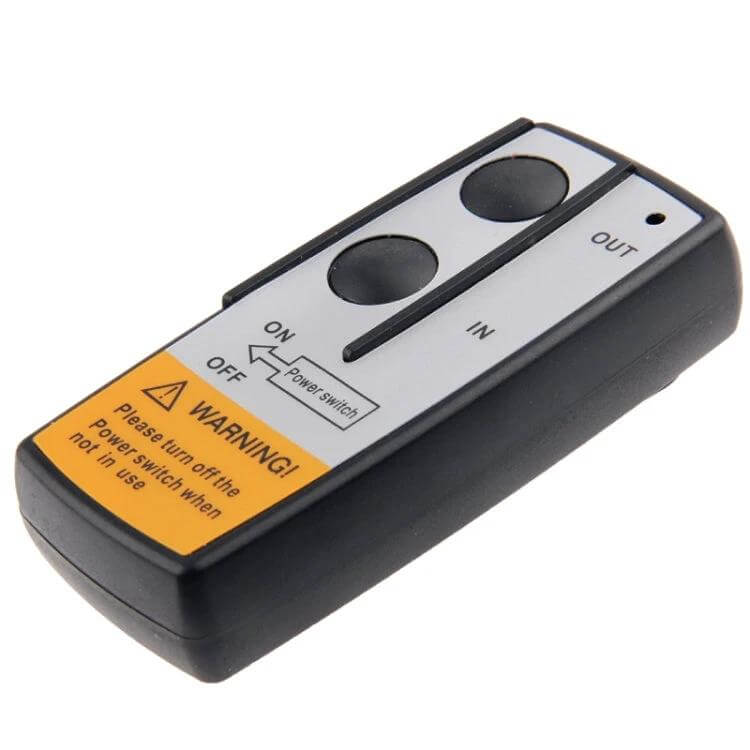

- Remote: 24 V DC; ~25 mA; 315 MHz; 10 dBm; 1x 23A/12V battery (not included).

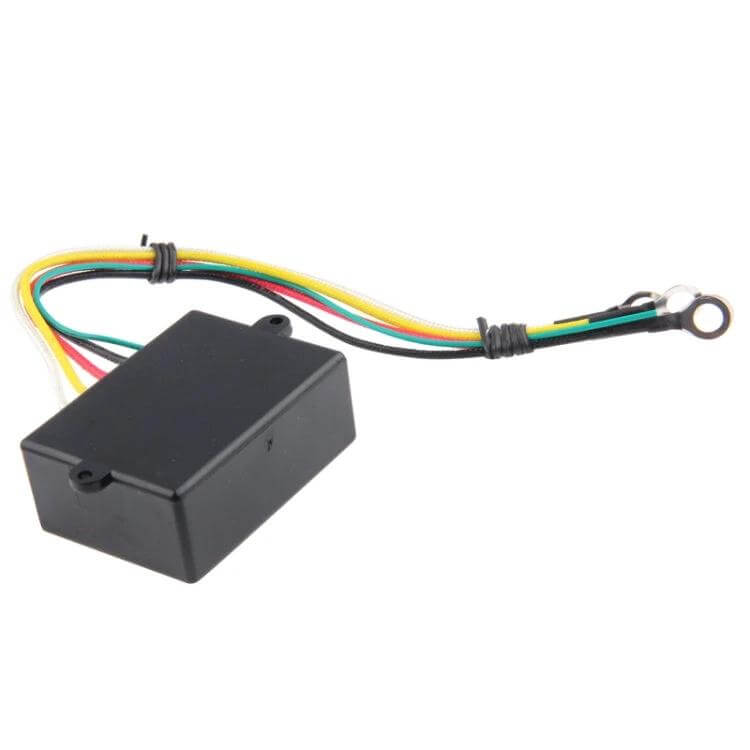

- Receiver: 10–15 V DC; ~35 mA; 315 MHz; sensitivity > -106 dBm; drive up to 10 A.
- Operating temperature: -20°C to 85°C.

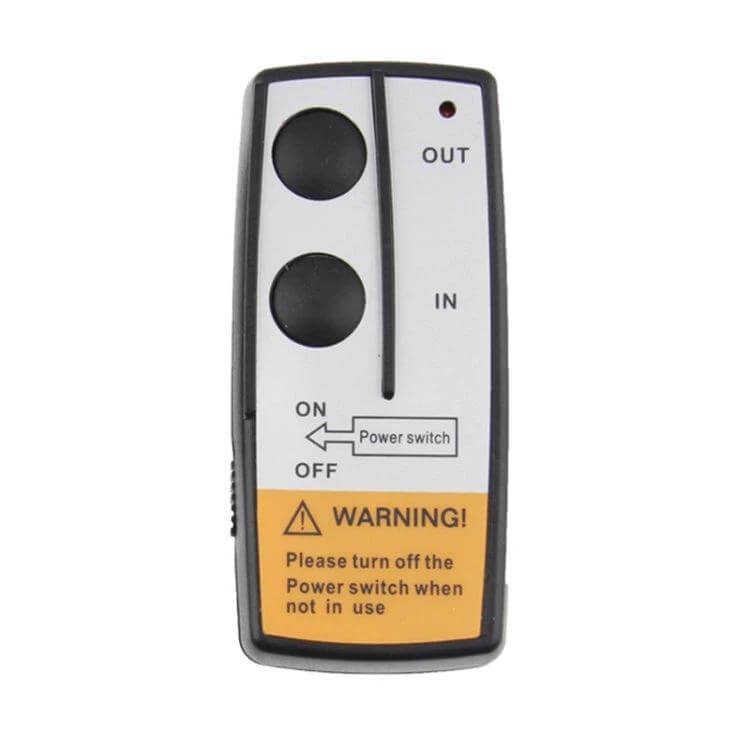

- Controls: Hold OUT for forward, IN for reverse; release stops.
- Range: over 25 meters (typical, line of sight).
- Wiring compatibility: designed to integrate with standard winch wiring harnesses.
Technical notes: Remote battery type is 1x 23A/12V (not included). Receiver operates from 10–15 V supply; no separate power source required beyond the winch circuit.
Fit: Designed to fit 24V electric winches with compatible 315 MHz receiver interfaces; verify your harness and connector compatibility before installation.
