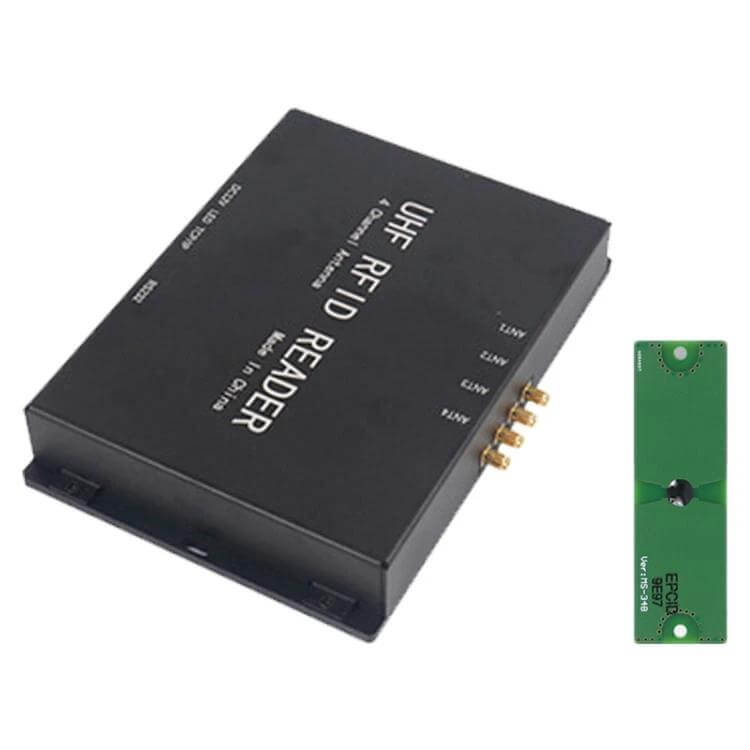

This 4-Channel UHF RFID reader is designed for efficient temperature monitoring in electric power systems, using UHF technology to read data from passive tags.
In industrial settings, such as data centers or power equipment monitoring, this reader helps track temperature in real-time across multiple points, allowing for quick detection of issues like overheating without constant manual checks.

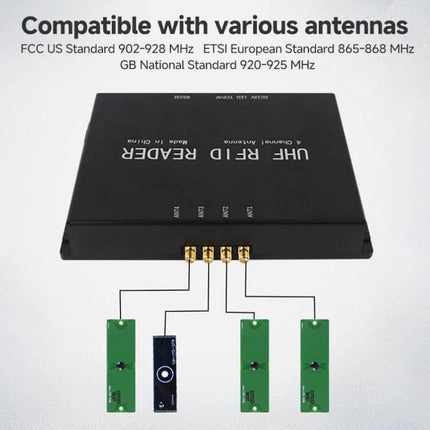

- Monitors up to 4 antennas simultaneously for broader coverage in large areas.

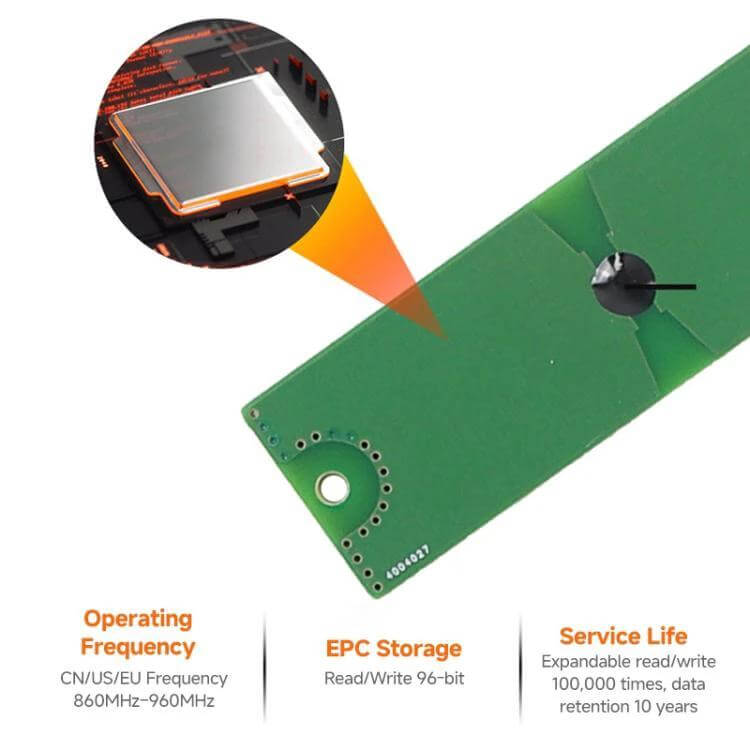

- Employs passive sensor technology, eliminating the need for batteries in tags to minimize maintenance requirements.
- Supports MODBUS RTU protocol for straightforward integration with existing automation systems.
- Provides long-range reading capabilities up to 20 meters, ideal for remote or hard-to-reach assets.

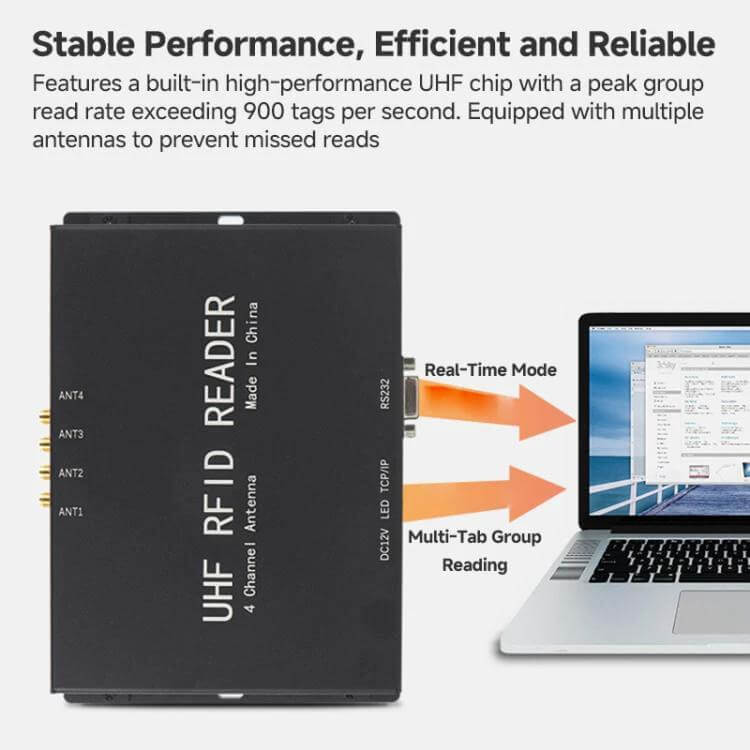

- Handles high-speed tag reading, exceeding 900 tags per second, to manage busy environments effectively.
- Adjustable power settings from 1 to 33 dBm for optimized performance based on specific needs.
Light specifications include a compact size of 185x130x30mm and an operating temperature range of -20°C to +65°C. This reader fits well in applications requiring reliable, real-time data collection for electric power and logistics monitoring.
