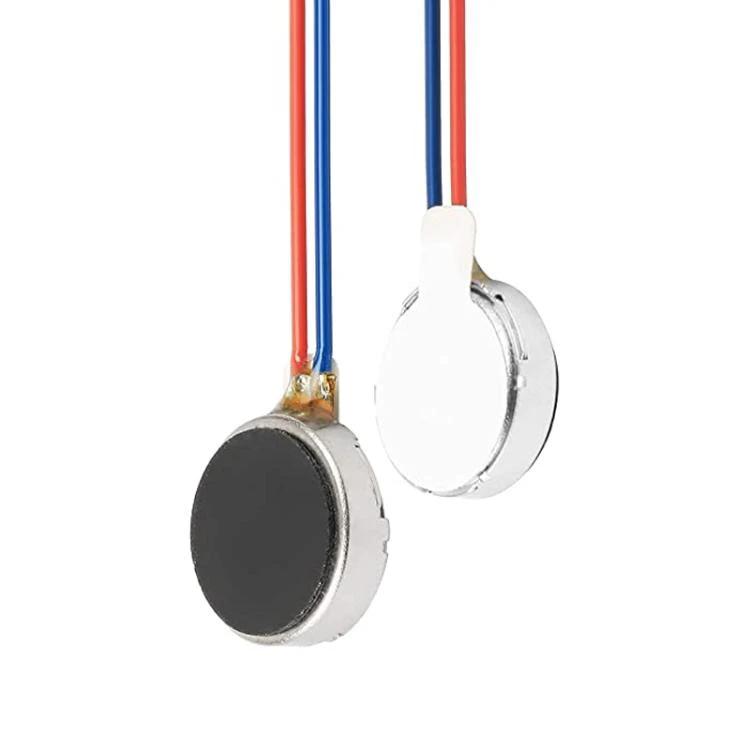

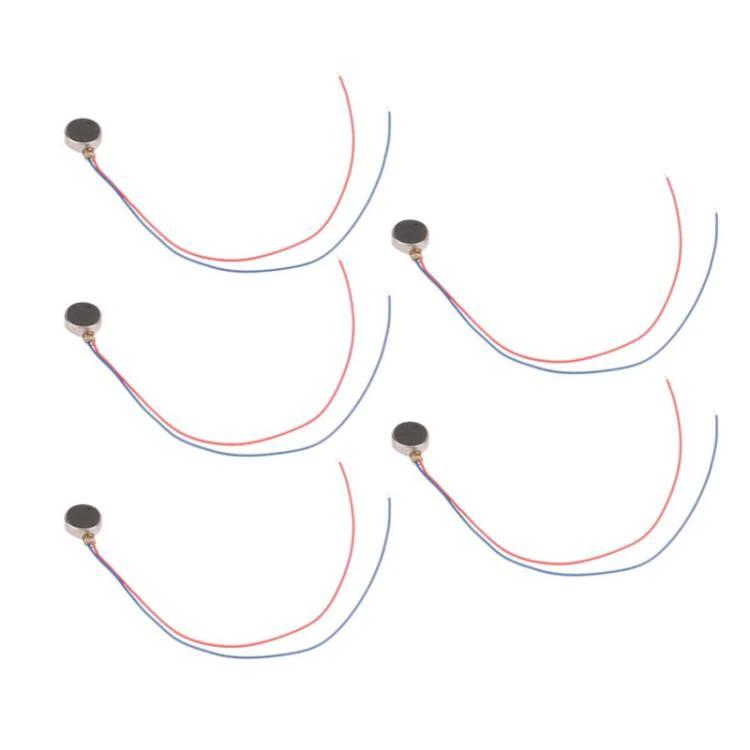

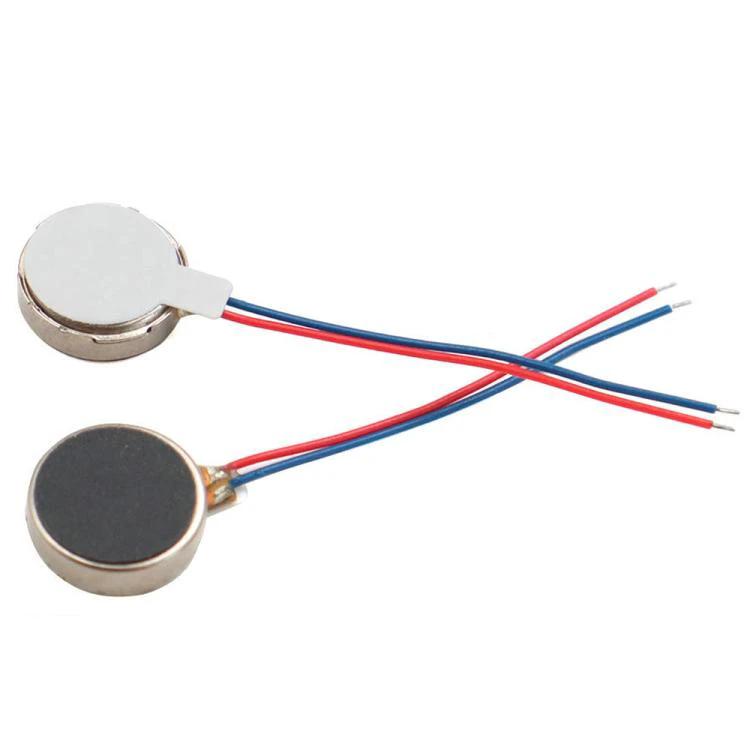

This 5-piece set of flat button vibration motors provides compact, low-power haptic drive for small electronic products. The flat shape and light weight suit tight enclosures where space and battery life matter.
Use cases include integration into handheld beauty tools (facial cleansers), electric toothbrushes, pet dispensers, motorized toys, and training devices where consistent tactile feedback or vibration-assisted motion is required.
-

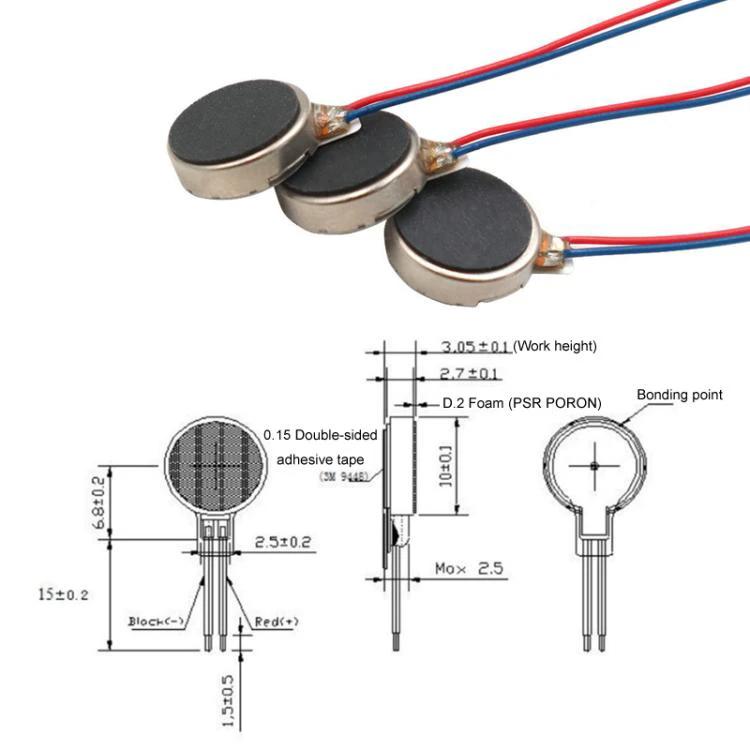

Compact size: 10 x 2.7 mm button profile for shallow cavities and PCB-mounted assemblies.
-
Low-voltage operation: Rated 3 V, starting at 2.3 V for battery-powered designs.
-
Energy efficient: Low rated current ~0.8 mA to extend runtime in portable devices.
-
Performance: No-load speed ~12,000 RPM for steady vibration without large torque requirements.
-
Lightweight: Simplifies installation and reduces overall device mass.
Specifications (select): 10×2.7 mm, 3 V rated, start 2.3 V, 12,000 RPM no-load, 0.8 mA rated current.
Fit statement: These motors are suitable for compact housings designed for 10×2.7 mm components and standard low-voltage electronics; verify cavity depth and mounting method before assembly.
