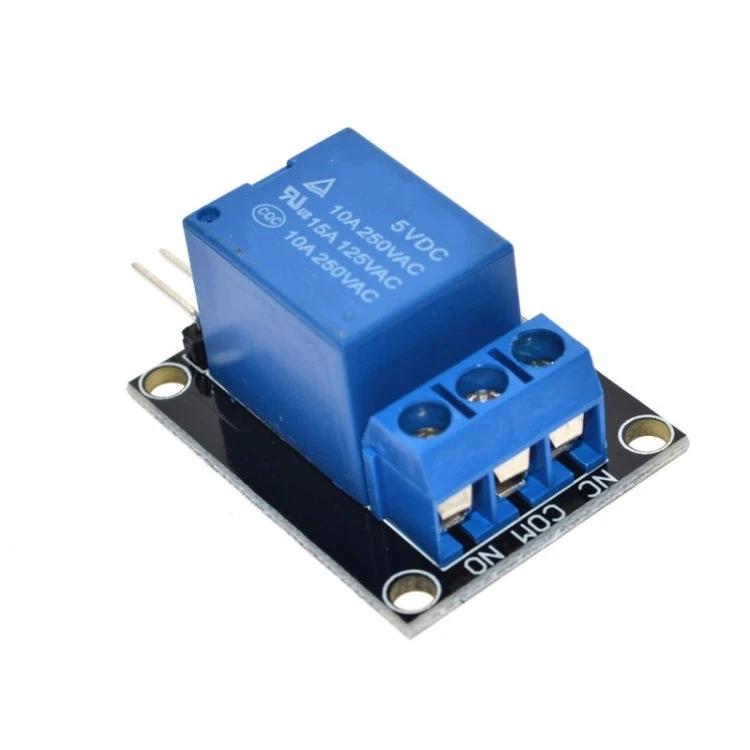

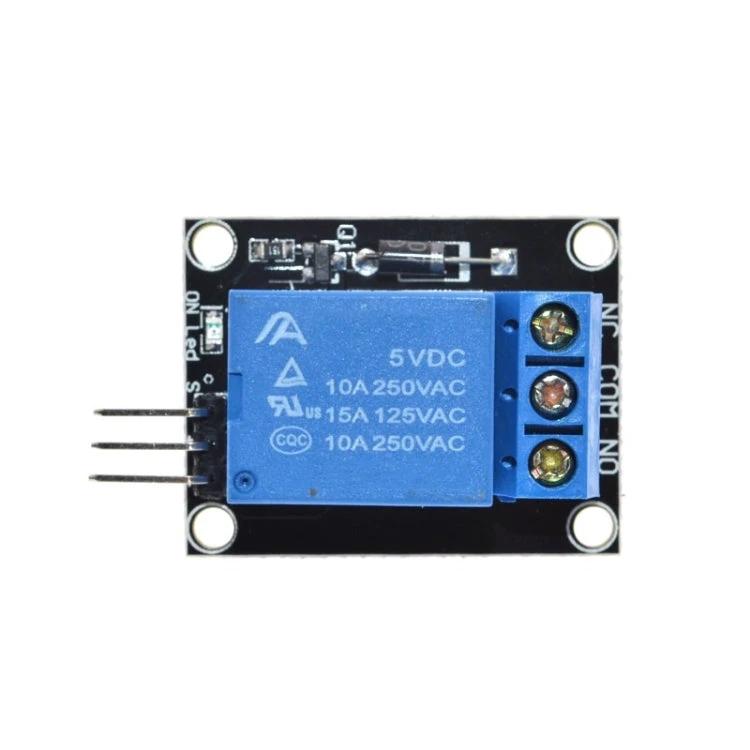

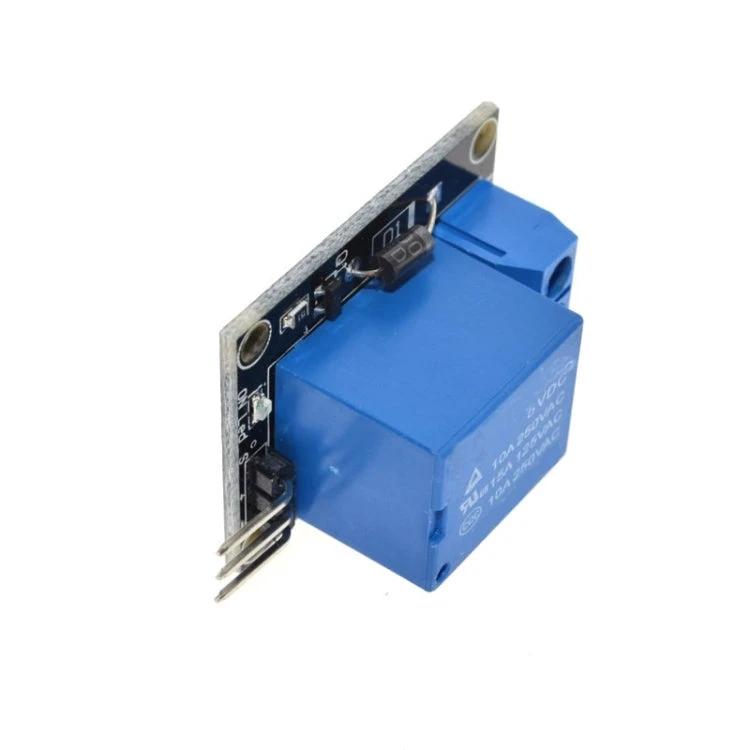

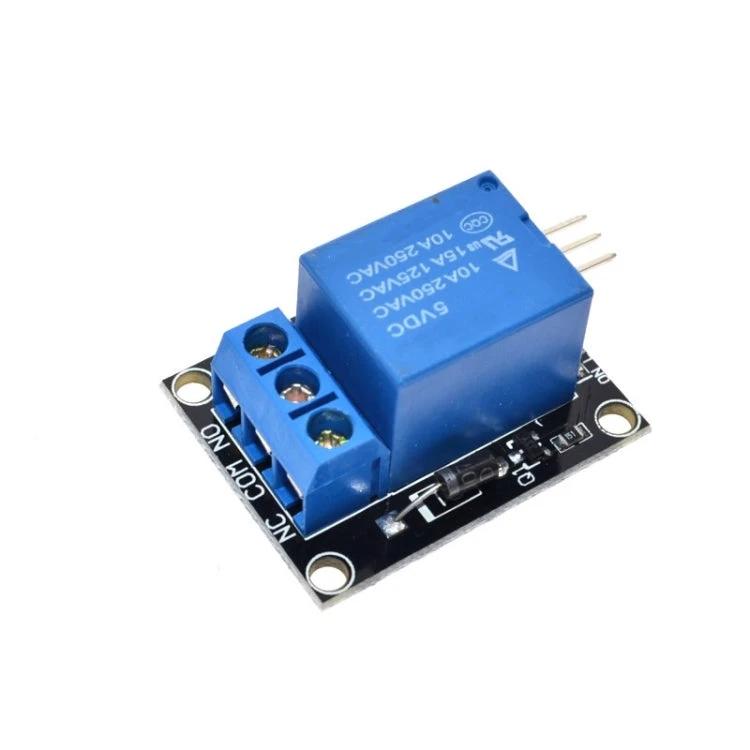

The 5V relay module serves as a versatile component for electronics enthusiasts and hobbyists working on projects like Arduino setups or basic home device automation.
In a typical use case, this module enables you to switch higher voltage devices, such as lights or motors, using a low-voltage signal from a microcontroller, making it suitable for prototyping smart home controls or sensor-based systems without needing complex wiring.
- Operates on a 5V supply with 5V-12V TTL control signals for easy integration with Arduino boards.
- Features a normally open and normally closed contact to handle both DC and AC loads up to 220V, providing flexibility for various applications.
- Includes a power indicator and a control indicator light that illuminates when the relay is active, helping with quick status checks.
- Utilizes a transistor drive for the relay coil and a pull-down circuit on the control pin to minimize the risk of unintended activations.
- Compact design suitable for breadboard use, enhancing reliability in experimental setups.
- Supports control of everyday devices, offering a straightforward way to interface low-voltage logic with higher-power circuits.
This module fits well for beginners and intermediate users in DIY electronics, providing a reliable option for safe and effective device control in educational or personal projects.
