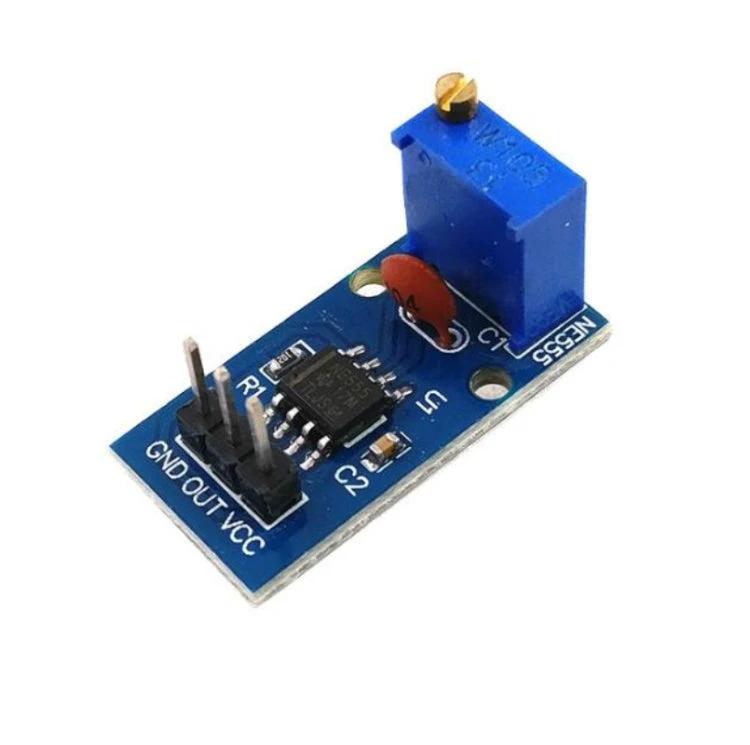

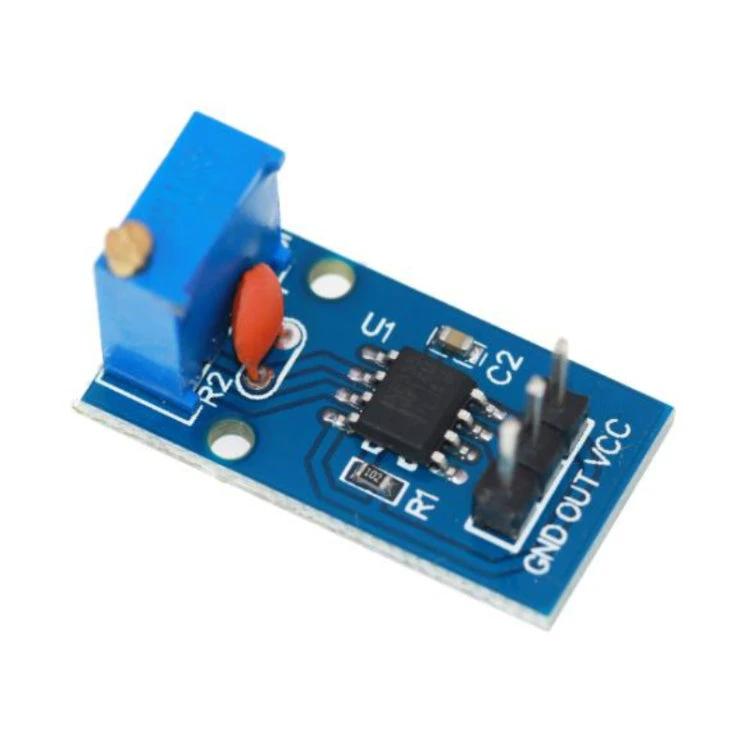

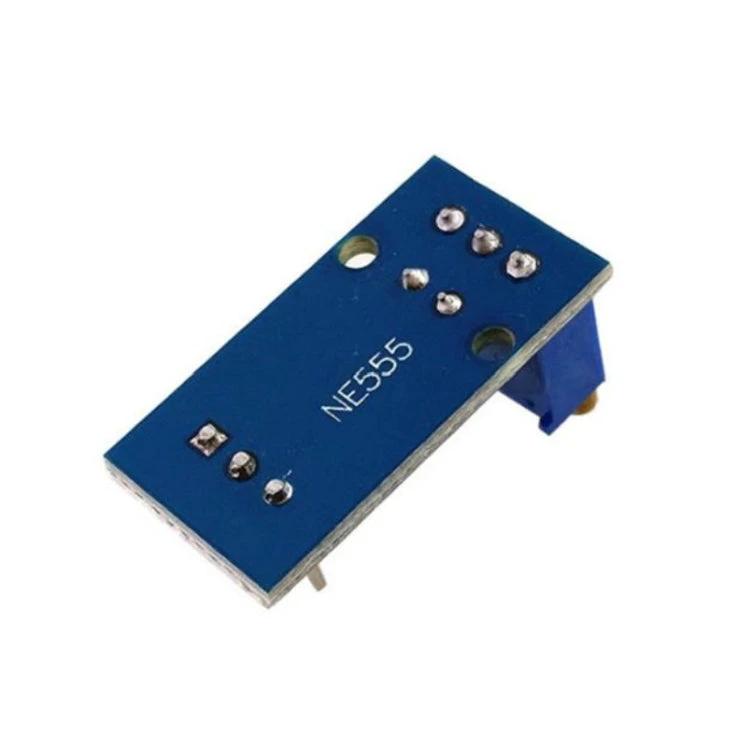

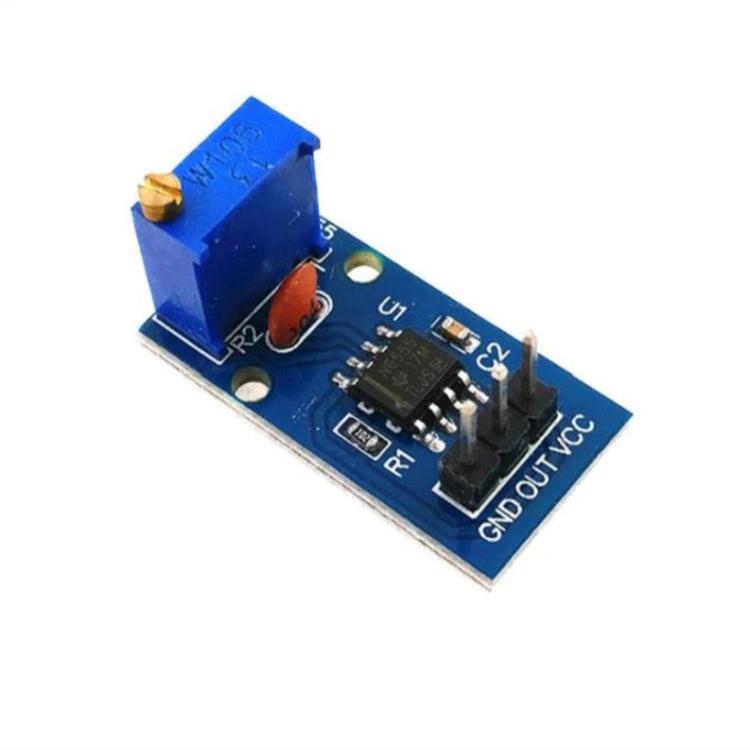

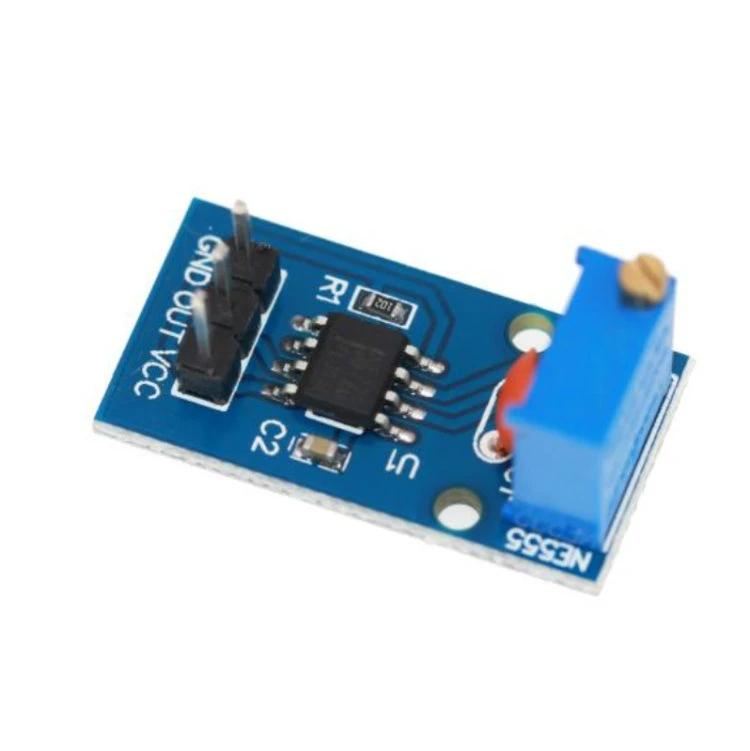

The Adjustable Frequency Pulse Generator Module is a compact electronic tool for DIY enthusiasts, featuring an NE555 chip for reliable pulse generation.
In practical use, this module helps create adjustable square wave signals, making it ideal for testing circuits, building timers, or experimenting with frequency modulation in personal electronics projects.
- Adjustable resistance allows for precise frequency control, enabling customization for specific applications.
- Supports a working voltage range of 5 to 12V, offering flexibility with common power sources.
- Compact board size of 29mm x 12mm fits easily into tight spaces or prototypes.
- Utilizes the NE555 chip, known for its stability in timing and oscillation tasks.
- Simple setup with no complex programming required, suitable for beginners and advanced users alike.
Light specifications include its small form factor and broad voltage compatibility, which enhance portability in field or lab settings. This module fits well for those designing custom electronics, from hobbyists to educators seeking hands-on learning tools.
