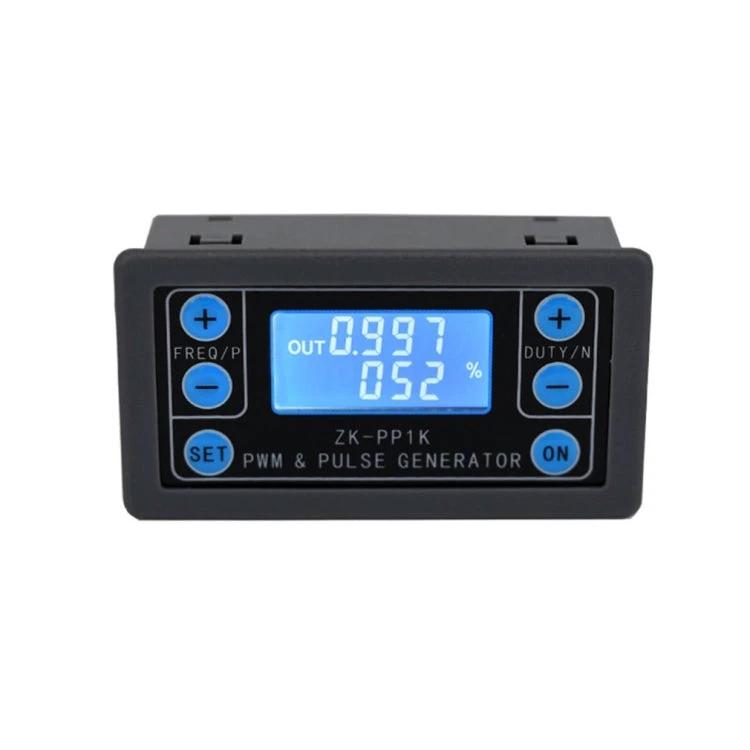

The Adjustable PWM Signal Generator is a practical device for producing square wave signals, commonly used in electronics for tasks like motor speed control and dimming applications.
In a typical use case, this generator helps in projects where precise pulse signals are needed, such as adjusting the speed of a DC motor in a robotic arm or controlling solenoid valves in automated systems, by allowing users to fine-tune frequency and duty cycles without directly powering the loads.

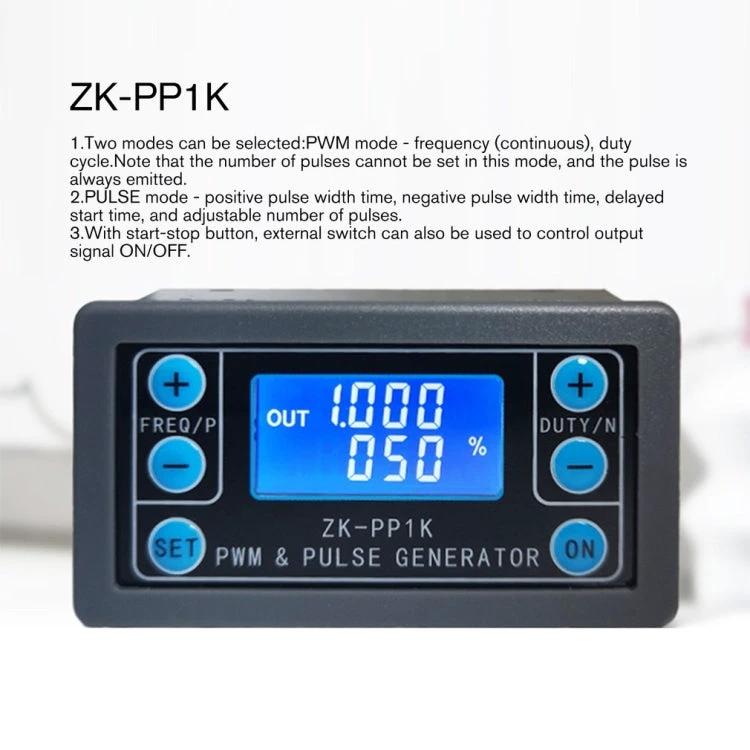

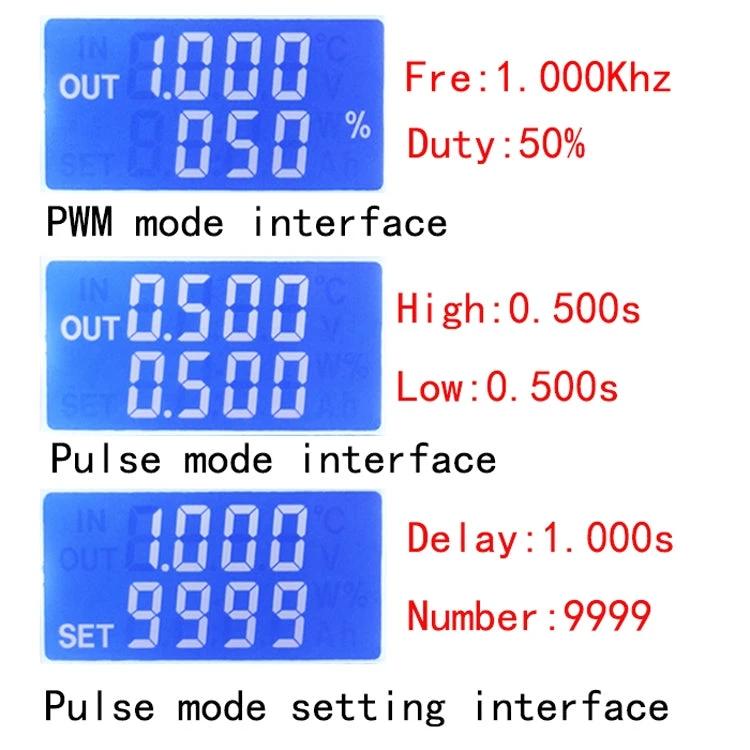

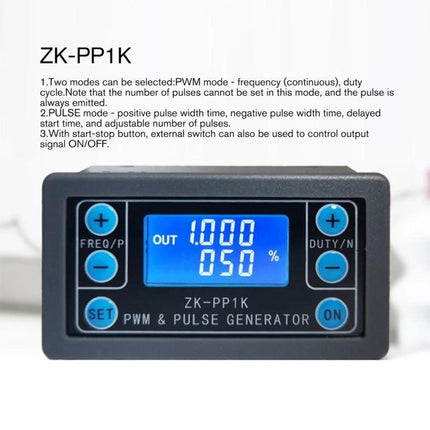

- Offers two operating modes: PWM for continuous frequency and duty cycle adjustments, and PULSE for setting specific pulse widths, delays, and counts.
- Supports a wide input voltage of 3.3V to 30V with anti-reverse protection, ensuring safe operation across various power sources.

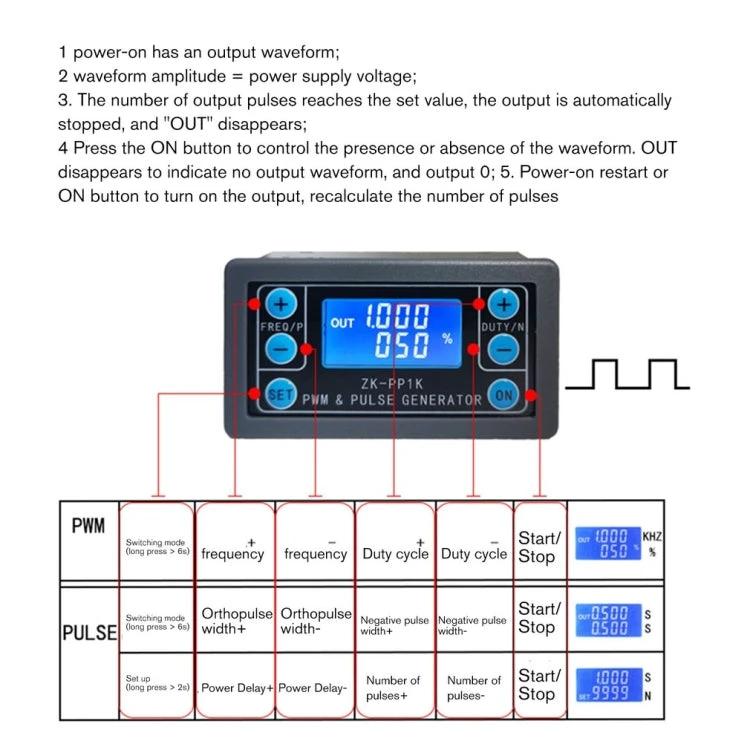

- Features a start/stop button and external switch compatibility for easy signal control.
- Provides adjustable frequency from 1Hz to 150kHz and duty cycle from 0-100% in 1% steps.

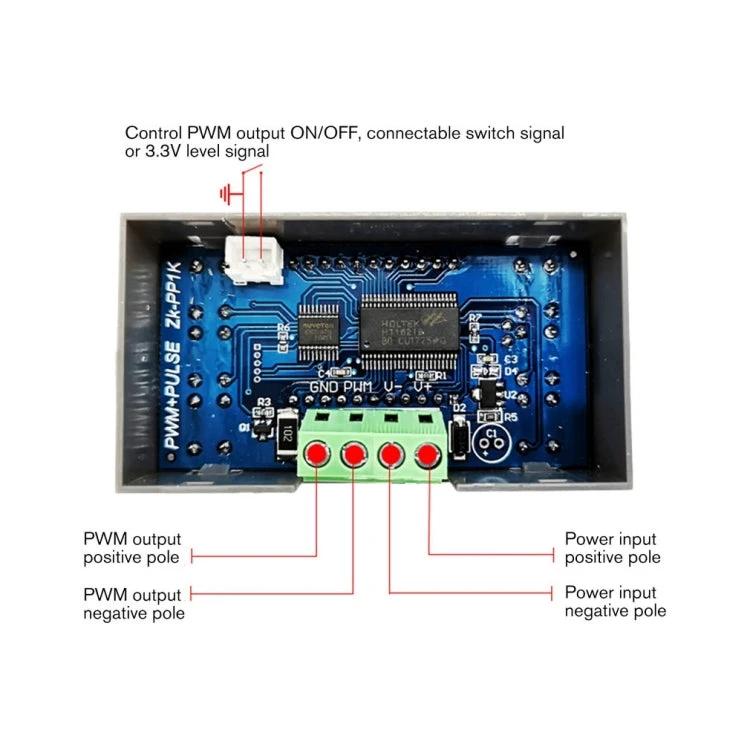

- Includes convenient 5.08mm screw terminals for straightforward wiring.

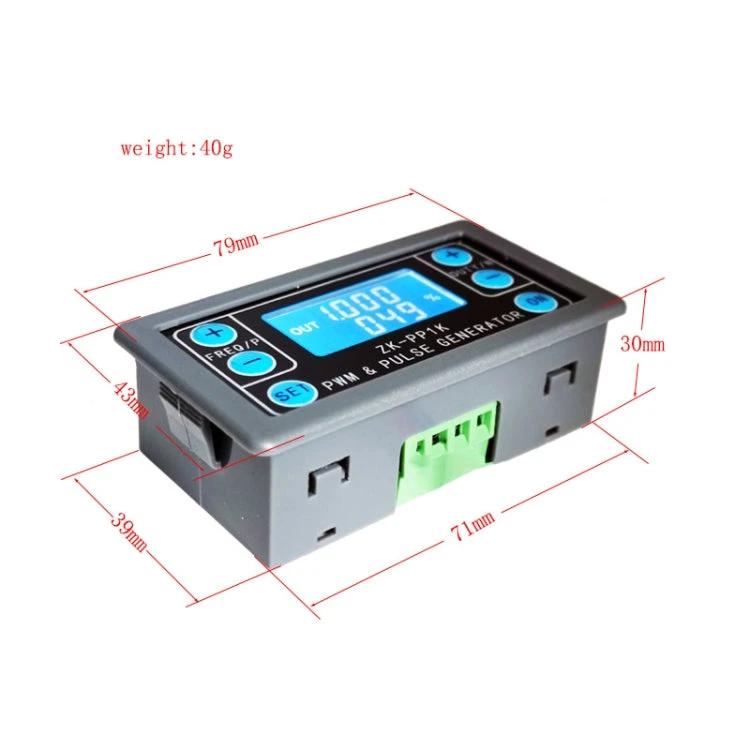

- Compact size of 79mm x 43mm x 30mm and lightweight at 40g, making it easy to integrate into projects.
This signal generator fits well for electronics enthusiasts, hobbyists, and engineers needing reliable pulse generation for control systems, offering flexibility in settings to match specific project requirements.
