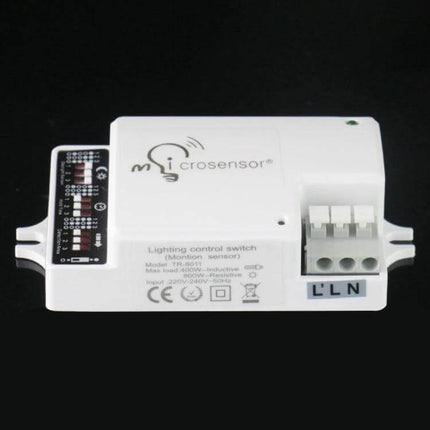

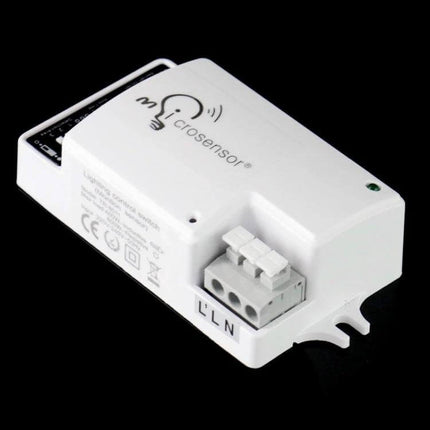

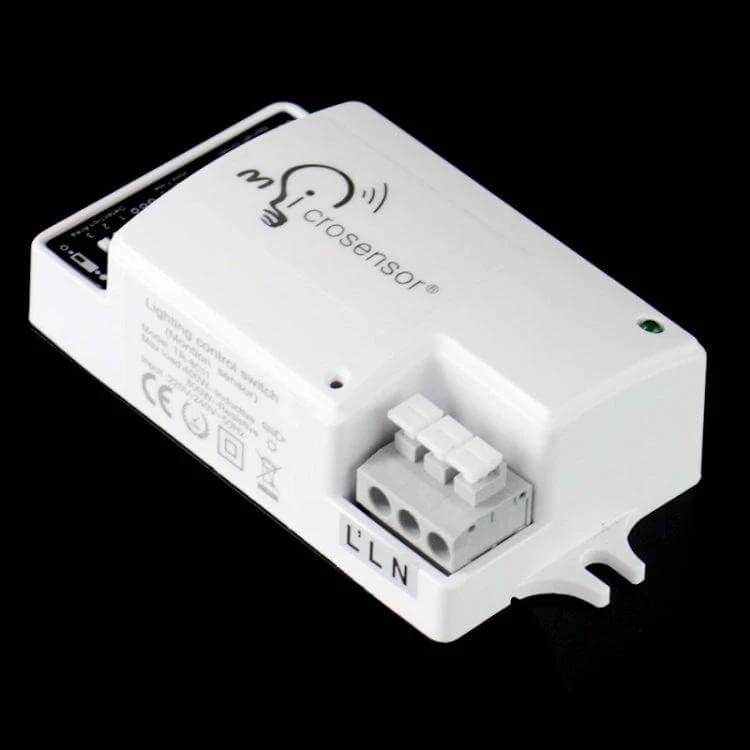

The Ambient Light Control Sensor for Automatic Lighting adjusts fixtures based on ambient brightness and motion, using a brightness sensor and a 5.8 GHz microwave detector. Dial switches let installers set brightness, delay and detection range without tools.

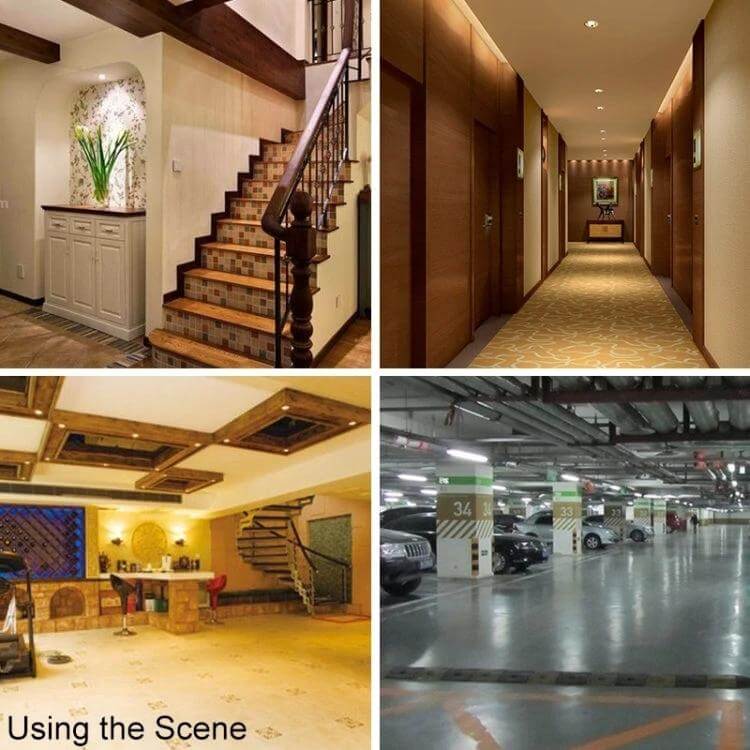

Use cases: designed for road lights, garden lights and walkway lamps where automatic night-only control and presence-triggered lighting reduce runtime and improve nighttime visibility. Suitable for homeowners, property managers and outdoor-lighting installers.
-

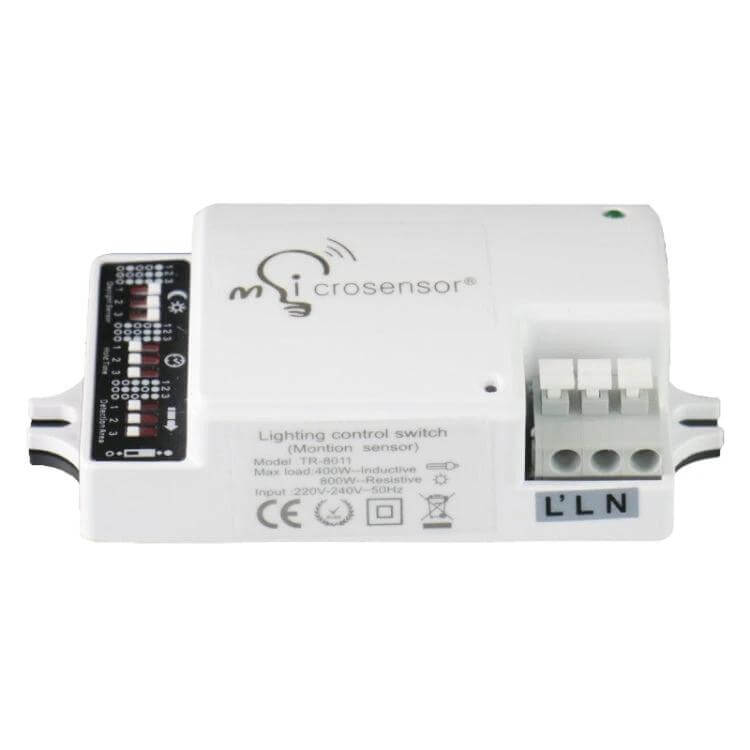

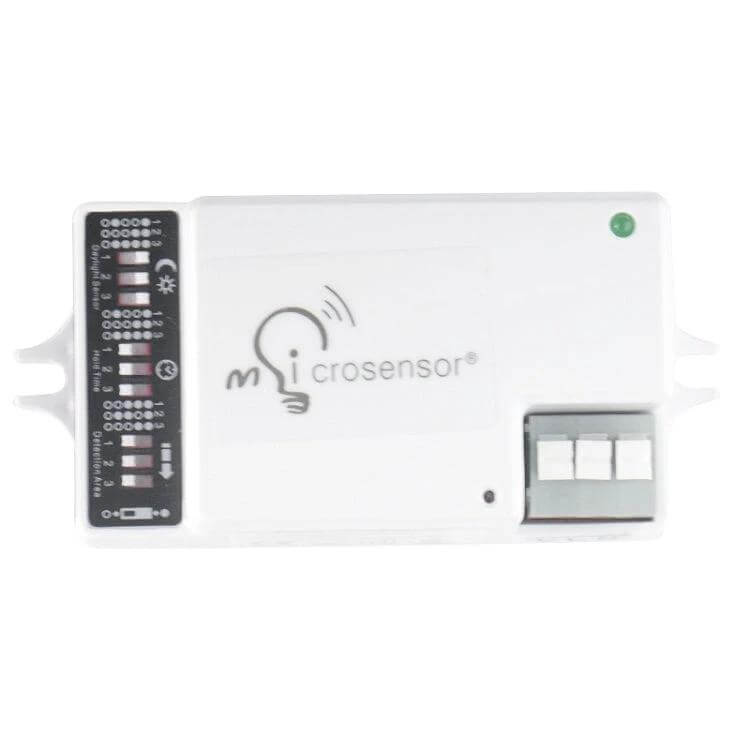

Adjustable light threshold: 5, 10, 30, 100 Lux or Disabled via rotary switch.
-
Delay settings: 5s, 15s, 3min, 5min, 10min to control hold time after detection.
-
Detection distance: up to 10 m with 10/30/50/80/100% sensitivity options.
-
Microwave sensor: 5.8 GHz ±75 MHz, < 0.2 mW output; 180° coverage.
-
Mounting & enclosure: IP20; ceiling or wall mount, install up to 2.5 m high.
-
Operation: load switching enabled only at night to prevent daytime activation.
Specifications (selected): detection angle 180°, max install height 2.5 m, IP20 enclosure.
Fit: installs on ceilings or walls up to 2.5 m; intended for outdoor road, garden and pathway lamps.
