Digital Vibration Analyzer BENETECH GM63B

Digital Vibration Analyzer BENETECH GM63B

The BENETECH GM63B Digital Vibration Analyzer is an essential tool for accurately monitoring and analyzing the vibration of various mechanical systems. Crafted with precision, this device utilizes the piezoelectric effect of artificial polarized ceramic, ensuring reliable performance for both industrial and general aviation applications.

Key Features:

• Multi-Dimensional Measurement: Capable of measuring acceleration, velocity, and displacement, making it versatile for a wide range of applications.

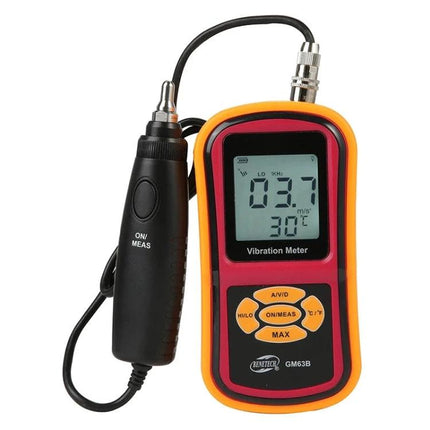

• User-Friendly LCD Display: Features a clear LCD screen that directly shows measurement results and operational conditions.
• Accurate Sensor Technology: Equipped with a high-sensitivity vibration sensor for precise measurements.

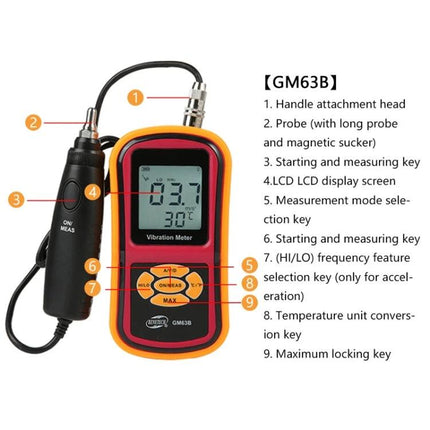

• Customizable Probes: Comes with two probes (S and L) to cater to different measurement needs, plus a magnetic probe for challenging conditions.
• Convenient Functions: Includes low battery indication, auto turn off, LCD backlight, and maximum value hold feature for ease of use.
• Temperature Range Selection: Offers temperature unit selection between Celsius and Fahrenheit degrees.

Specifications:

• Operating Temperature: 0 ~ 40 °C
• Temperature Range: -10 to 80 °C
• Operating Humidity: 30-90% RH
• Accuracy: ±5% ±2 digits
• Display Update Cycle: 1 second
• Power Supply: 9V 6LR6I battery (included) with a battery life of up to 20 hours of continuous use.
• Measurement Ranges:
  • Acceleration: 0.1 ~ 199.9 m/s²
  • Velocity: 0.1 ~ 199.9 mm/s (peak)
  • Displacement: 0.001 ~ 1.999 mm p-p
• Size: 145mm x 72mm x 35mm
• Weight: 229g

With its robust design and advanced features, the BENETECH GM63B Digital Vibration Analyzer is the ideal choice for professionals looking to enhance their vibration monitoring capabilities across various mechanical systems.
