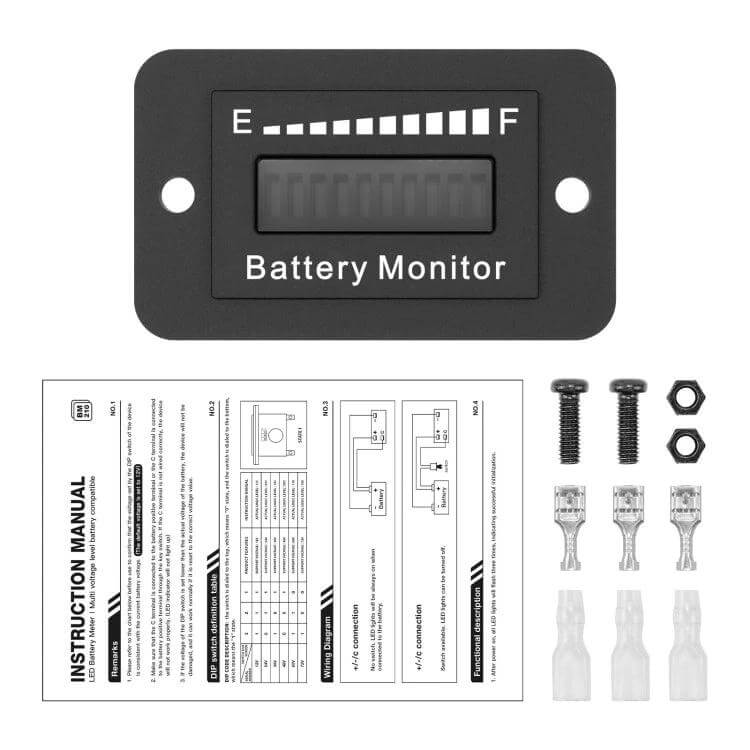

BM210 LED Battery Indicator is a compact, multi-voltage battery level monitor for electric vehicles and golf carts. It supports 12–72V systems and presents remaining capacity with a 10-segment LED readout.
Use it to monitor battery life in golf carts, EZGO and other electric carts, motorcycles, forklifts, club cars, and similar devices. On power-up, all LEDs flash three times to indicate successful startup and automatic voltage recognition.
- 10-segment LED bar uses 1 red, 2 yellow, and 7 green LEDs, showing 10% steps.
- Voltage range supports 12V, 24V, 36V, 48V, 60V, with 72V as an option.
- DIP switch aligns the indicator with the current battery voltage; default is 12V; non-shorting.
- Reverse connection protection helps prevent short circuits if polarity is connected incorrectly.

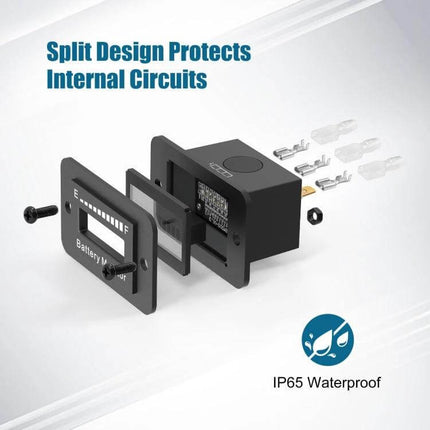

- IP65 waterproof and heat-resistant housing, low power draw, and automatic sleep mode.
- Self-contained unit with automatic voltage recognition for simple, reliable installation.
Specifications at a glance: 10 LED segments, IP65 rating, auto startup recognition, sleep mode for power savings.
Fit: Designed for dashboard installation in 12–72V battery systems found in golf carts and small electric vehicles.
