This compact brake tail light with integrated turn signals is a practical, single‑unit lighting solution for electric bikes and similar vehicles. It combines running, brake, and left/right turn signals in a smoked black lens.
Suitable for motorcycles, mopeds, ATVs, wheelchairs, and electric scooters. It mounts with 70 mm hole spacing and M4 screws for common frames.
- Four built-in functions: running light, brake light, left turn signal, right turn signal.

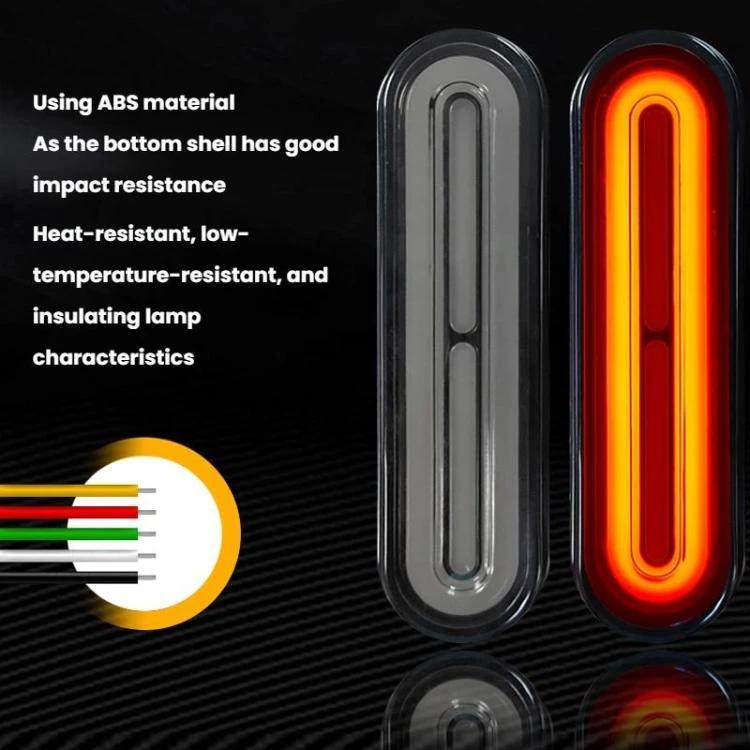

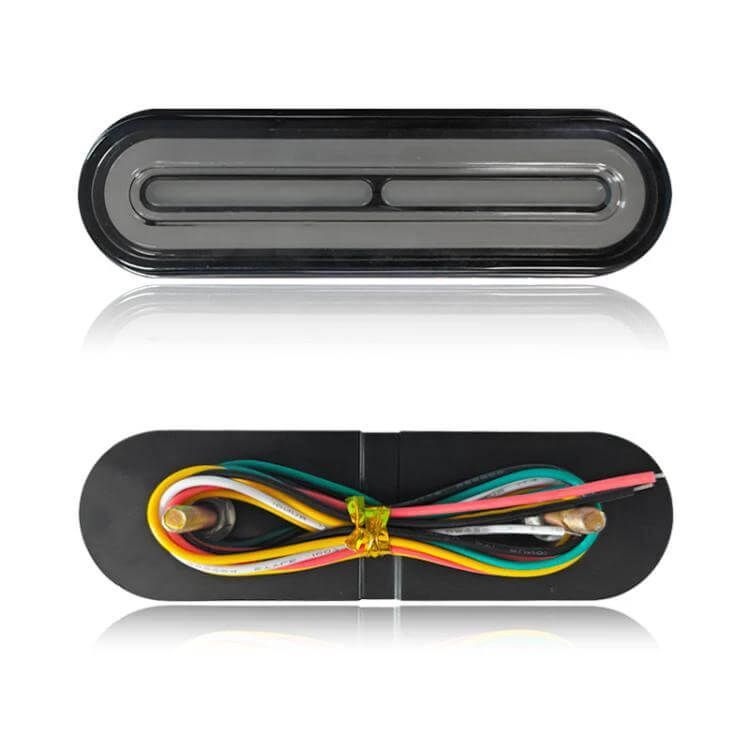

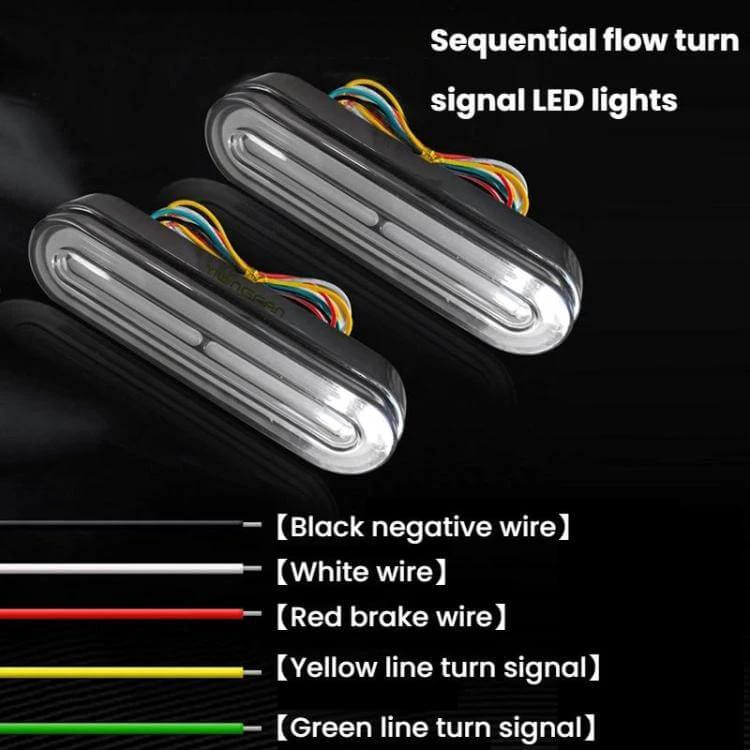

- Wiring: black negative; white run light; yellow left; green right; supports DC10–80 V.

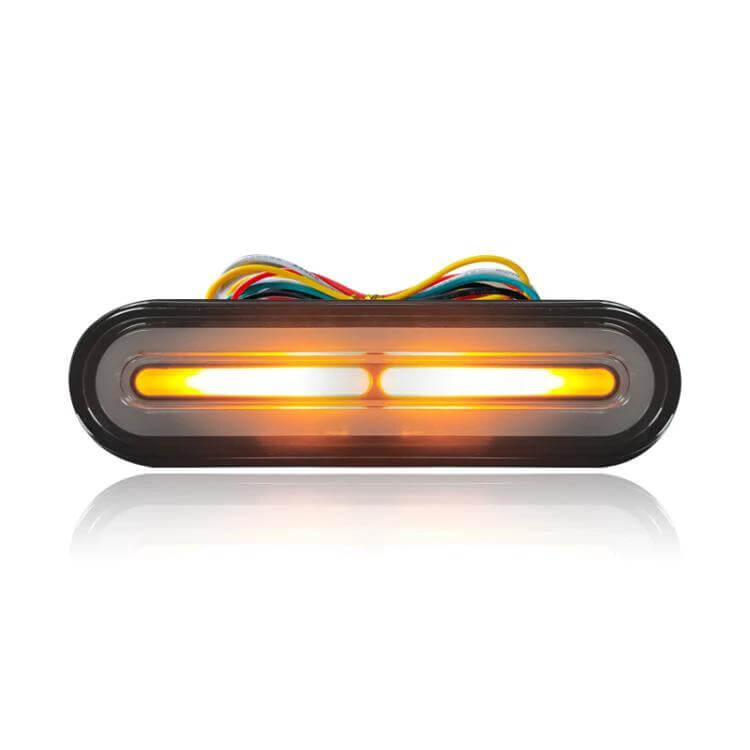

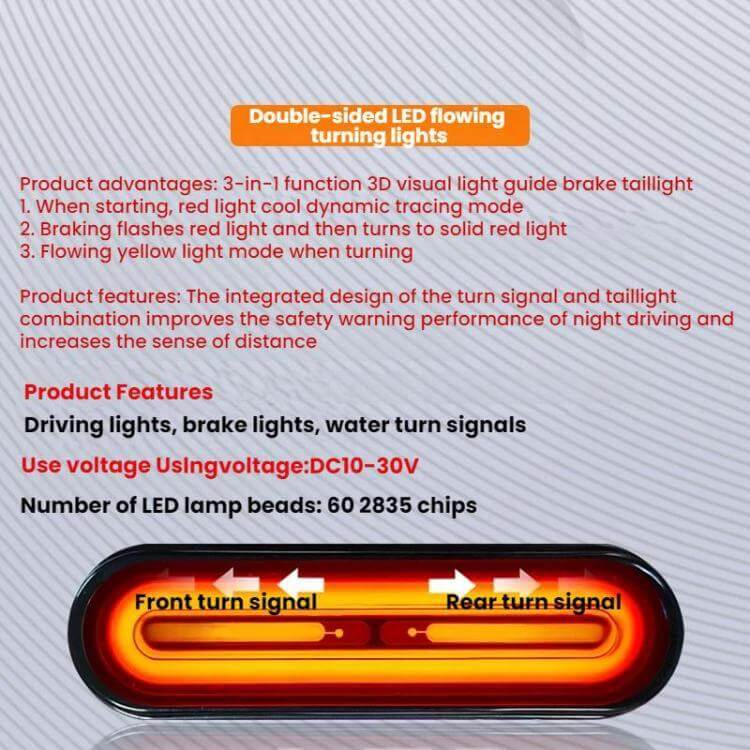

- Light behavior: red taillight with breathing/scanning when on; brake flash, then continuous on.

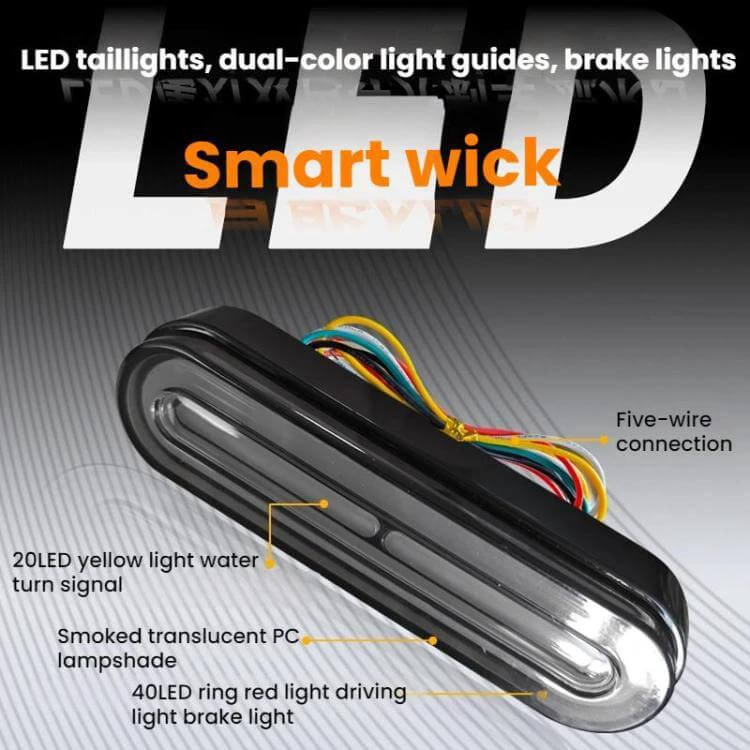

- Lens and LEDs: smoked black lens with hidden LEDs and 3D light‑guiding for a clear beam.

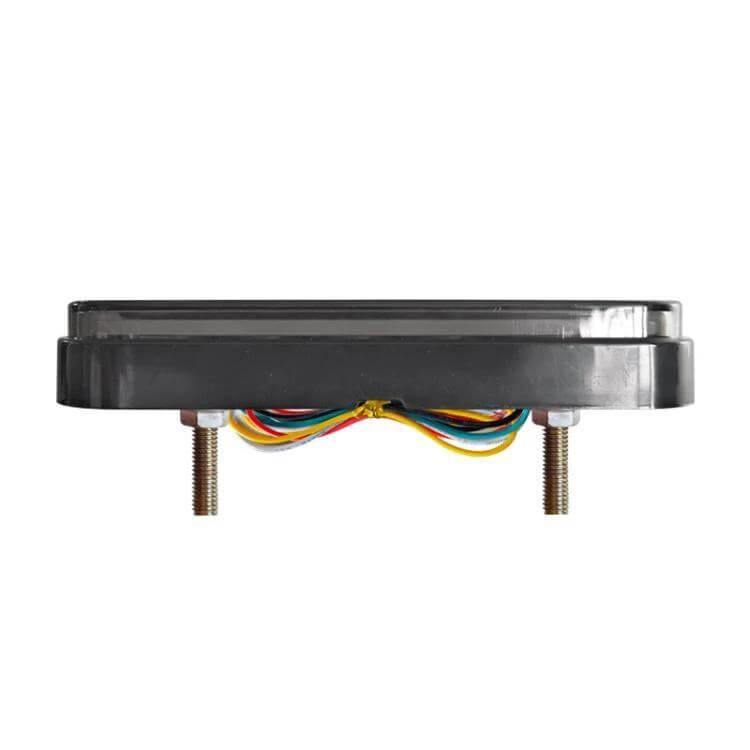

- Size and mounting: 125 mm long, 35 mm wide, 20 mm thick; screw holes spaced 70 mm; M4 screws.
- Lead length: power cord approximately 49 cm.
Light specs: input voltage DC10–80 V; running ~1.64 W, brake ~4.2 W, each turn ~1.5 W.
Fit: compatible with frames that accept 70 mm mounting spacing and M4 fasteners.
