The Car Battery Selector Isolator Rotary Switch provides a reliable way to manage power sources in vehicles, boats, and motorcycles.
Use it to isolate a primary battery, switch between power feeds, or simplify maintenance by ensuring a controlled OFF position.
-
Electrical rating: 32 V DC, up to 100 A max; suitable for motorbikes, cars, and ships.
-

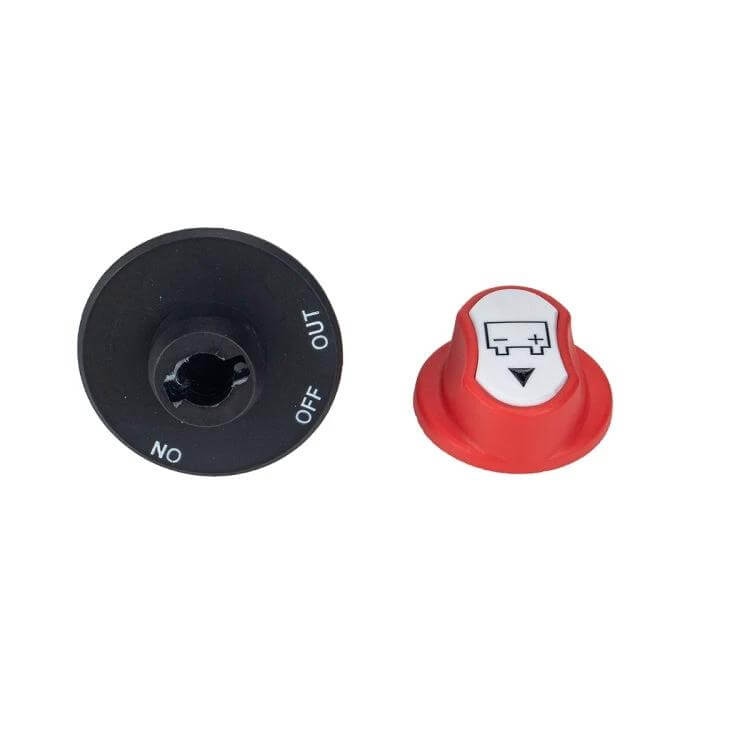

Functionality: ON-OFF (-OUT) switch with a removable cover in the OUT position.
-

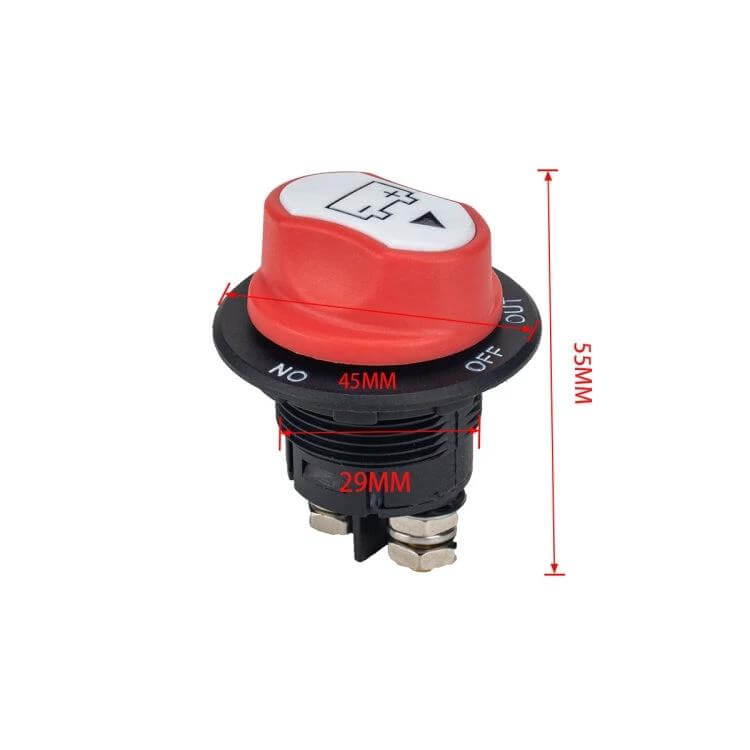

Mounting and dimensions: 29 mm mounting hole; supports panel thickness up to 11 mm; 6 mm wiring pins.
-
Durability and materials: ABS and PA66 housing with copper contacts for reliable performance.
-
Operating range: -30°C to +60°C for varied climates and setups.
Specifications: 32 V DC, 100 A max, 29 mm mounting hole, 6 mm pin diameter, panel thickness up to 11 mm, suitable for motors, vehicles, and boats under 32 V/100 A.
Fit: Designed for panels up to 11 mm thick with a 29 mm cutout; ideal where a single compact switch is needed to control power feeds.
