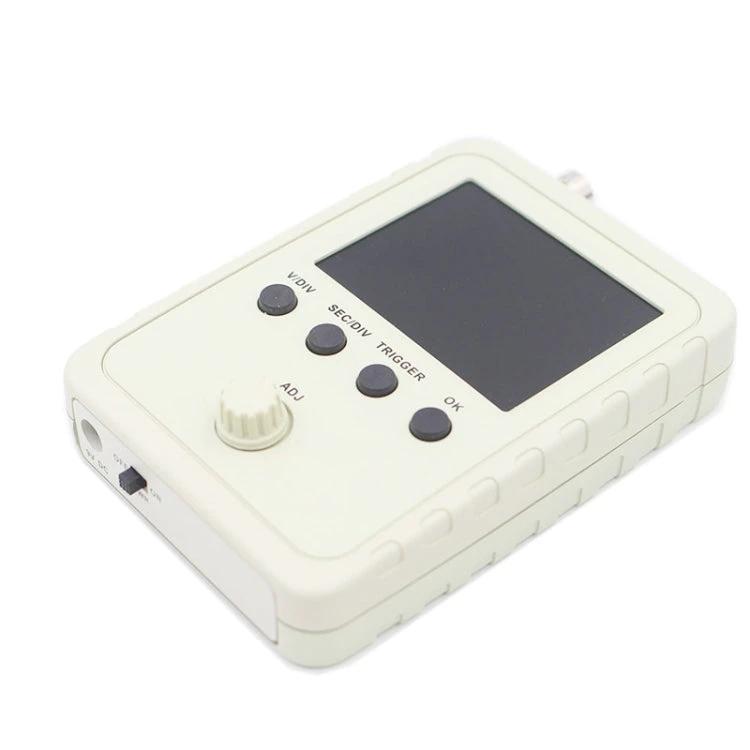

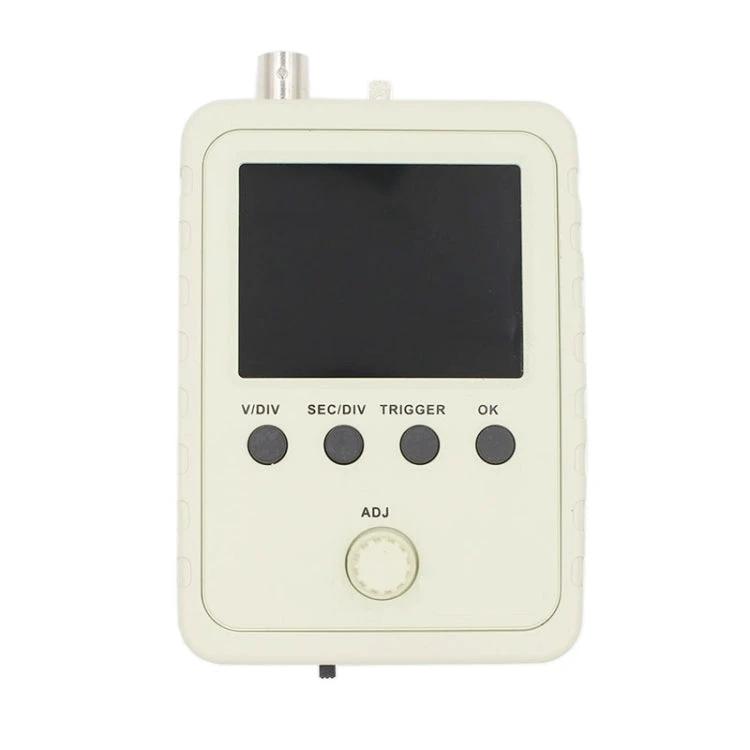

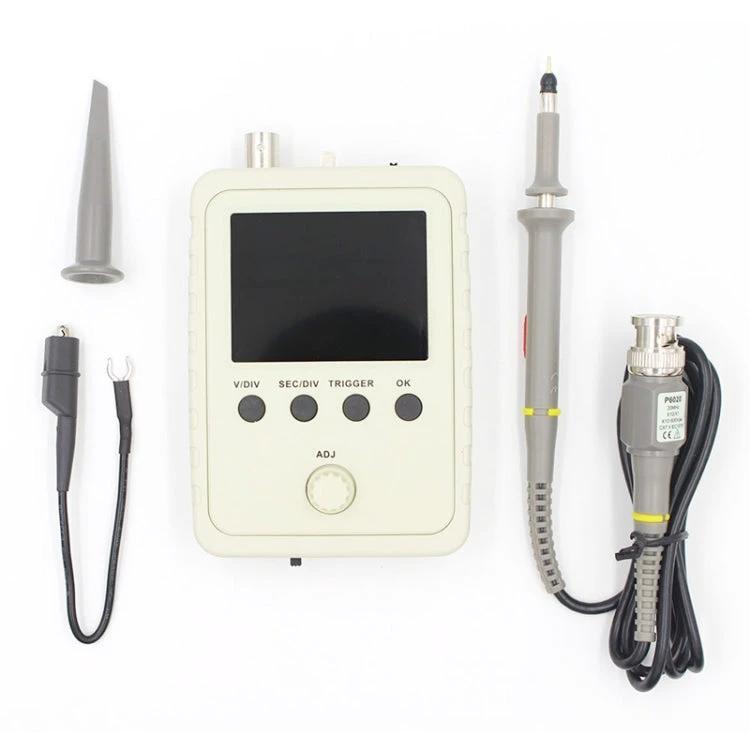

This compact oscilloscope serves as a practical tool for electronic signal measurement and testing, featuring a straightforward design for accurate waveform analysis.
In everyday use, it's helpful for hobbyists, students, or technicians debugging circuits, examining signal patterns in projects like Arduino setups or basic electronics repairs, without needing bulky equipment.
- Real-time sampling rate of 1Msps for capturing fast signals
- 12-bit accuracy and 0-200KHz analog bandwidth for precise measurements

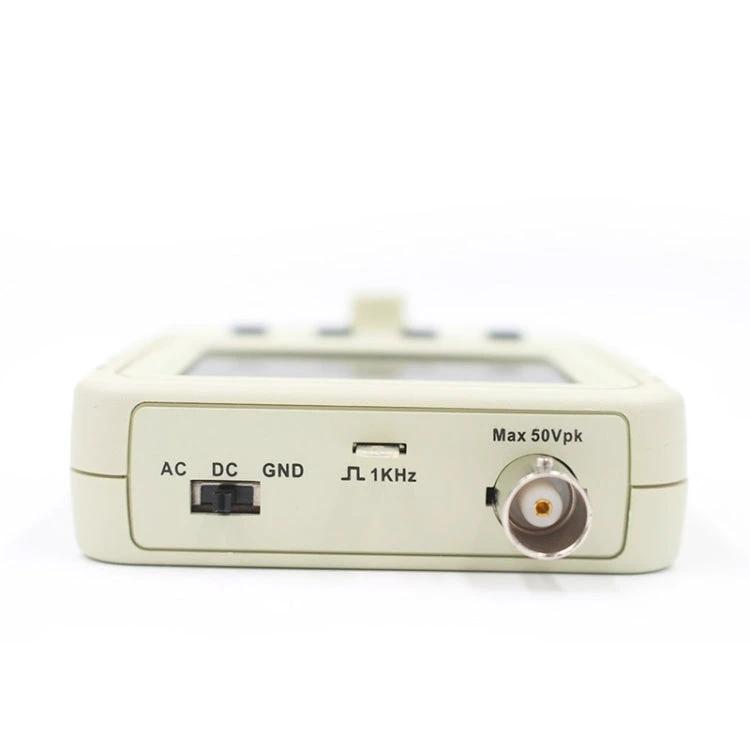

- Adjustable vertical sensitivity from 5mV/Div to 20V/Div, with DC/AC/GND coupling options
- Multiple trigger modes including auto, normal, and single shot for reliable waveform capture

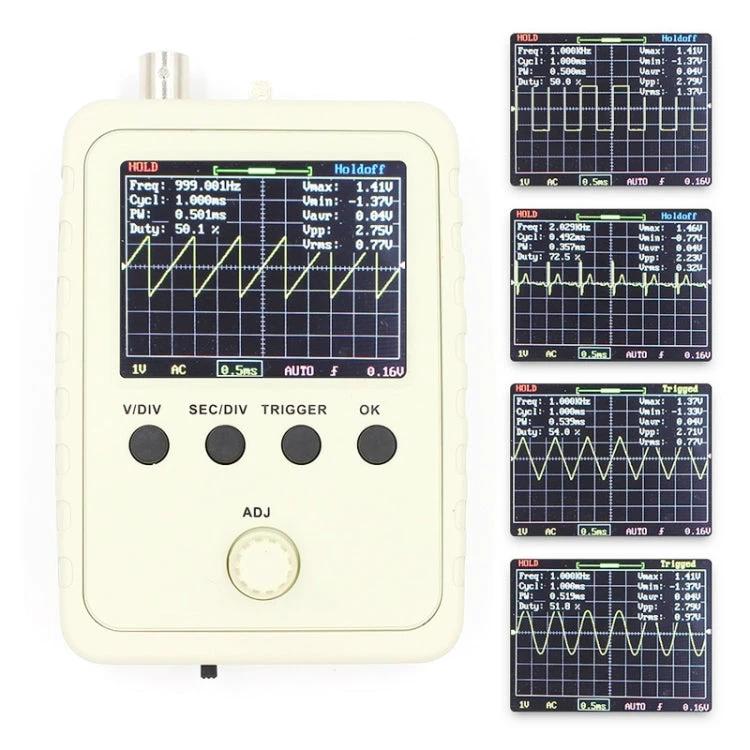

- Displays key parameters like frequency, period, and peak values for quick analysis
- Waveform save/recall function to retain data even after shutdown
Light specifications include a 1024-byte sampling buffer and 1MΩ input impedance. This oscilloscope fits well for portable, on-the-go testing in educational or DIY electronics scenarios.
