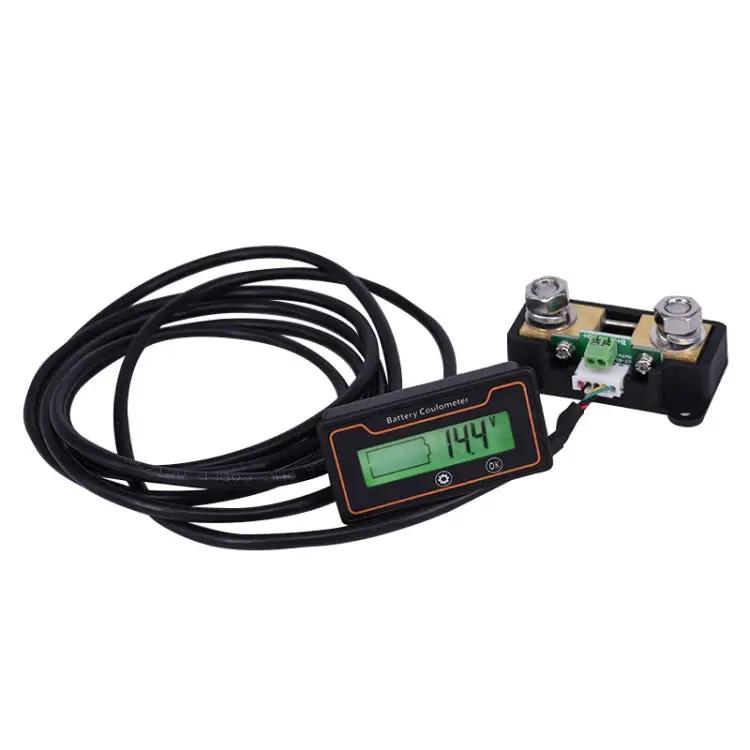

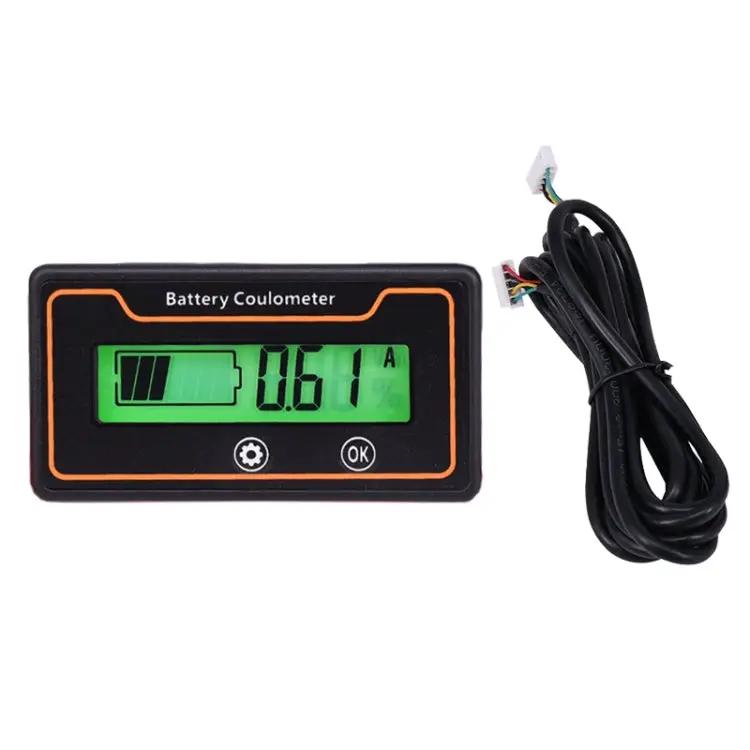

This digital battery charge meter provides accurate monitoring for lead-acid and lithium batteries, displaying key metrics to help users track performance effectively.
For applications like electric vehicles or solar setups, it offers real-time insights into voltage, current, and capacity, aiding in preventing unexpected battery failures by allowing timely checks during operation.
- Operates across a wide voltage range of 8.0 to 120.0 VDC for versatile use with various battery types.

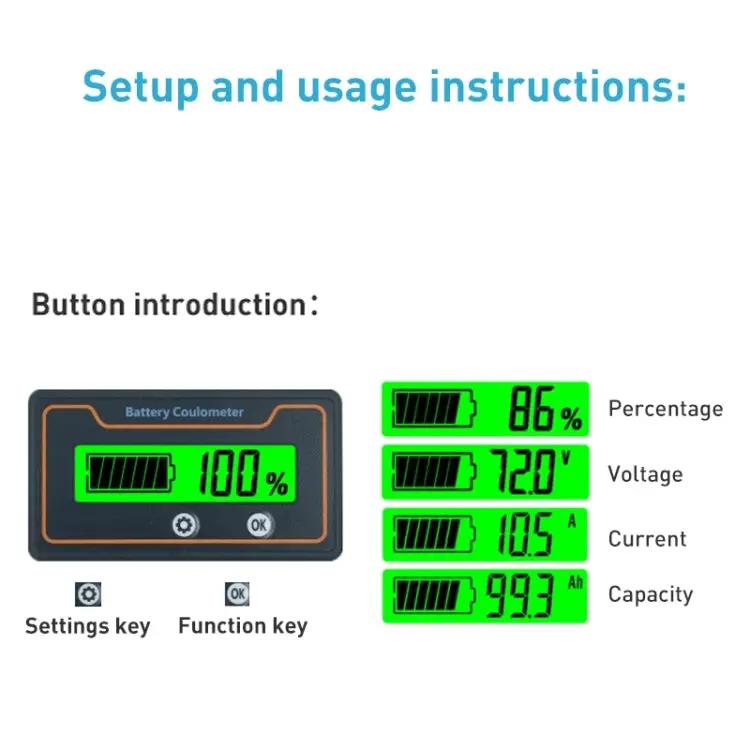

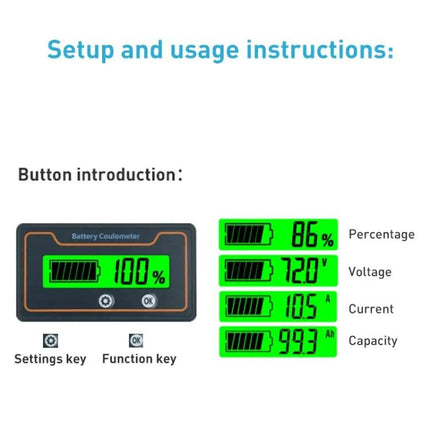

- Clear LCD display shows battery percentage, capacity, current, and voltage with resolutions down to 0.1% for detailed tracking.
- Includes auto sleep function that activates after 10 seconds of inactivity, reducing power draw to as low as 300 uA.
- Supports manual on/off and customizable settings like capacity and reset values for personalized monitoring.

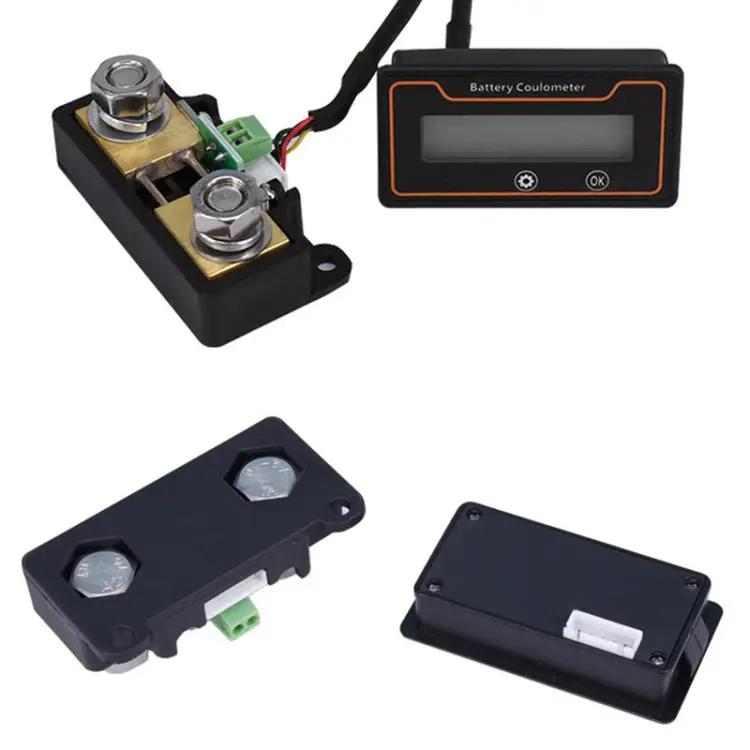

- Compact design measures 61.3 x 33.3 x 13.5 mm, fitting easily into tight spaces with a standard 58.5 x 28.5 mm mounting hole.
It suits users needing precise, low-maintenance battery oversight in mobile or stationary systems operating between -10°C and 50°C.
