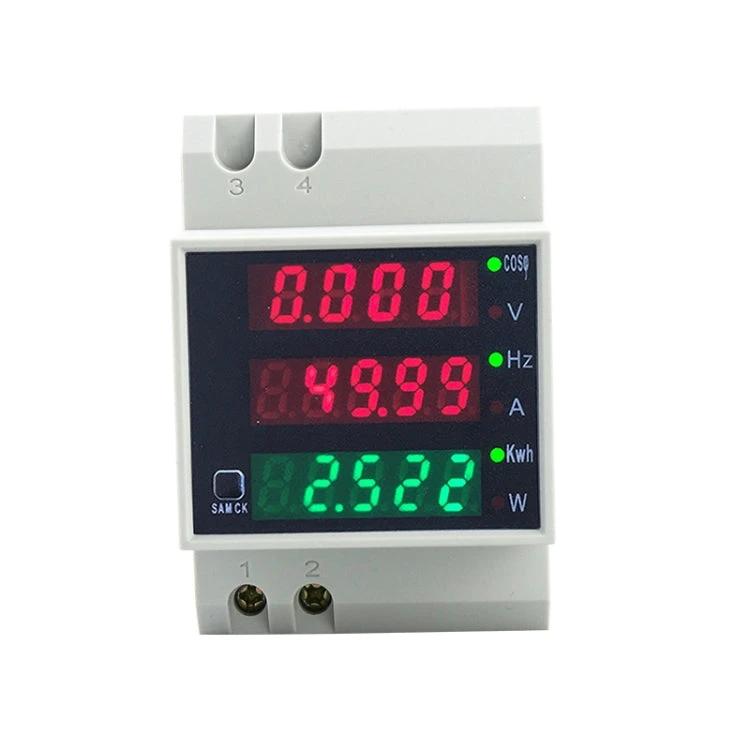

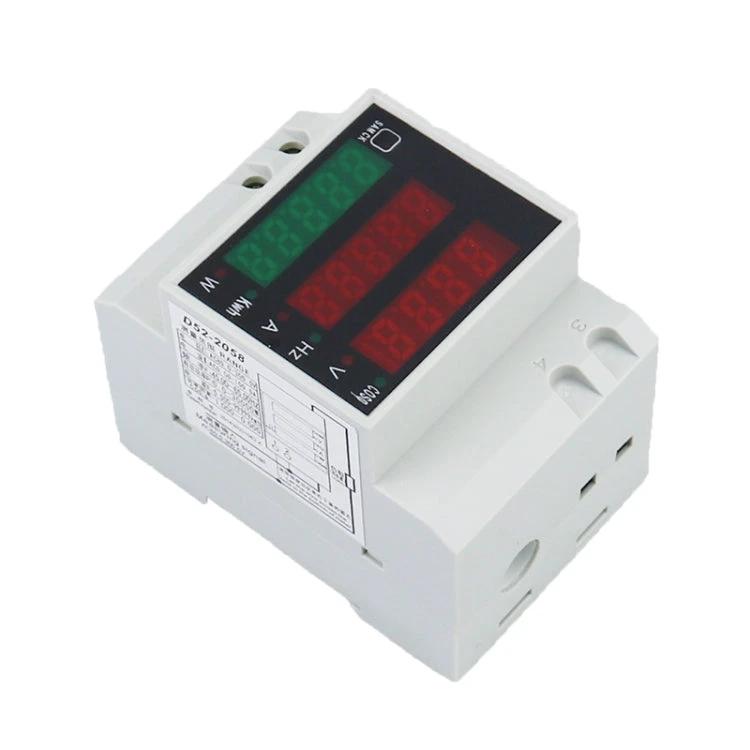

This DIN rail AC voltage and current monitoring meter tracks key electrical parameters in power systems, including voltage, current, and more.
In practical settings, such as industrial panels or home electrical setups, it helps users monitor real-time data to identify potential issues like overloads or inefficiencies, supporting better energy management decisions.

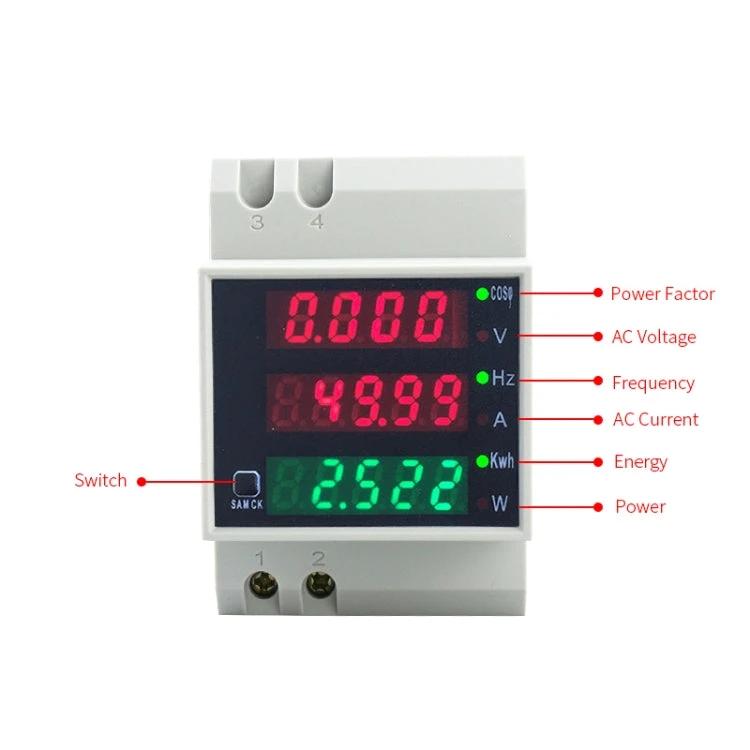

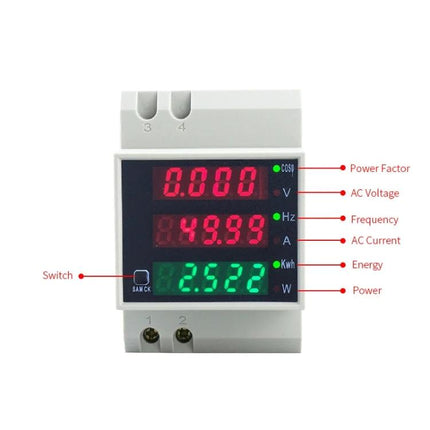

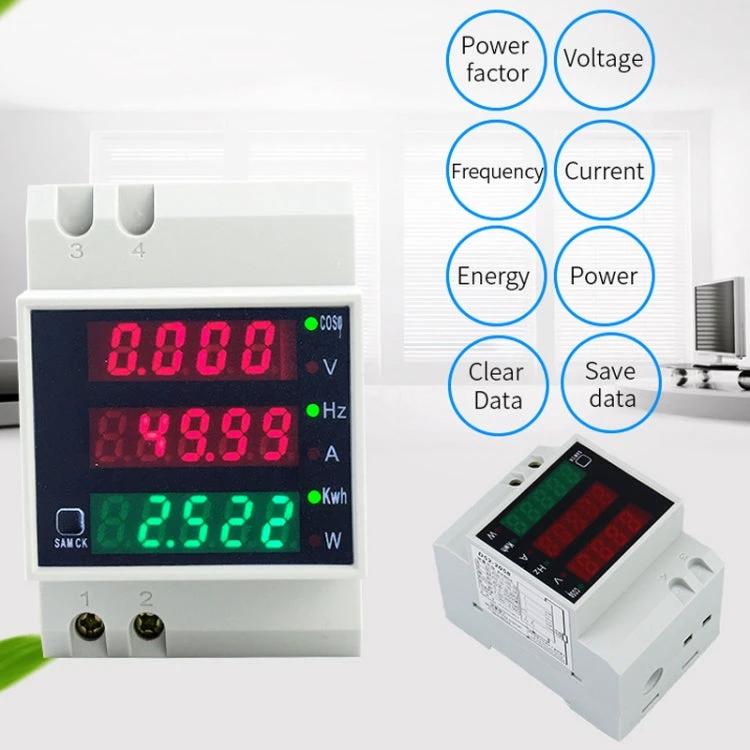

- Simultaneously displays AC voltage (80-300V or 200-450V), current (0-100A with automatic resolution switch), power factor, active power up to 45,000W, frequency (45-65Hz), and electrical energy up to 99999kWh
- Features a 1% +/- 2 digits accuracy for reliable readings
- Uses LED digital tubes for clear visibility: 4-digit red for voltage, 5-digit red for current and frequency, 5-digit green for power and energy
- Updates measurements approximately twice per second for timely insights

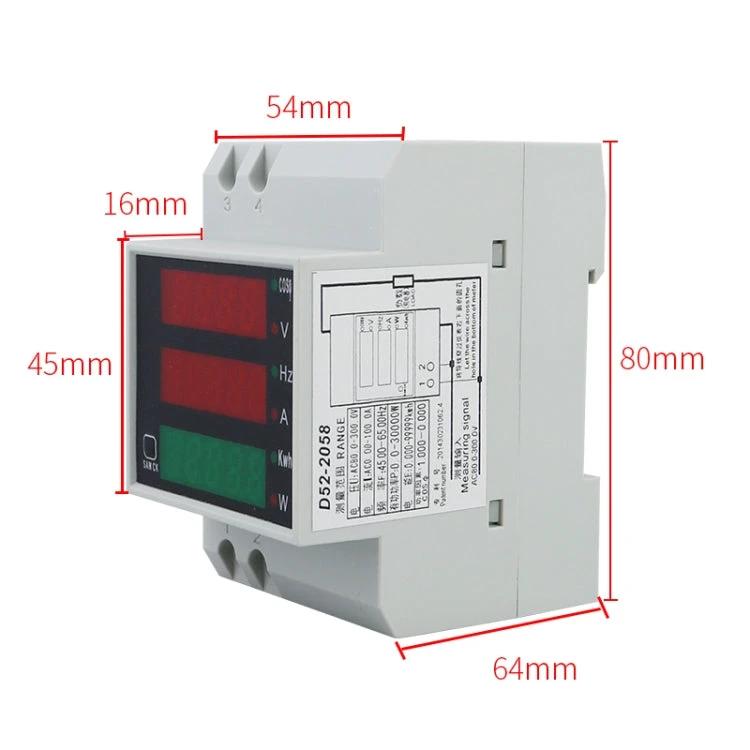

- Compact design with 145g weight, fitting the 3P air switch position for easy DIN rail installation
This meter suits applications where precise, multi-parameter monitoring is needed, such as in manufacturing or utility management, offering a straightforward tool for everyday electrical oversight.
