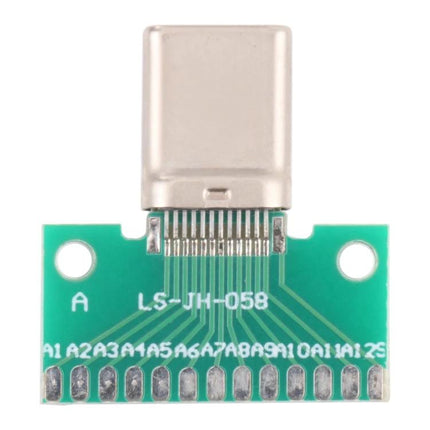

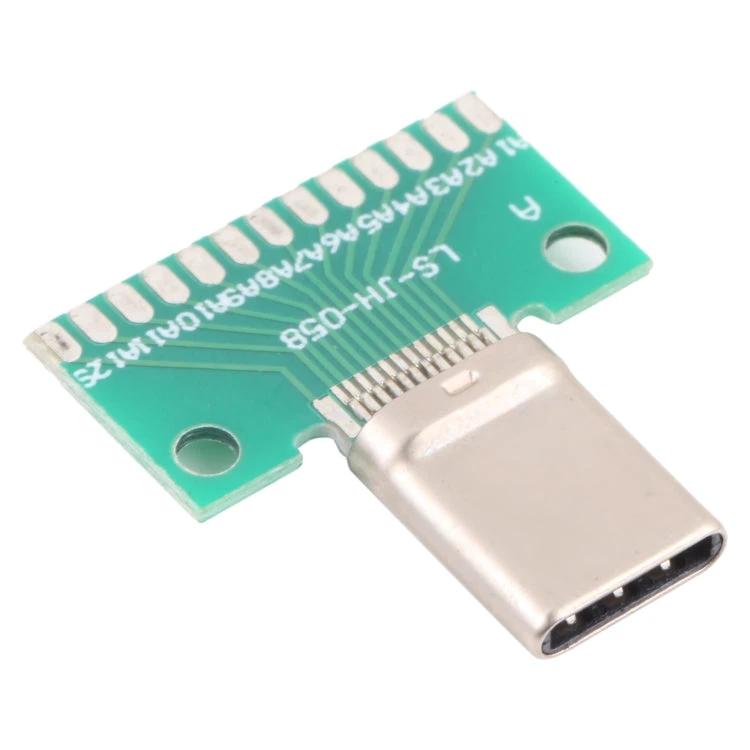

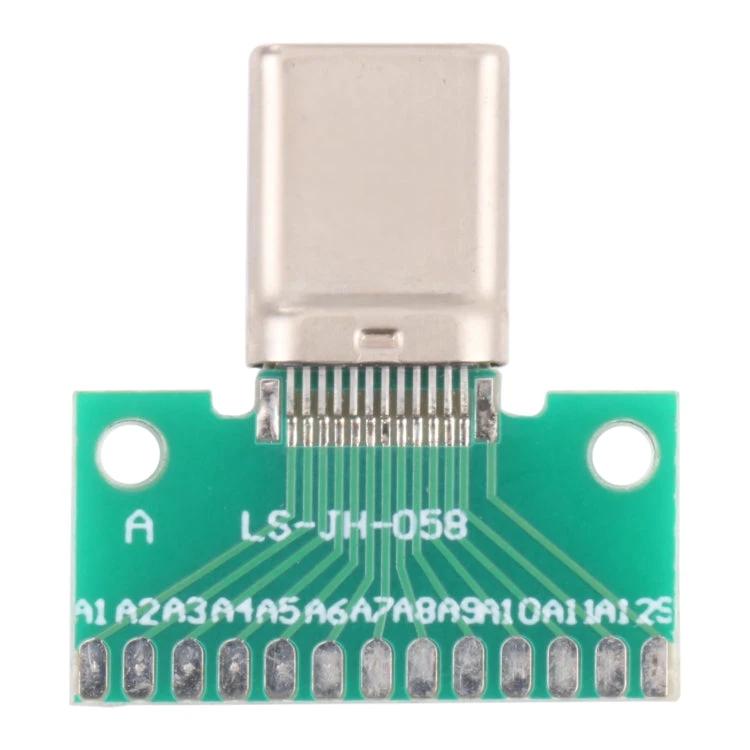

Double-Sided USB Type C Male Test Board is a compact diagnostic board for checking USB-C male connectors during electronics repair. The board provides a straightforward way to verify pin continuity, power rails, and basic signal paths without specialist software.
Use it on smartphones, tablets, laptops, and other USB-C devices when a port fails to charge, enumerate, or maintain a stable connection. It suits technicians and experienced hobbyists who need quick, repeatable checks in tight repair spaces.

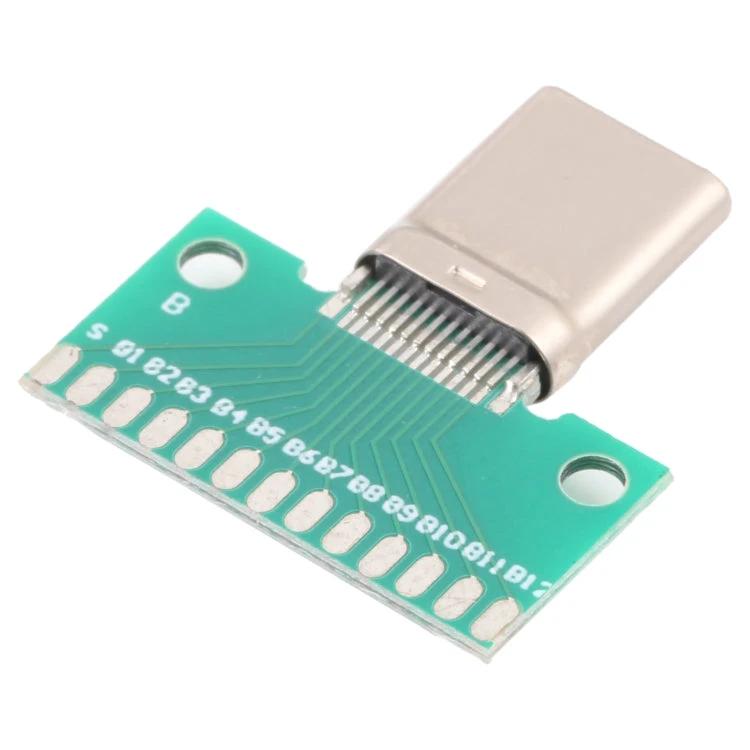

- Double-sided layout: test two USB‑C male connectors in one unit for faster comparisons
- Simple interface: no drivers or software required, visible test points for multimeter probes
- Compact size: fits into portable toolkits and crowded workbenches
- Compatibility: works with standard USB‑C power delivery and data configurations
- Durability: PCB and connector placement designed for repeated probe access

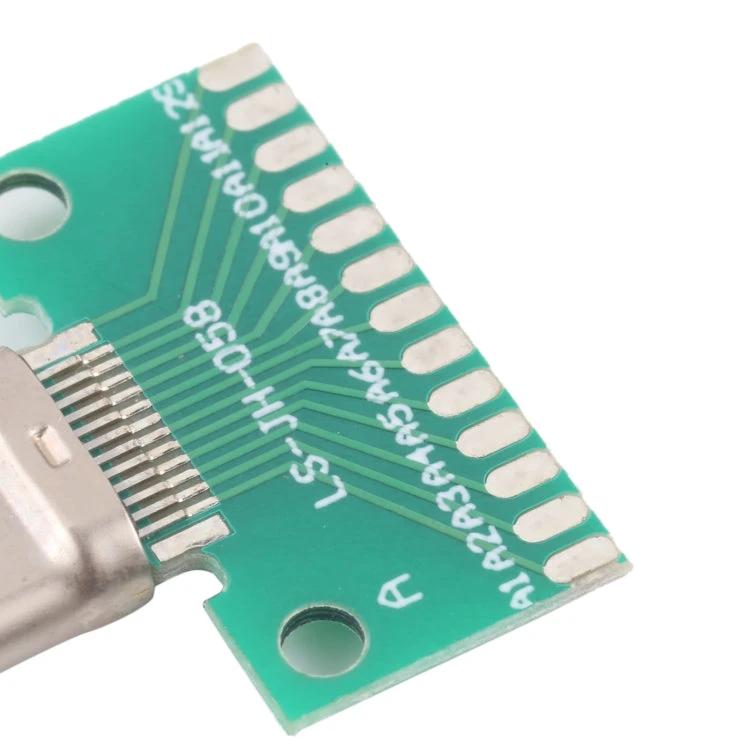

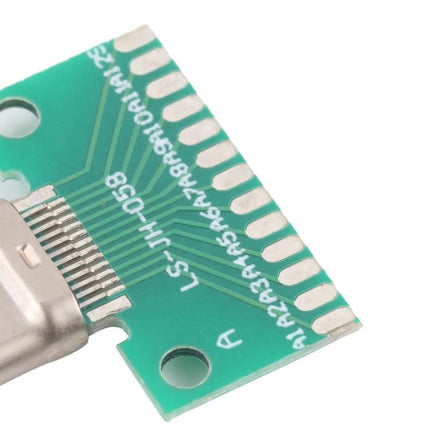

Light specifications: standard PCB size for toolkits; plated test pads; color: green.
Fit statement: suitable for repair benches and field troubleshooting where a basic USB‑C male connector check is needed.
