This eight-channel video balun enables efficient transmission of CCTV signals over twisted pair cables, helping to extend video feeds in surveillance systems.

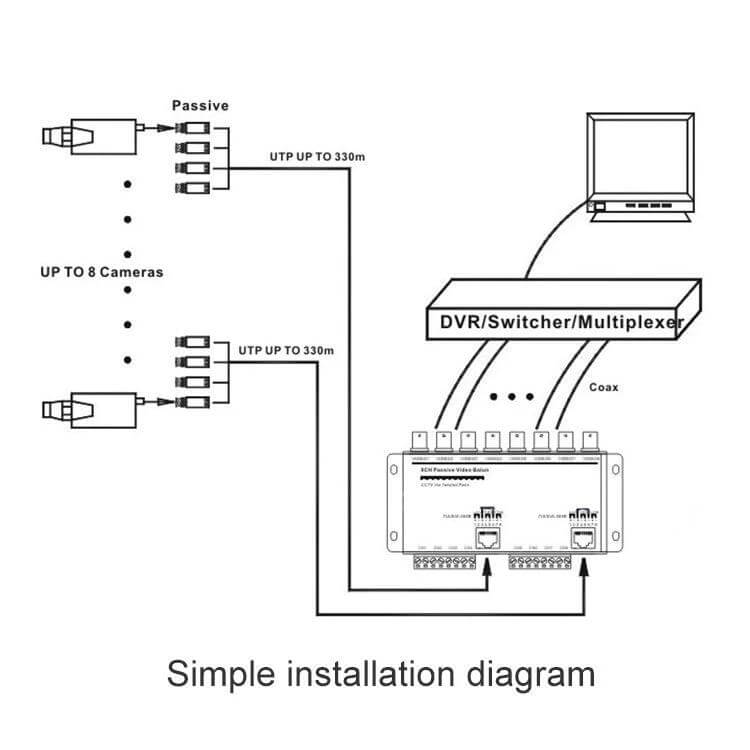

In a typical setup, such as a large office or warehouse, it allows you to send multiple camera signals through a single Cat-5 cable, reducing clutter and simplifying installation while maintaining signal integrity over distances.
- Differential signal transmission for strong anti-jamming performance, ensuring reliable video quality
- Supports transmission of up to four channels per twisted pair wire, potentially lowering cabling costs
- Delivers full-motion video up to 330 meters with passive transceivers or 1500 meters with active receivers
- No external power needed, with built-in protection against transients for added durability
- Compatible with NTSC, PAL, SECAM, and CCIR video standards
- Frequency response from DC to 8MHz and a CMRR of 60dB for consistent signal handling
With dimensions of 157 x 65 x 29mm, it fits neatly into standard CCTV configurations, making it a practical choice for professional monitoring applications.
