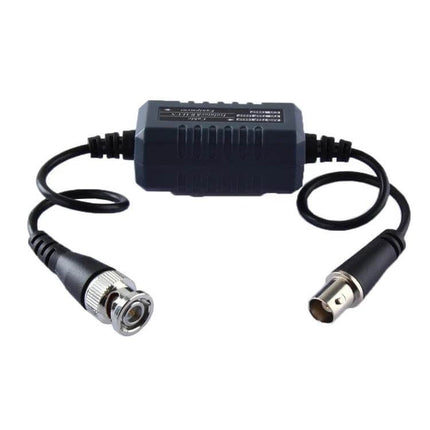

This ground loop isolator addresses common signal issues in HD CVI, TVI, and AHD video systems by isolating connections to prevent distortion.
In security setups, such as CCTV installations, it helps maintain stable video feeds by reducing interference from ground loops, ensuring clearer footage during power fluctuations or nearby cable disruptions.
- Compatible with CVI 1080P, TVI 720P/1080P, and AHD 720P/1080P; note it's not suitable for CVI 720P
- Features BNC male to BNC female connectors with 18cm mini cables on each end
- Passive design requires no external power, making it easy to integrate
- Eliminates picture tearing, crosstalk, and rolling for improved signal quality
- Includes built-in video filter and TVS for surge protection against transient voltages
- Offers 600VDC isolation to safeguard equipment from electrical interference
Key specifications include 0.5dB insertion loss and a frequency response of 20Hz-60MHz. This isolator fits well for users maintaining reliable video surveillance systems in environments prone to electrical noise.
