These 5x7 square headlights are built for everyday driving and easy upgrades in 5x7 housings.
Ideal for older Jeeps and classic cars that use 5x7 lamps. They replace halogen units and add daytime running lights and turn signals for visibility.

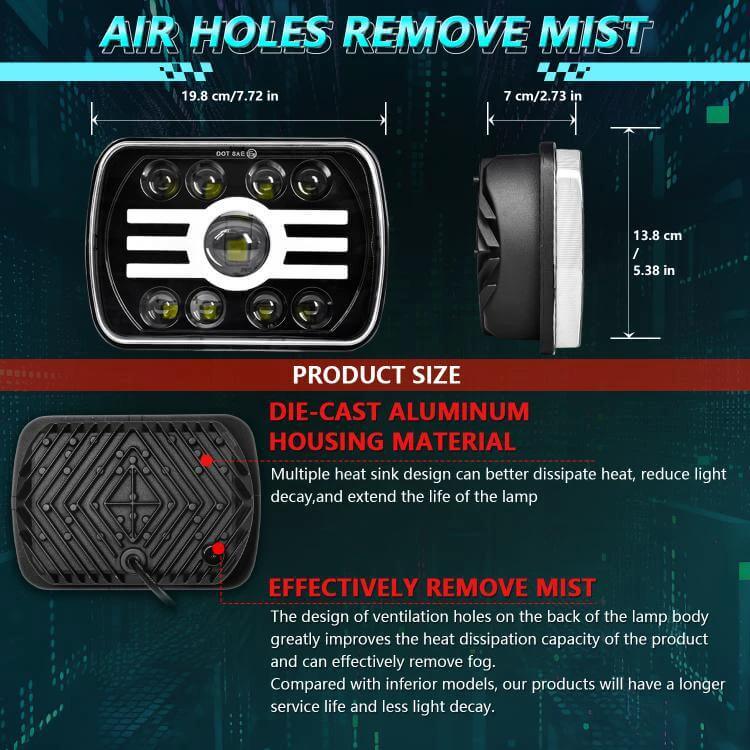

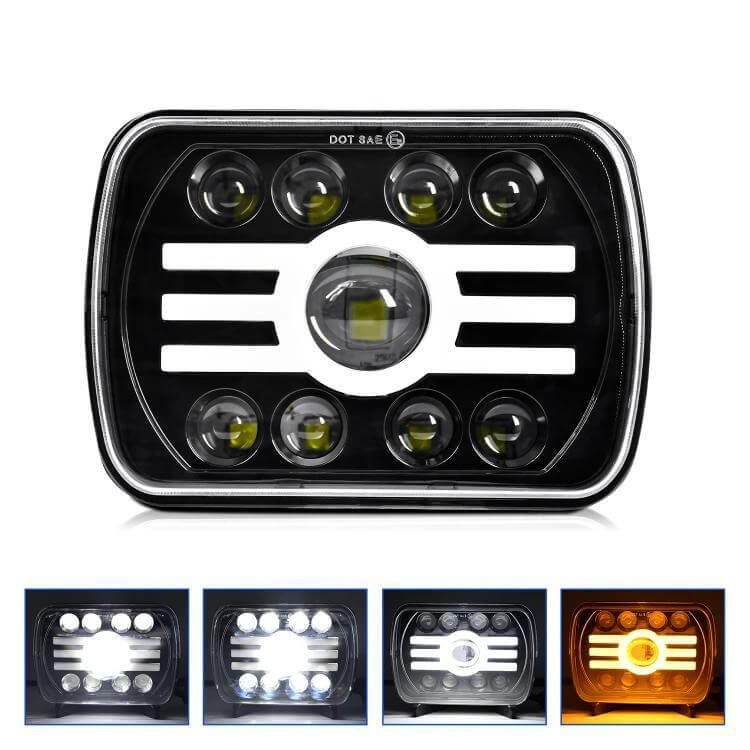

- 5x7 inch square design with die-cast aluminum housing.
- High-beam 32W/3200LM and low-beam 24W/2400LM for clear illumination.

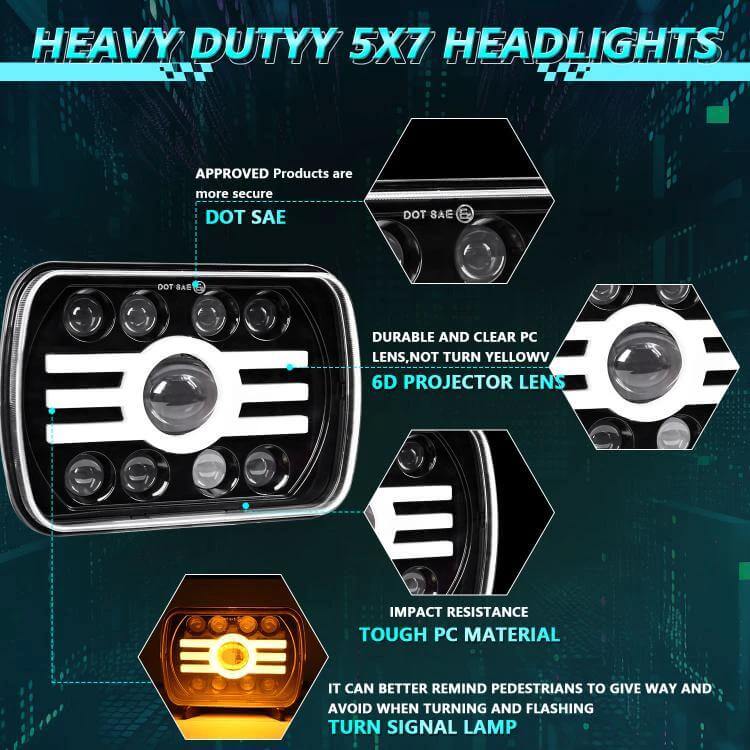

- Lens: 1 large focusing lens plus 8 small lenses for even light.

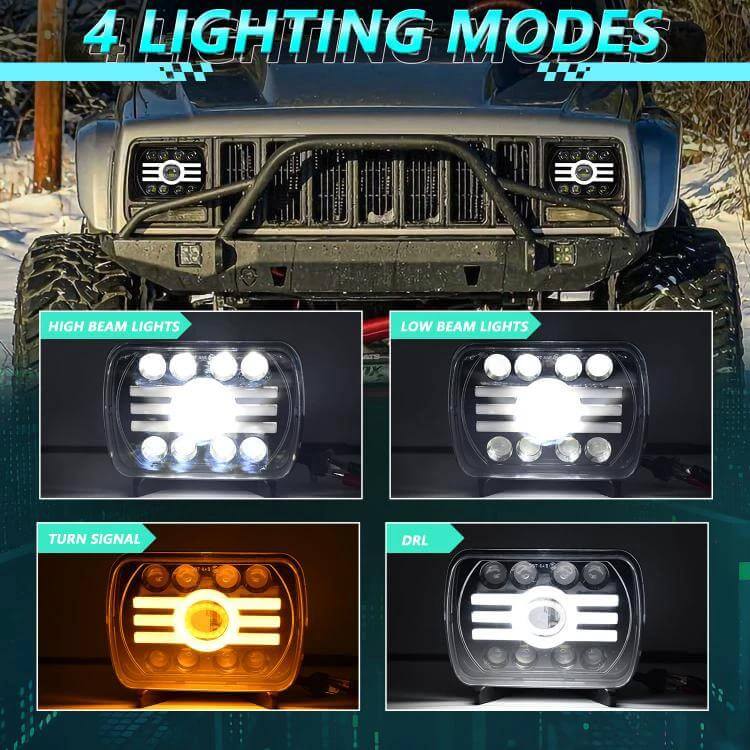

- Four modes: high beam, low beam, daytime running light, amber turn signal.
- IP68 rated with fish-fin heat sink and moisture seal.

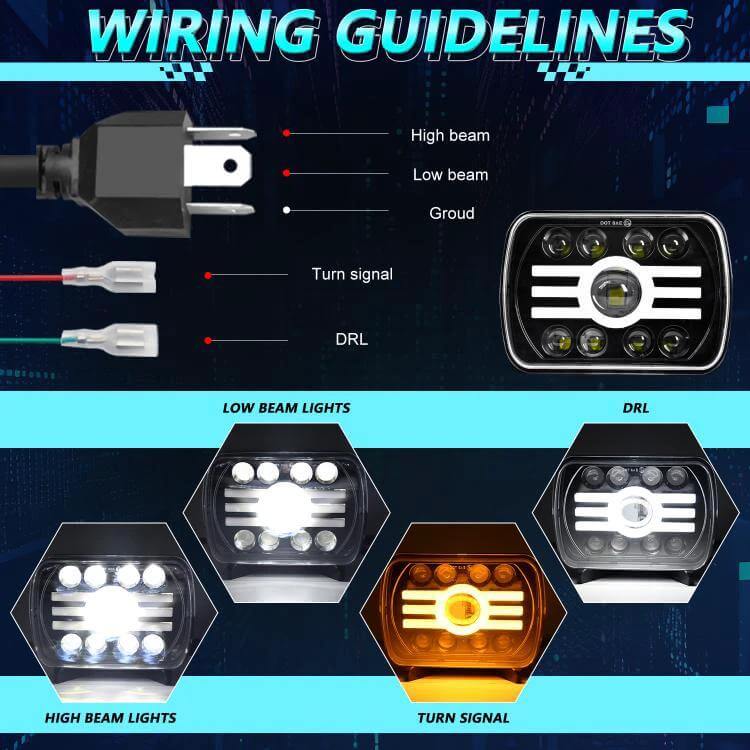

- H4 plug input; red DRL line; green turn signal; EMC to prevent flicker.
Specifications: Voltage 9–32V; High beam 32W/3200LM; Low beam 24W/2400LM; Color temperature 6000K / 3500K; Size 5x7 inches; IP68; Operating temp -40 to 150°C; Lifespan up to 200,000 hours.
Fit: Compatible with 5x7 inch mounting holes (including 86–95 Jeep Wrangler YJ, 79–01 Cherokee XJ, Ford E/F series, C4 Corvette, GMC Savana, Dodge W250). Some older Japanese brands may require a relay kit. Please verify your installation hole size before purchasing.
