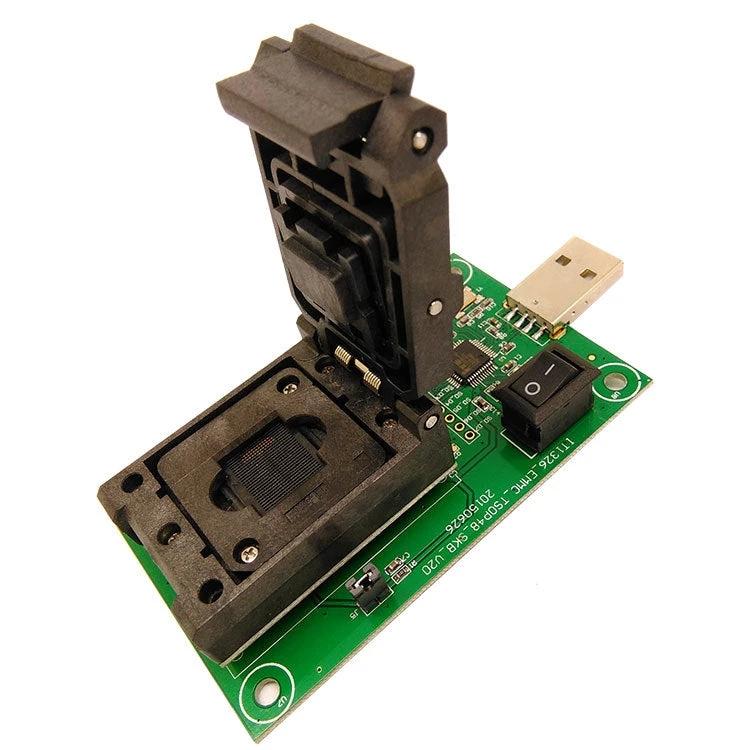

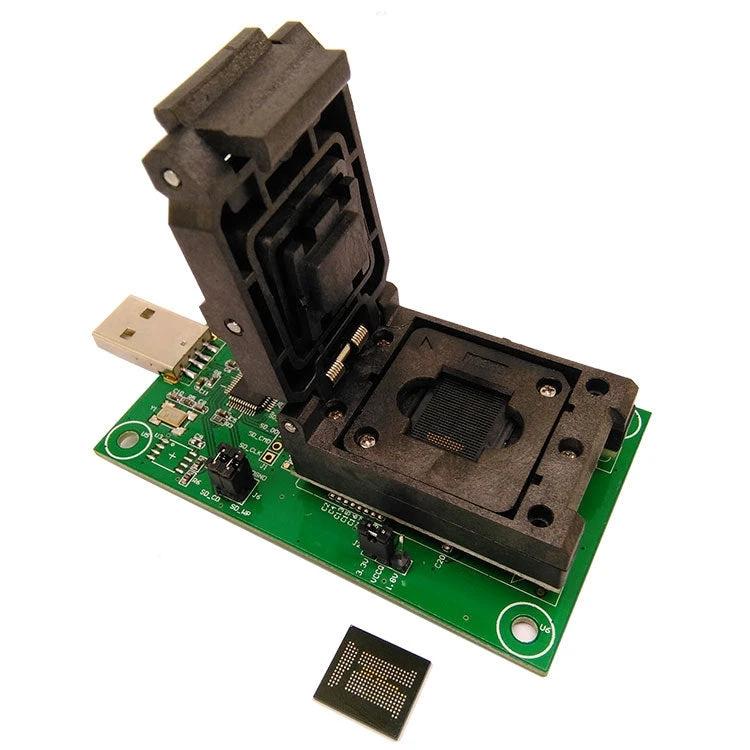

This IC test socket is designed for high-frequency testing and programming of integrated circuits, particularly for USB applications. It serves as a reliable tool for reading, writing, and verifying IC chips like EMCP221.
In a typical use case, electronics technicians or hobbyists can place the IC into the socket, connect it via USB to a computer, and run tests without soldering. This setup allows for quick iterations in development or repair scenarios, improving efficiency by enabling hot plugging and precise positioning.

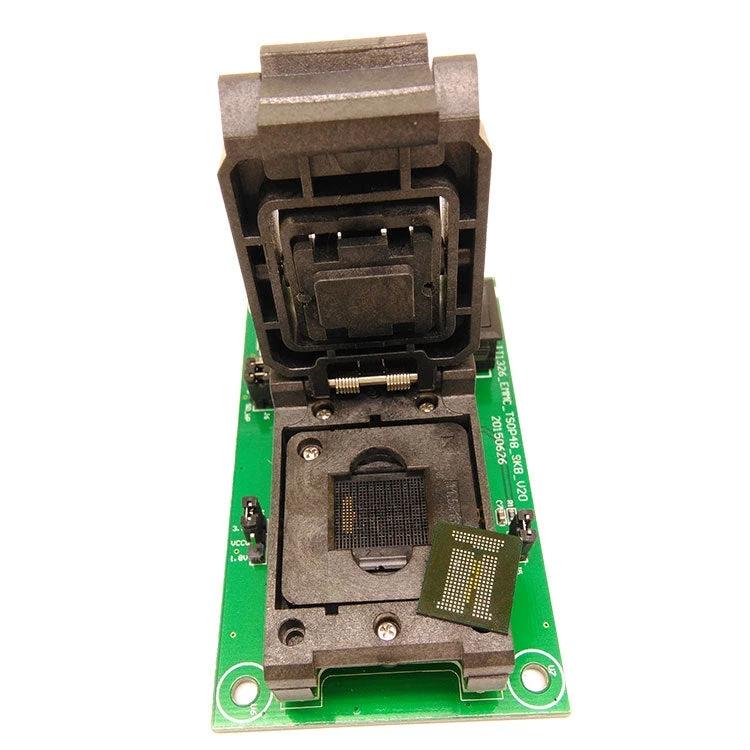

- Features a floating board structure for easy IC insertion and removal, reducing handling time.
- Constructed with beryllium copper shrapnel for contact points and PET for insulation, ensuring stable connections over repeated use.
- Supports compatibility with 186-FBGA and 162-FBGA packages, with a 0.5mm lead spacing.
- Includes a separate power switch and hot-plugging capability for safe, flexible testing.
- Offers a service life of up to 100,000 cycles, suitable for frequent professional use.
- Accommodates chips up to 11.5x13cm, eliminating the need for adapter board soldering.
This socket fits well for developers and engineers working on circuit testing, providing a practical solution for accurate and efficient IC evaluation in various electronic projects.
