The Intelligent RF Wireless Dimmable LED Strip Light Controller provides wireless PWM dimming for single-channel LED strips. It accepts 5–24V DC input and supports up to 6A load, enabling hands-off brightness control with a compact RF remote.

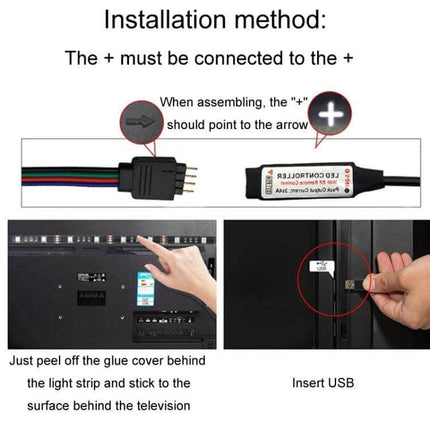

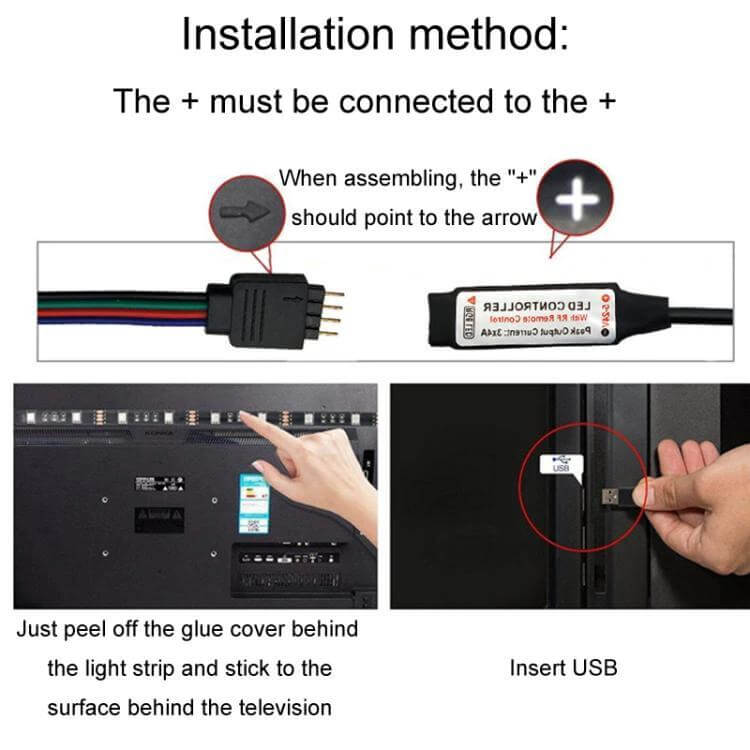

Use this controller for under-cabinet lighting, TV backlighting, or ambient zones where a single dimmed strip is needed. The RF remote removes line-of-sight constraints and the 1 m lead wire simplifies mounting behind furniture or inside cabinets.
-
Voltage compatibility: 5–24V DC (works with common 5V, 12V, 24V LED strips)
-
Load capacity: max 6A (5V ≤30W, 12V ≤72W, 24V ≤144W)
-
Dimming: PWM dimming via RF remote for smooth brightness control
-

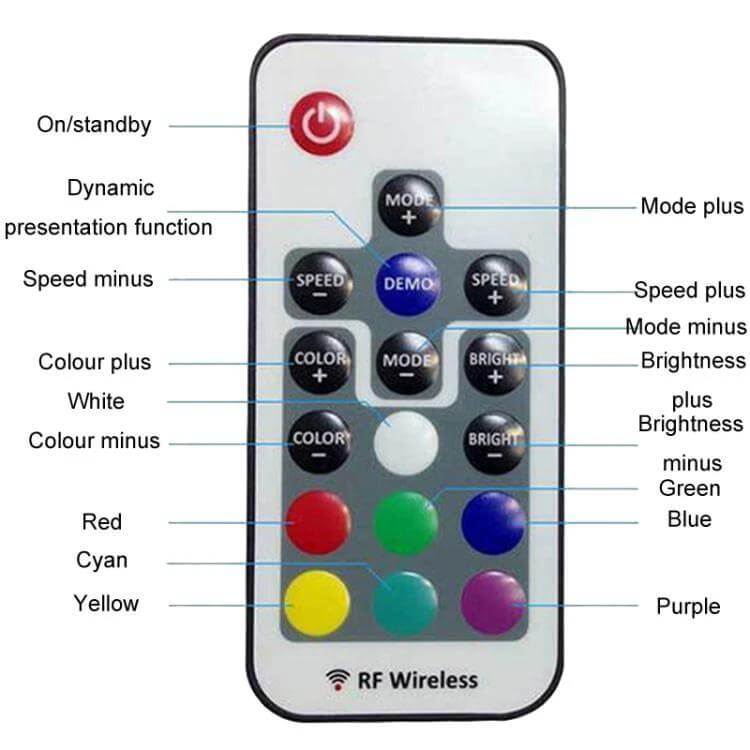

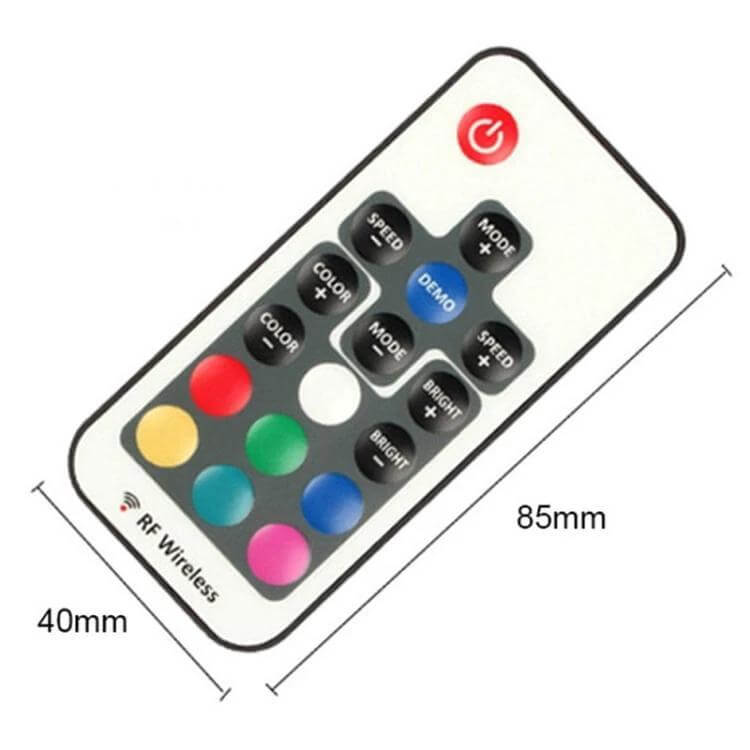

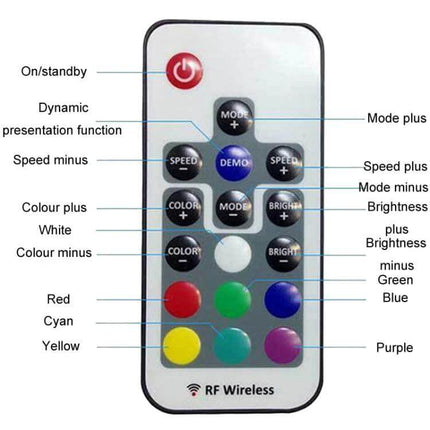

Remote: 86 × 40 × 7 mm, ~40 g; built-in button battery
-
Power draw: standby <1W
Specifications: operating temperature −20 to 60°C; wire length 1 m; single output channel.
Fit: Designed for indoor 5–24V LED strip installations in kitchens, living rooms, and home theaters requiring zone-specific dimming.
