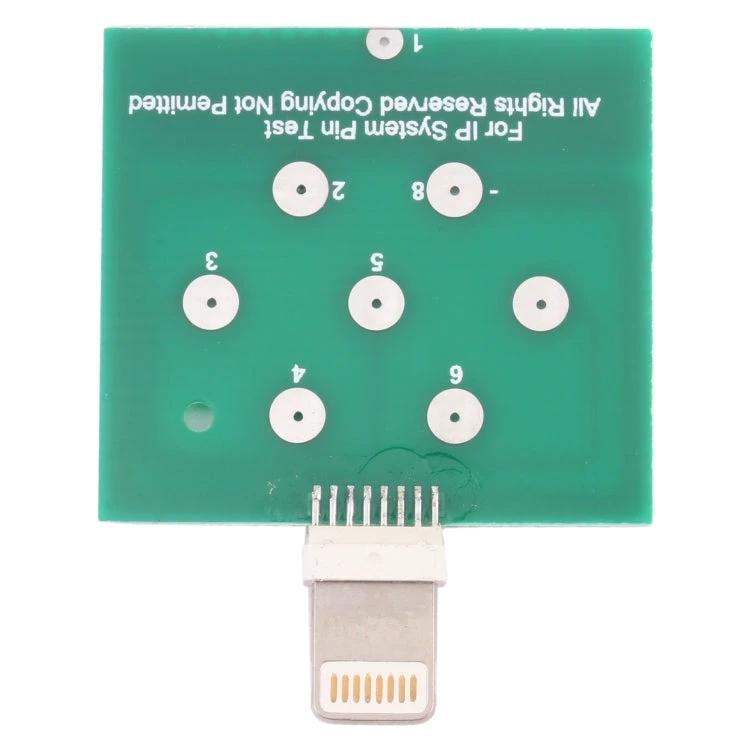

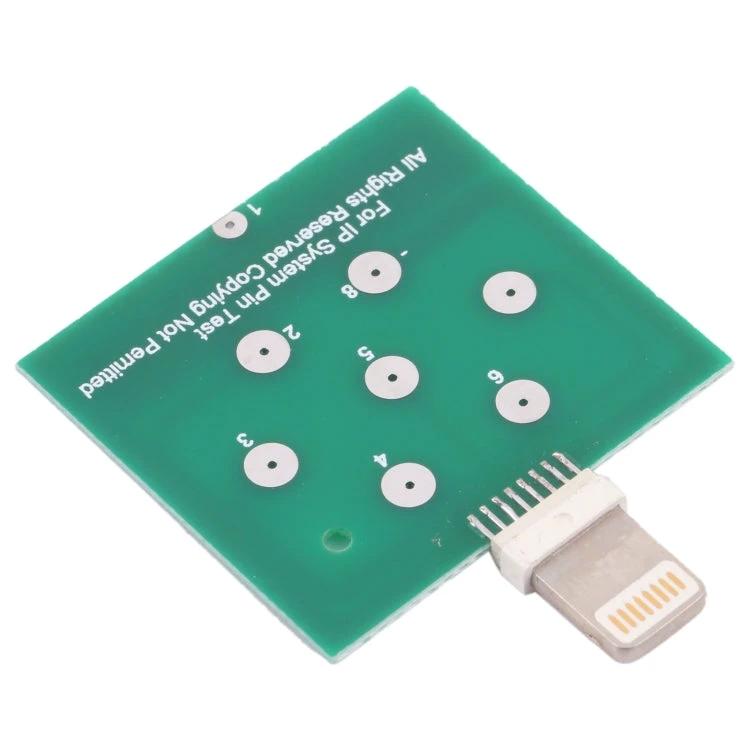

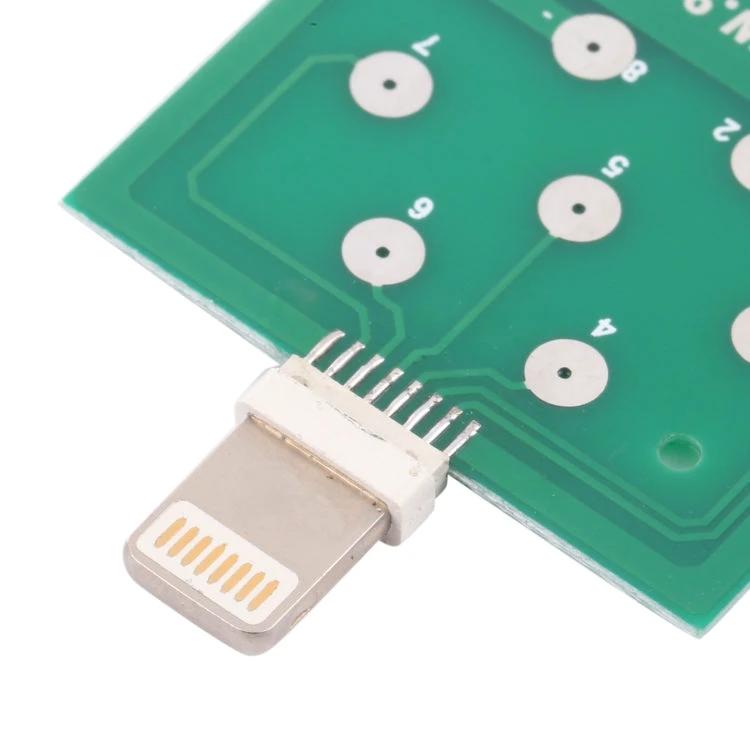

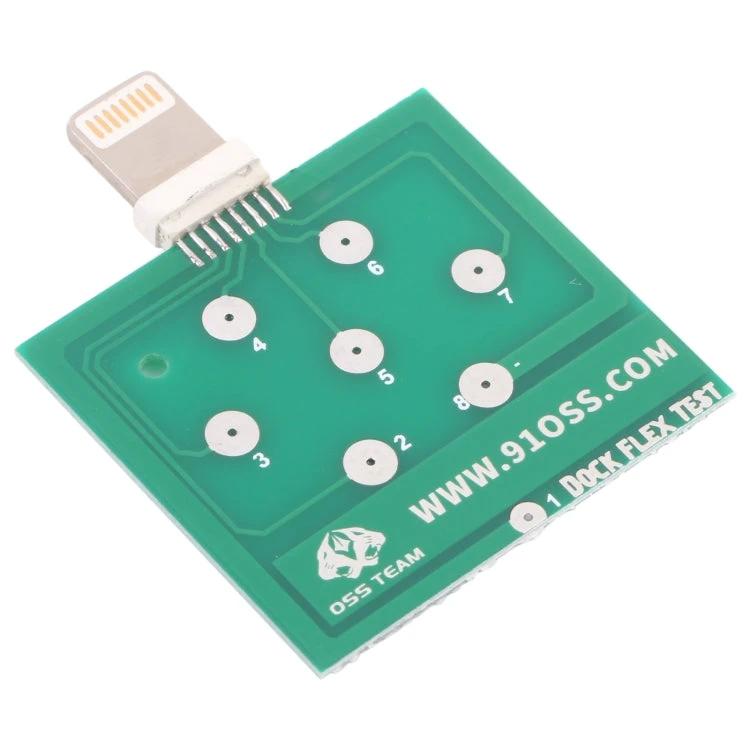

This iPhone 8 Pin Charging Port Diagnostic Tester Board provides a direct way to check charging ports and batteries without full disassembly. It connects to the phone's tail plug to isolate charging and power faults on 8‑pin iPhone models.
Use-case: technicians and mobile repair hobbyists use this board to quickly verify port continuity, detect loose or damaged pins, and assess battery response before committing to parts replacement. It reduces time spent on trial-and-error and clarifies whether issues are port- or battery-related.
-
Direct tail-plug connection — plugs into the device for immediate diagnostics.
-
Charging port test — checks continuity and pin contacts for common connection faults.
-
Battery testing — measures battery presence and basic voltage response.
-
Compact, portable design — small PCB fits in repair kits and pockets.
-
8‑Pin compatibility — designed for iPhone models using the 8‑pin tail connector.
Specifications (light): PCB tester board; material: FR4 fiberglass; color: green; dimensions: approx. 45 x 25 mm.
Fit statement: Intended for repair use on compatible 8‑pin iPhones; verify connector type before use.
