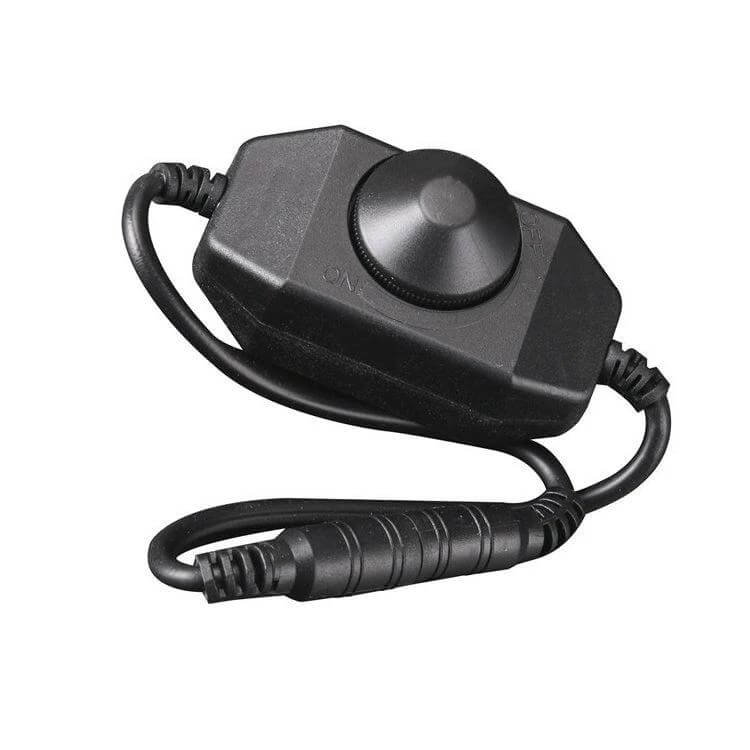

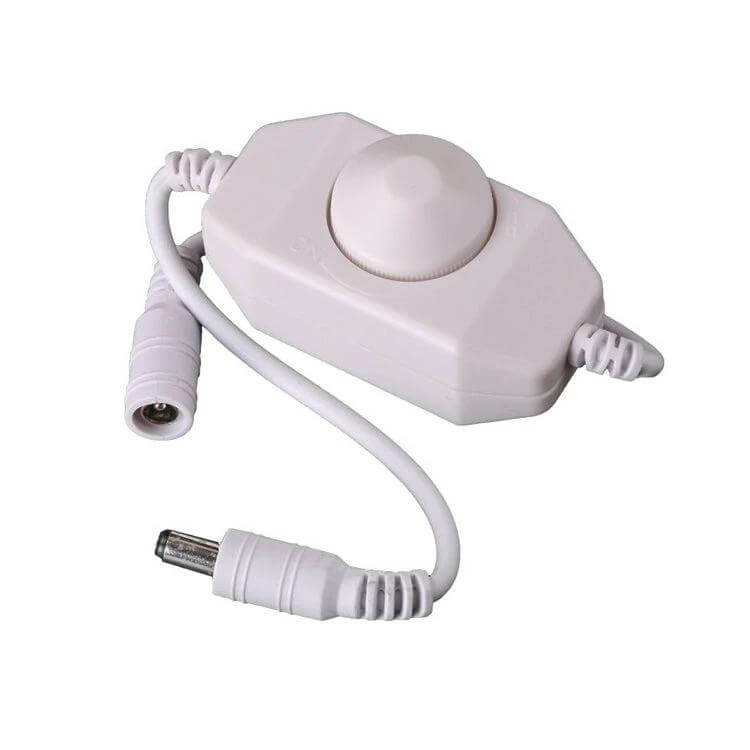

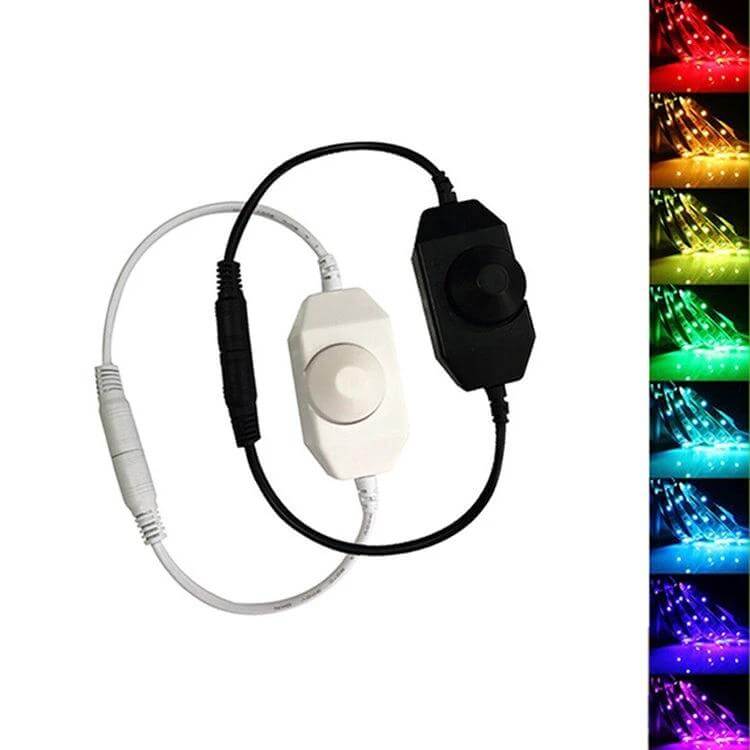

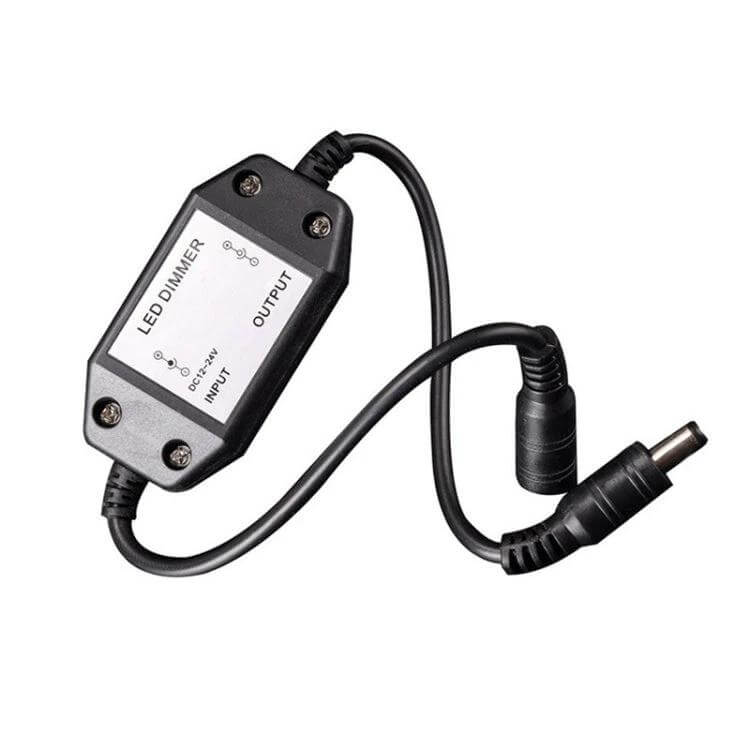

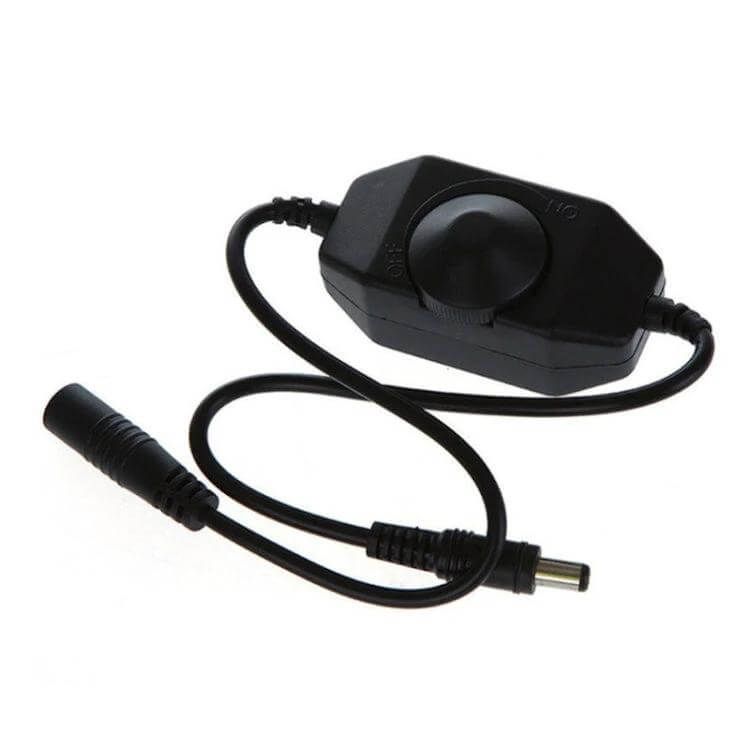

The Knob Controller Dimmer for single-color LED strip light provides manual, knob-based brightness control for 12–24 V DC LED strips in a compact, weather-resistant package.
Use it for under-cabinet lighting, display cases, signage accents or outdoor damp locations where a small IP65 controller is needed. Suitable for installers and DIYers who need steady, one-channel dimming without complex programming.
-
Input/output: 12–24 V DC input; one-way single-color output.
-
Load limits: Max current <6 A; output power: 5 V up to 30 W, 12 V up to 72 W, 24 V up to 144 W.
-

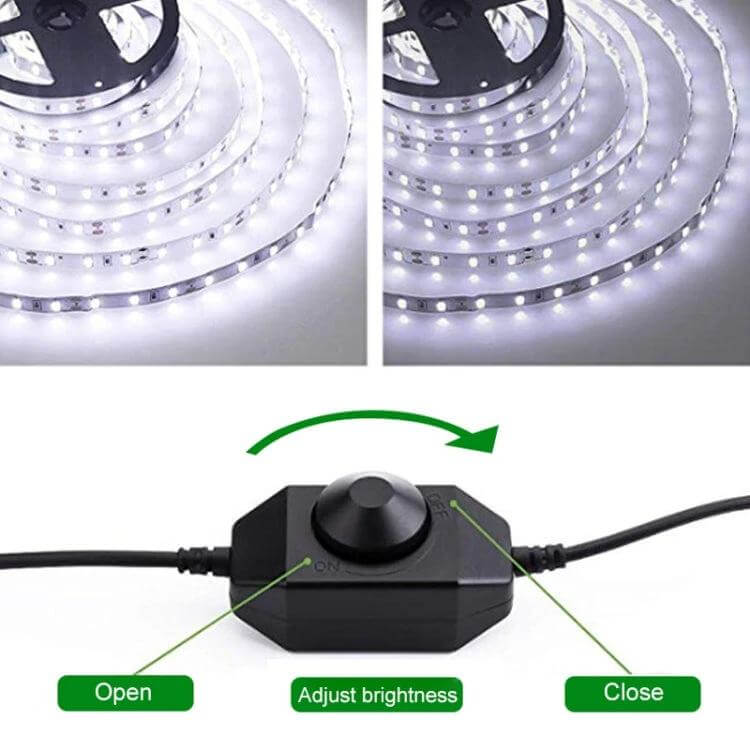

Control: Smooth rotary knob for continuous brightness adjustment.
-
Protection: IP65-rated housing for moisture resistance in damp or exposed spots.
-
Size & weight: 61 × 33 × 32 mm; 36 g—compact for tight installations.
Specifications: Static power <1 W; single-channel output; fits standard 12–24 V single-color LED strips.
Fit statement: Match the controller voltage and stay under 6 A total load; compatible with single-color LED strips and typical junction boxes or enclosures.
