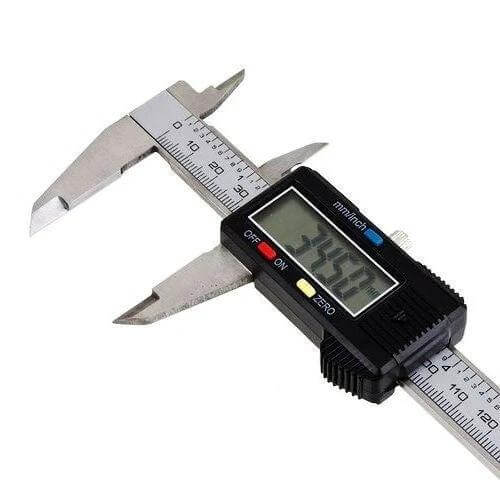

The LCD Digital Vernier Caliper provides precise measurements with a clear, easy-to-read LCD display. It supports metric and SAE units (0–150 mm / 0–6 in) with simple conversion.
Use it for quick checks of external diameters, internal bores, depths, and step features in metalworking, woodworking, electronics, or hobby projects.
- Range and units: 0–150 mm / 0–6 in with metric and SAE scales and easy conversion.
- Material and display: Hardened stainless steel body; large LCD for clear reading.
- Measurement types: External, internal, depth, and step measurements.
- Zeroing and lock: Zero at any position; locking thumb screw to hold the measurement.
- Precision and speed: Resolution 0.01 mm / 0.0005 in; accuracy 0.02 mm / 0.001 in (<4 in/100 mm); max speed 60 in/sec (1500 mm/sec).
Power and operation: One 1.5V LR44 or 1.55V SR44 button cell (included). Automatic turn-off conserves battery power. Operating temperature 0–40°C.
Fit and usage: Compact 150 mm scale fits in tool bags and pockets and is suitable for parts up to 150 mm (6 in) in length.
