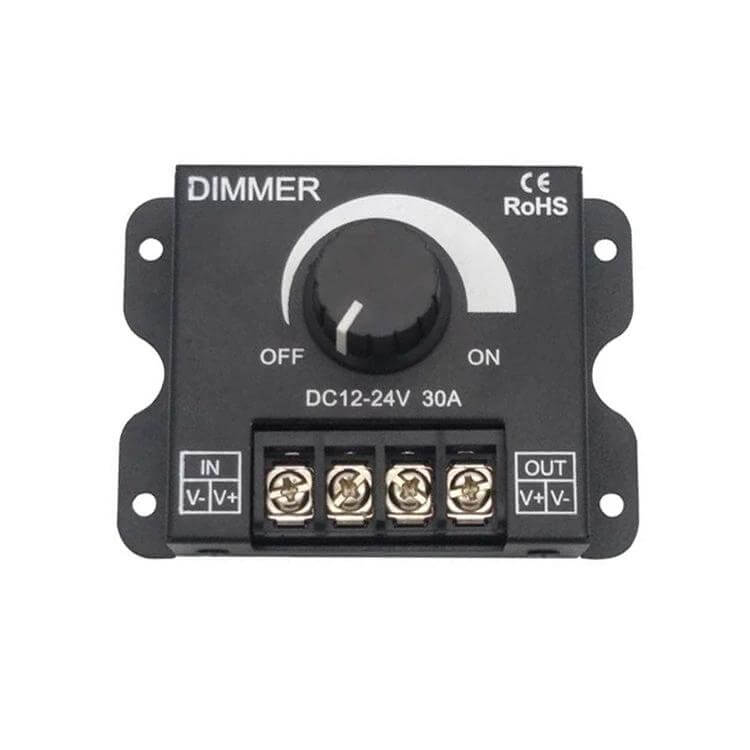

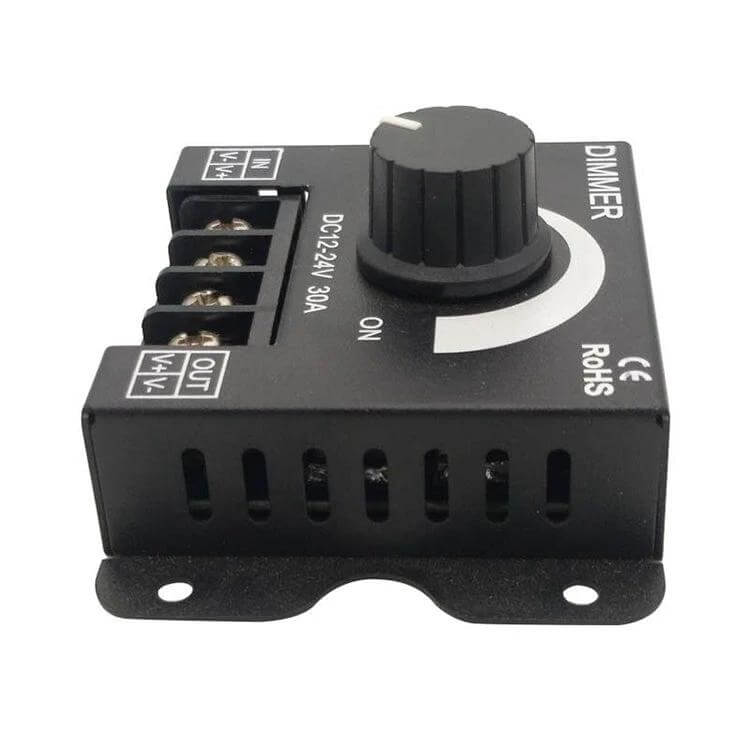

The LED Controller Knob Dimmer Module provides manual brightness control for 12–24 V LED strip lighting in a compact, sealed enclosure.
Use it to adjust cabinet, cove, under‑counter, or decorative strips where a single dimming channel is needed. Screw‑terminal wiring and a rotary knob let you install and fine‑tune brightness in tight spaces without a bulky controller box.
-
Control: Manual rotary knob for smooth, proportional dimming.
-
Compatibility: Designed for 12–24 V DC LED strips and matching power supplies.
-
Power: Up to 72 W at 12 V or 144 W at 24 V (single channel).
-

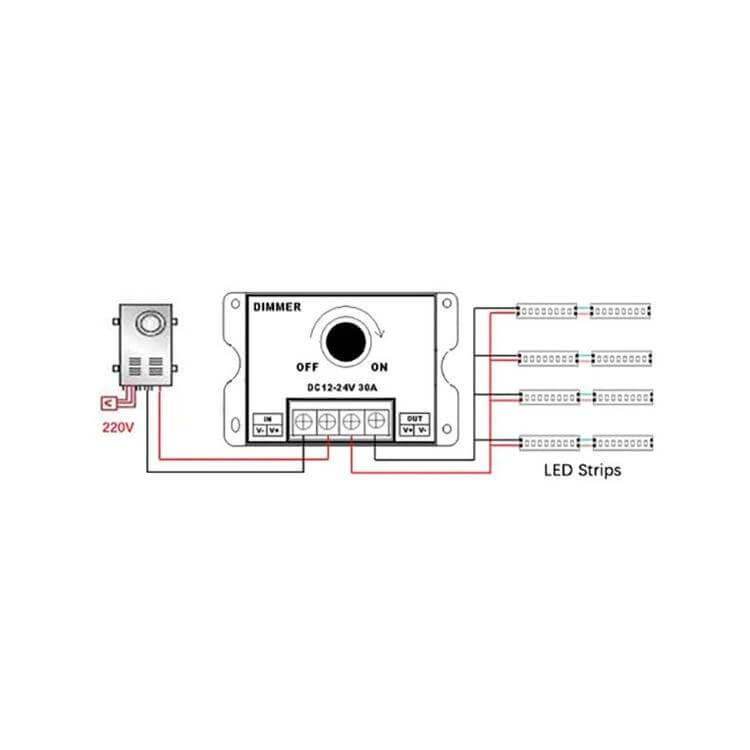

Installation: Screw‑terminal connections for quick wiring in confined areas.
-
Durability: IP65 enclosure protects against dust and light water exposure.
Light specifications: Input 12–24 V DC; single output channel; 63 × 35 × 22 mm; 90 g.
Fit: Suited for standard 12–24 V LED strip installations needing a single, compact dimming channel.
