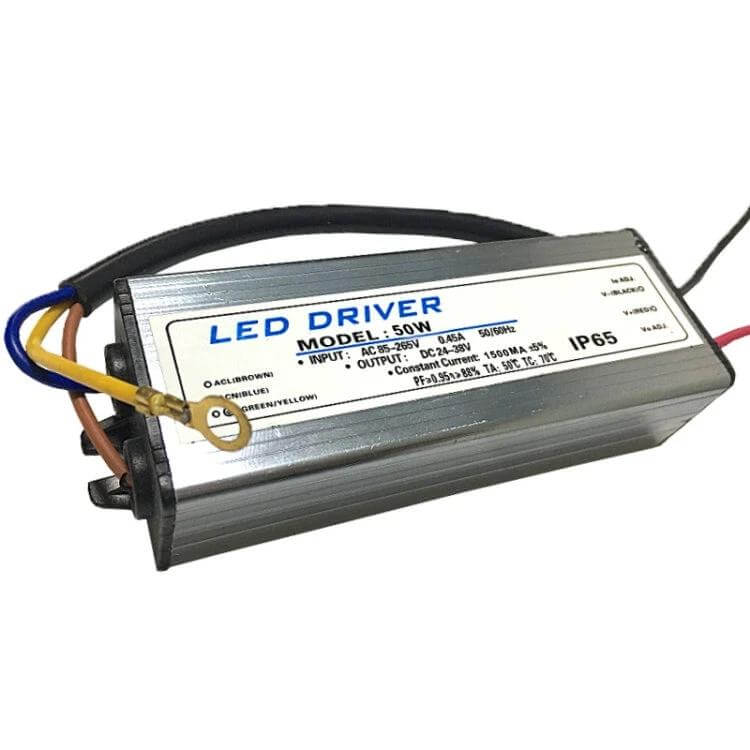

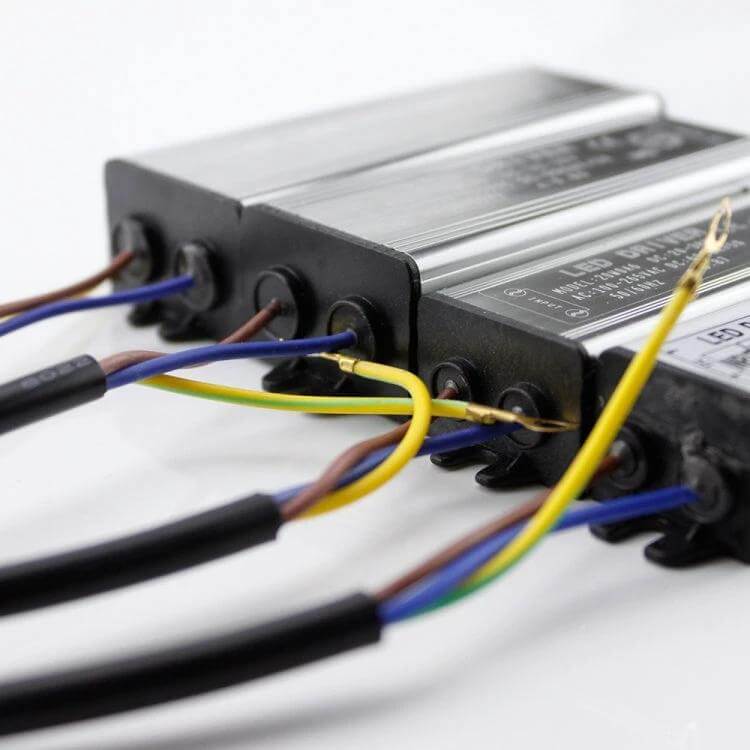

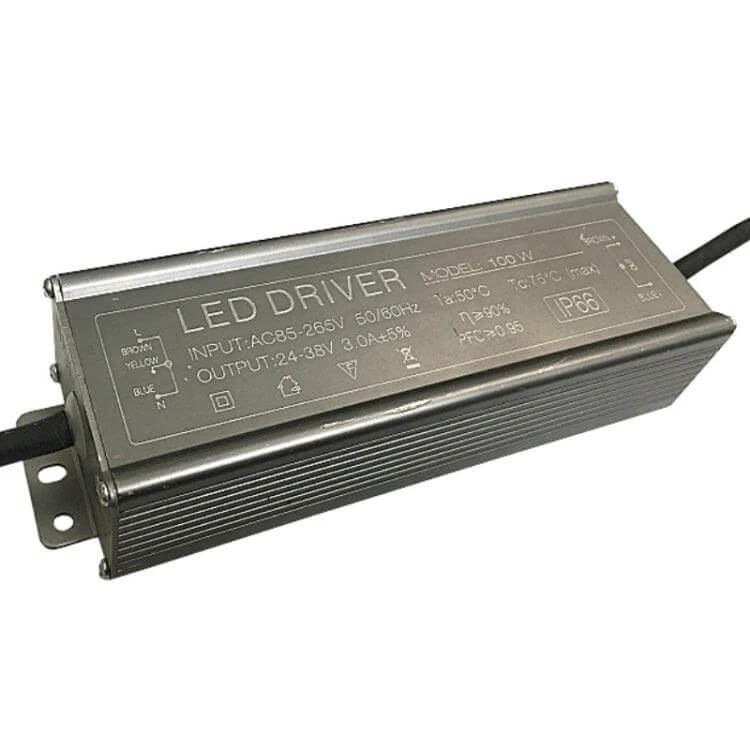

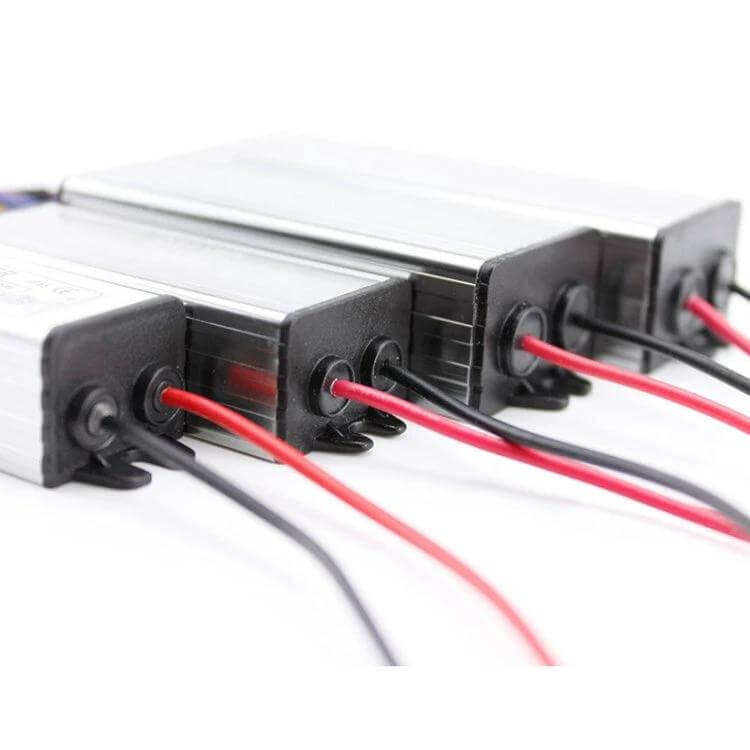

Compact waterproof LED driver for outdoor fixtures that delivers a steady constant-current output. The aluminum alloy shell and epoxy silicone encapsulation protect electronics from moisture and aid heat dissipation.
Use-case: designed for exterior LED lamps, floodlights, street lights, miner lamps and tunnel lighting where a reliable 24–38V DC, 1.5A drive is required. Suited to installations exposed to rain, temperature swings and vibration.
-
Output: Constant current 1500mA ±5% for stable LED brightness.
-
Input range: AC 85–265V, 50/60Hz for wide compatibility.
-
Enclosure: Thick aluminum alloy body for mechanical protection and thermal transfer.
-

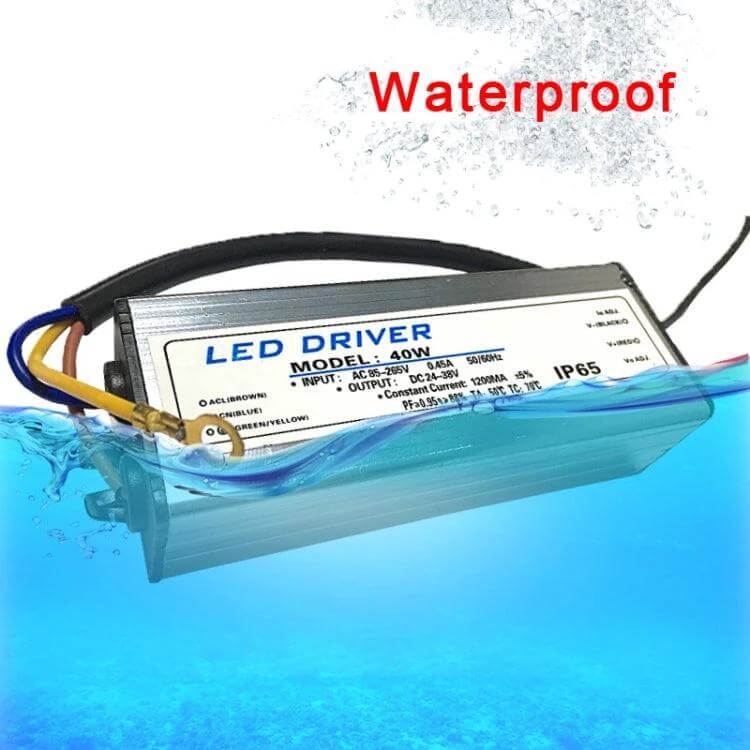

Waterproofing: Epoxy silicone encapsulation provides internal high-density sealing.
-
Temperature: Operates between −40°C and 80°C for outdoor conditions.
Specifications (light): Size 90 × 36 × 27 mm; Output DC 24–38V.
Fit: for outdoor LED fixtures needing 24–38V DC at 1.5A constant current.
