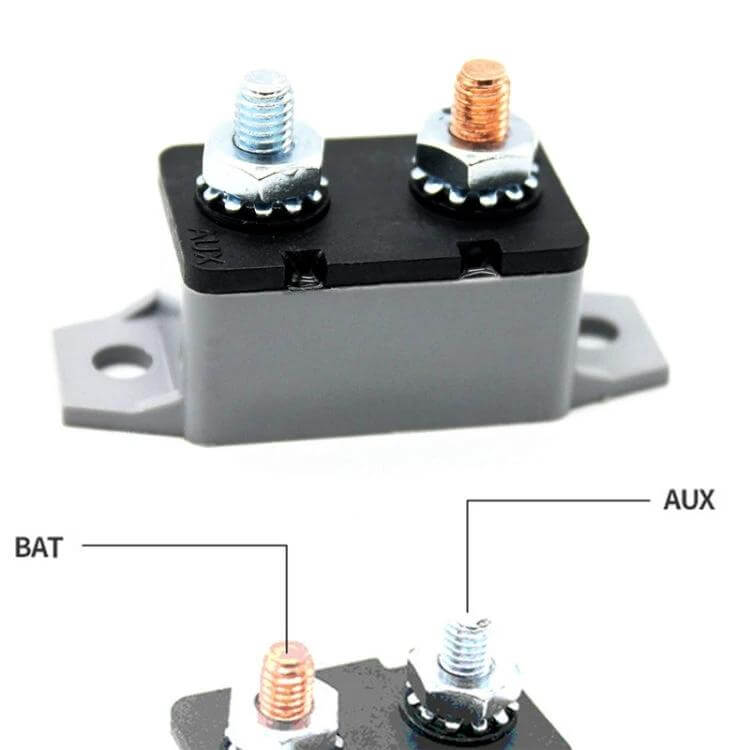

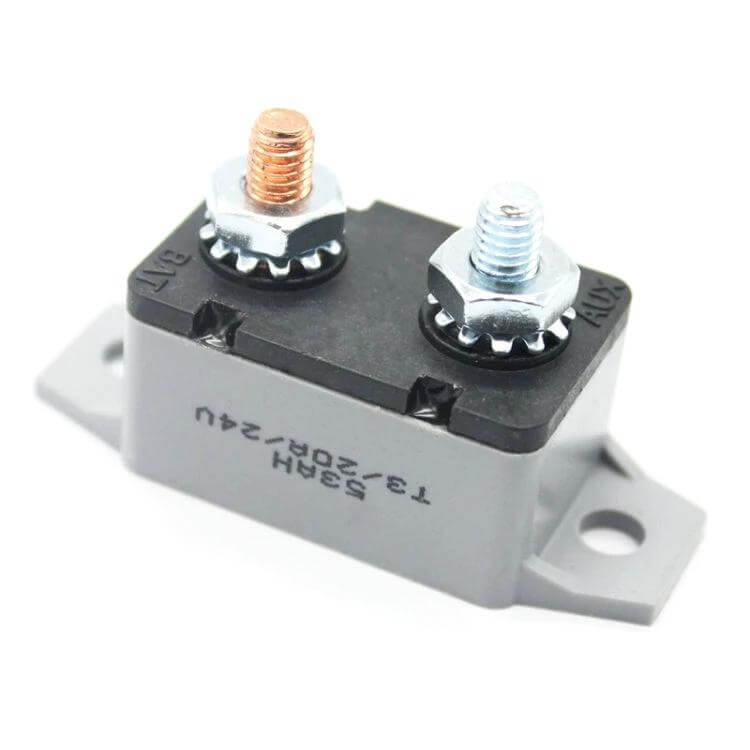

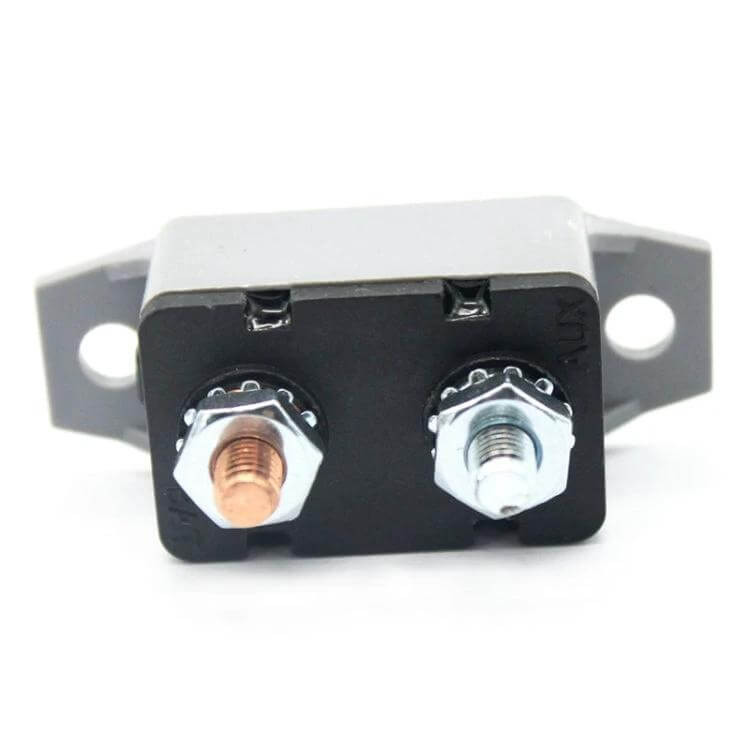

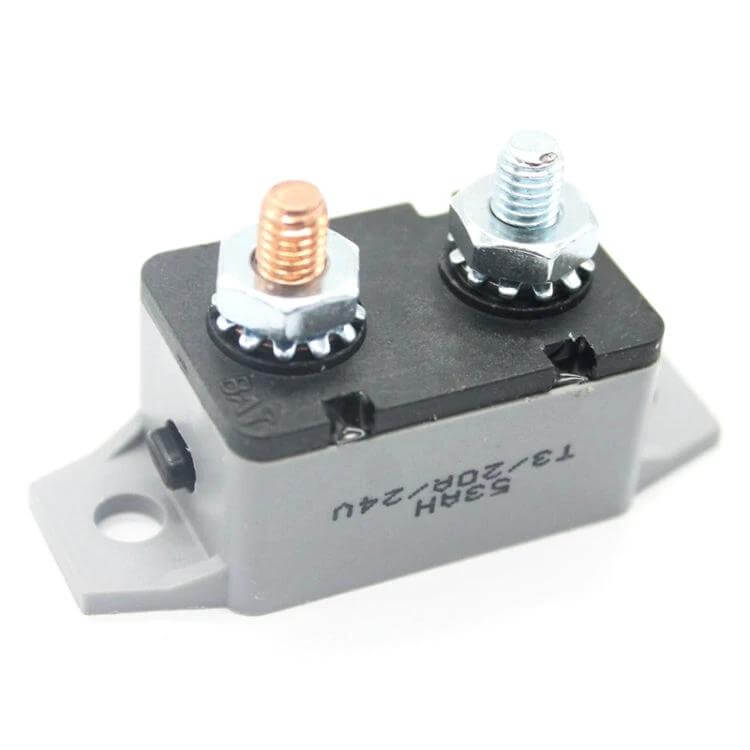

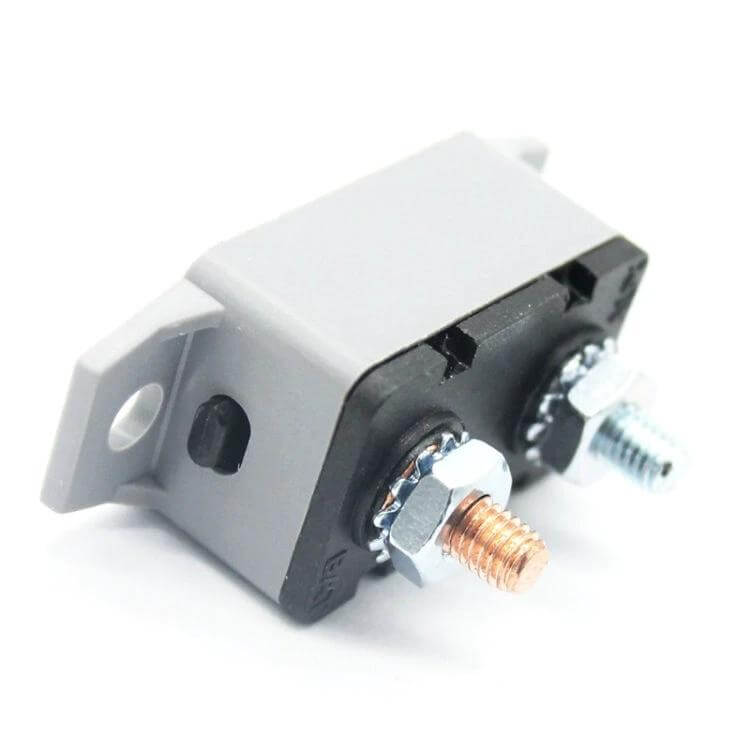

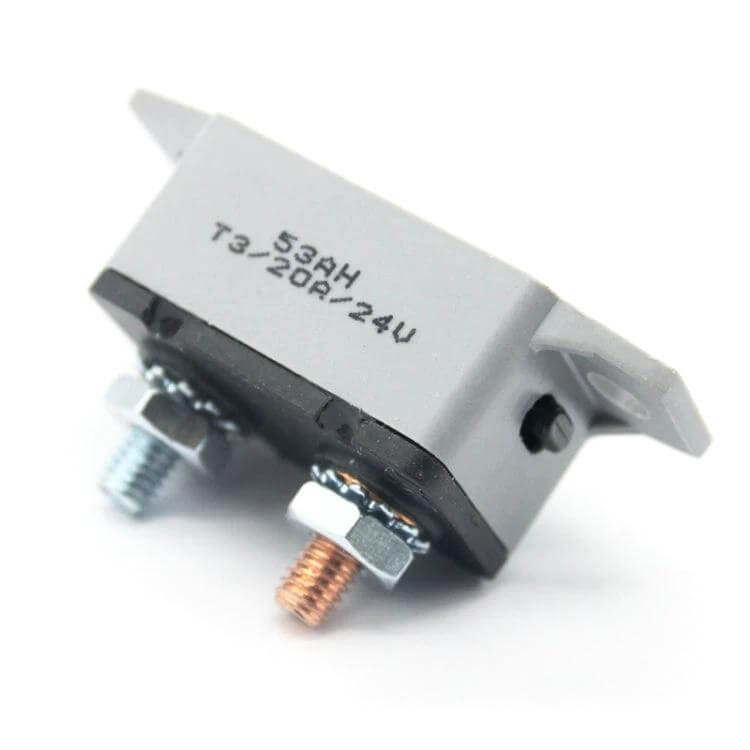

Manual Reset Circuit Breaker 50A for Automotive Electrical Systems provides DC protection for power lines in cars, trucks, RVs, and more. It’s a compact, resettable device designed for 6–28 V systems and up to 2.5 kA interrupt rating at 12 V DC.

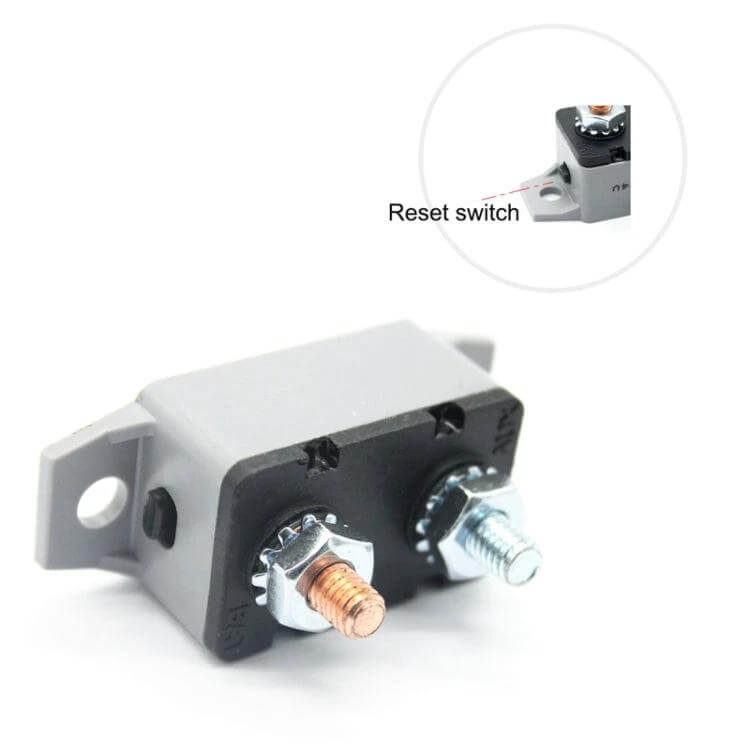

Use cases include battery chargers, car stereos, and other accessories that draw significant current. It offers a straightforward reset after an overload, enabling quick recovery in tight spaces without replacing fuses.
- Current rating: 50 A; interrupt rating: 2.5 kA @ 12 V DC
- Rated voltage: 6–28 V
- IP66 waterproof on plastic cover (terminals not included)
- Operating temperature: −40 to 85 °C

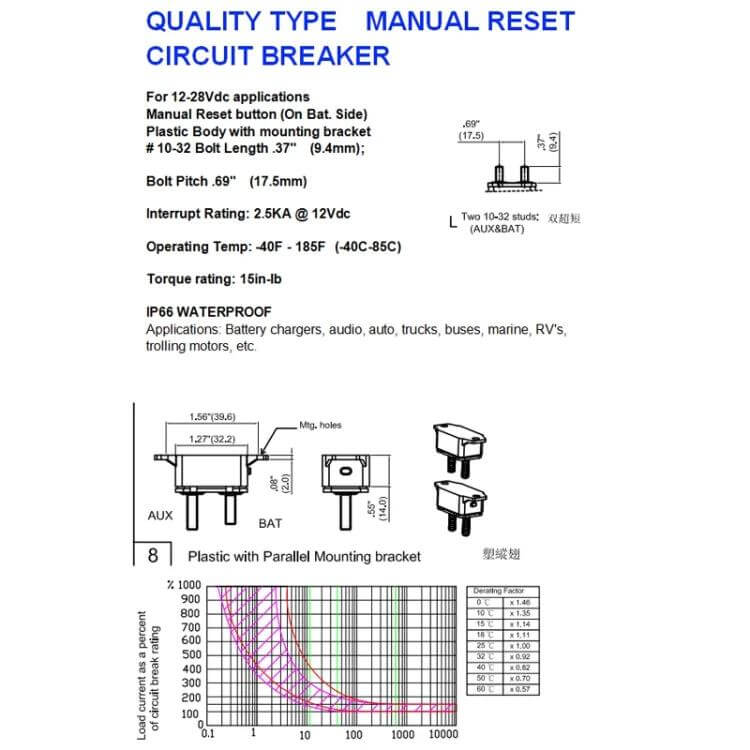

- Bolt length: 37 in (9.4 mm); bolt spacing: 69 in (17.5 mm); wing mounting hole spacing: 1.56 in (39.6 mm)
- Torque: 15 in-lb
- Applications: battery chargers, stereos, cars, trucks, buses, ships, recreational vehicles, trailer motors
Fit: Designed for standard automotive mounting hardware and common wiring configurations to protect circuits in diverse vehicles and equipment.
