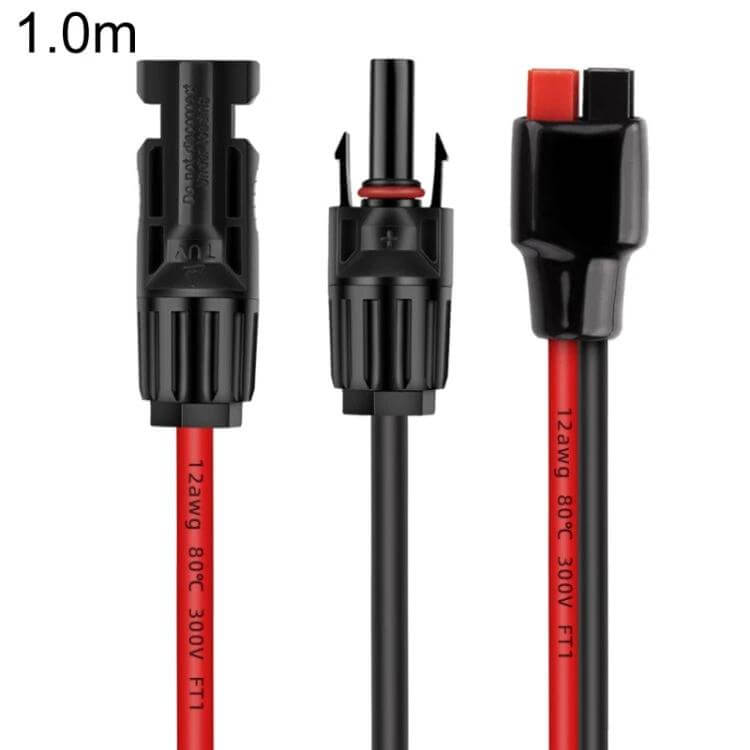

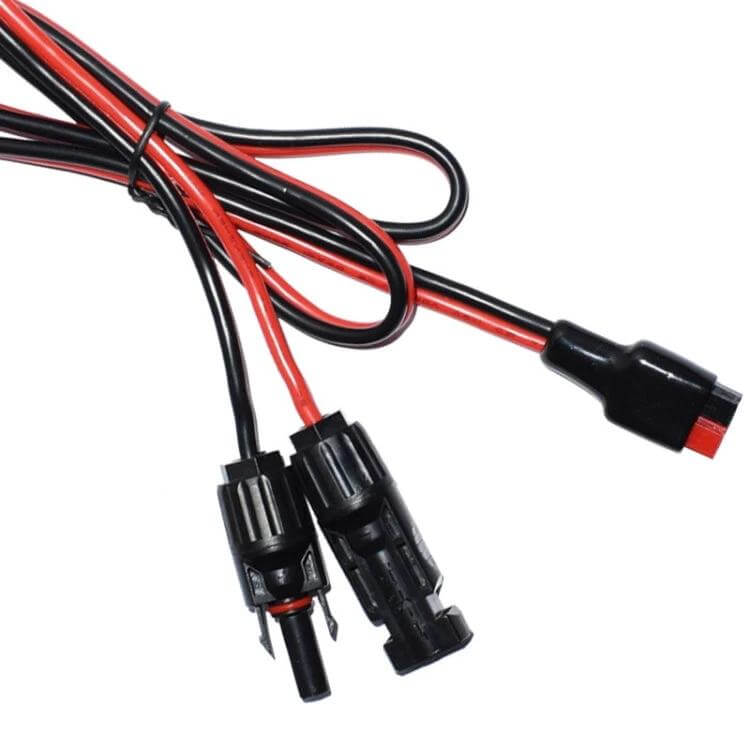

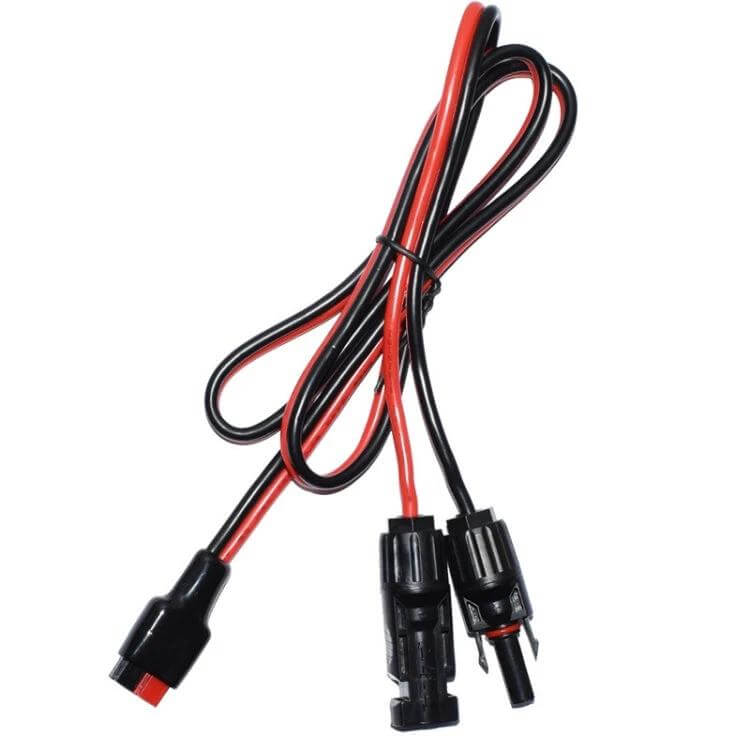

This MC4 to Anderson battery charging cable is designed for mobile energy storage systems that use MC4 solar connectors on one end and Anderson 30A power contacts on the other. It provides a reliable link for portable battery packs in compact setups.

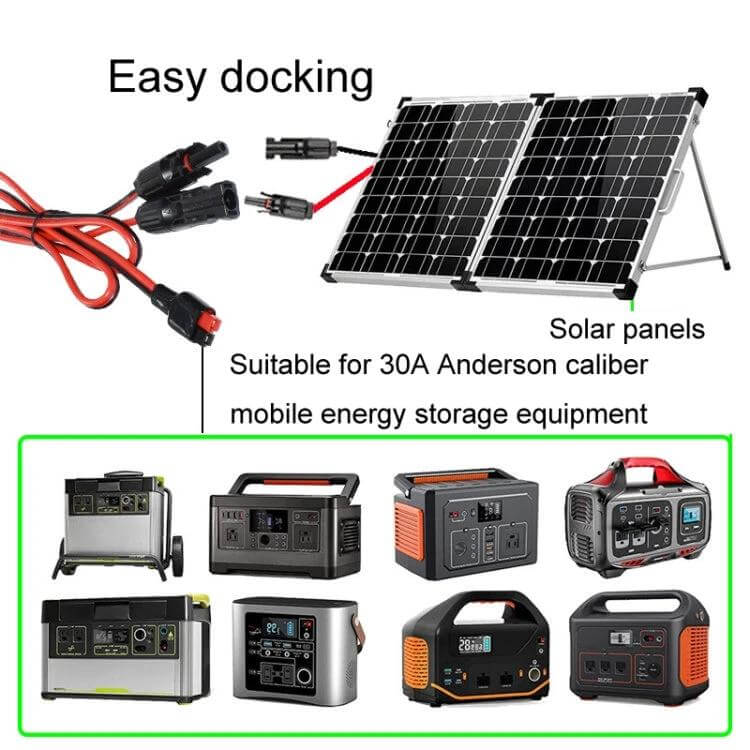

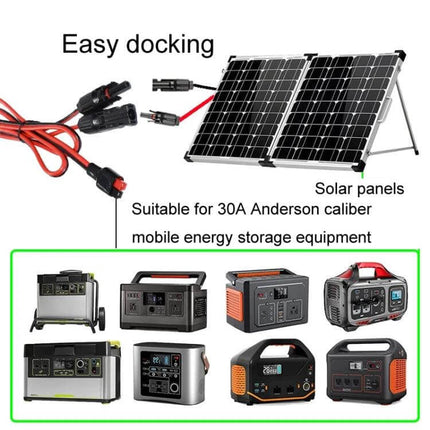

Common use is charging or replenishing portable energy stores from solar arrays or other DC sources, where a 1.0 m run is needed to keep cables tidy and organized.
- Connection types: MC4 2-pin on the MC4 end and Anderson 30A on the opposite end
- Conductor material: pure copper with 3.31 mm² cross-section (approx. AWG 12)
- Insulation and sheath: environmentally friendly PVC with 0.8 mm insulation thickness
- Electrical ratings: 36 V nominal, 30 A current, up to 360 W

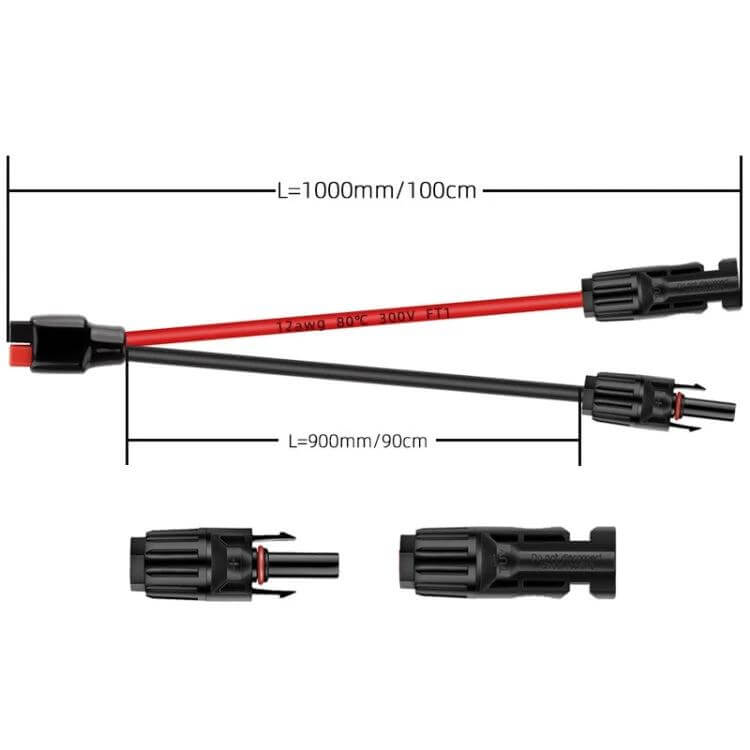

- Length and weight: 1.0 m long; about 107 g; 2x12 AWG
- Compatibility: suitable for 30A Anderson‑compatible mobile energy storage equipment
Key specs: length 1.0 m, copper conductors, PVC insulation and sheath, 36 V, 30 A, 360 W.
Fit: Designed to fit devices using 30A Anderson connections for mobile energy storage systems.
