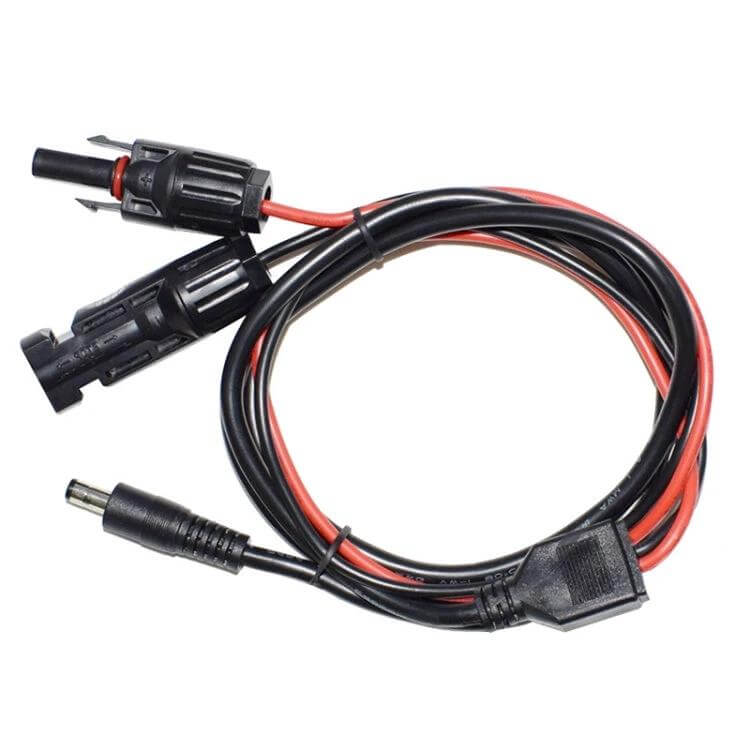

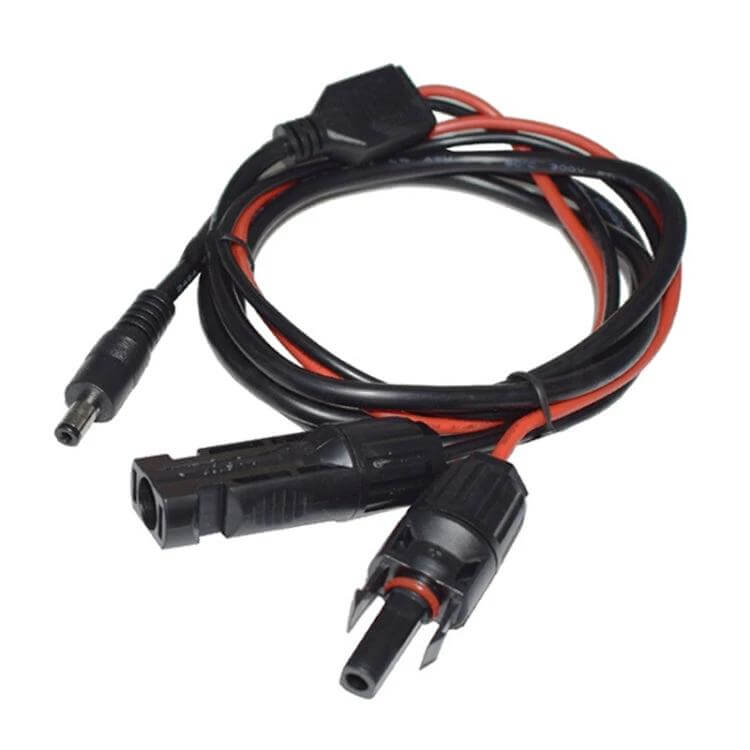

For solar installations, this MC4 to DC 5.5mm solar power extension cable provides a straightforward link between panels and power electronics.
With a 1.5 m length, it extends reach without adding complexity to your setup. The 36 V rating and 13 A current capacity support typical small to mid-size PV configurations, delivering up to about 156 W under standard conditions.
- Length: 1.5 m
- Conductor material: oxygen-free copper with PVC insulation
- Electrical rating: ~36 V, ~13 A
- Power handling: ~156 W

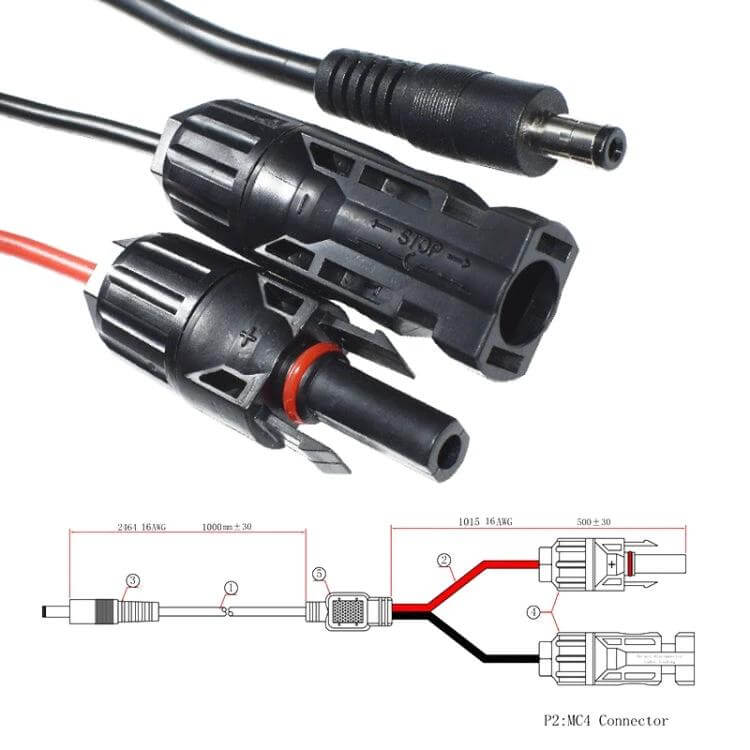

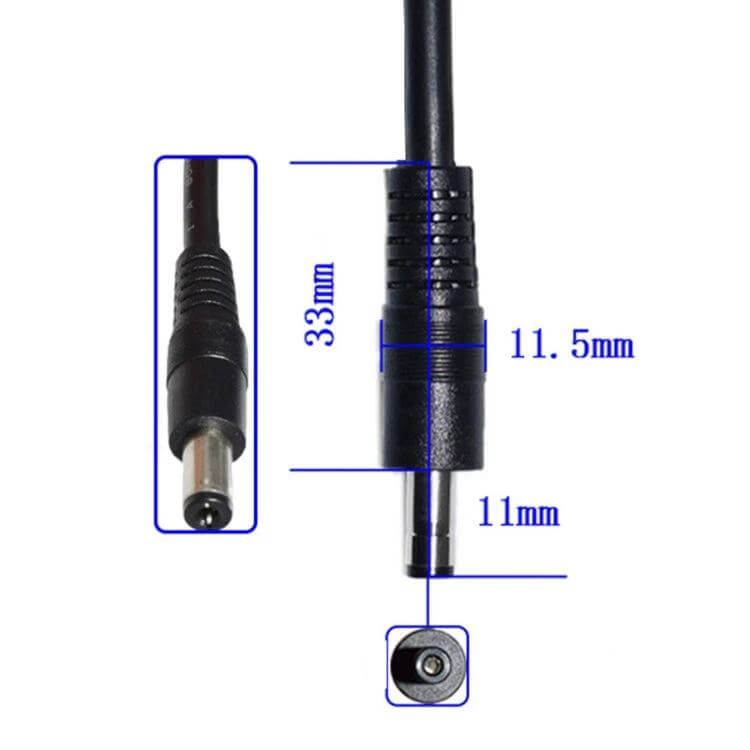

- Connectors: MC4 on one end, DC 5.5 mm barrel on the other
- Jacket: PVC outer sheath for outdoor durability
- Temperature tolerance: high temperature resistance
Specifications: Material includes PVC and oxygen-free copper. The cable is designed for compatibility with solar panels and devices that use MC4 connections on the panel side and 5.5 mm DC inputs.
Compatible with solar panels, charge controllers, and inverters that utilize MC4 connections and 5.5 mm DC power inputs.
