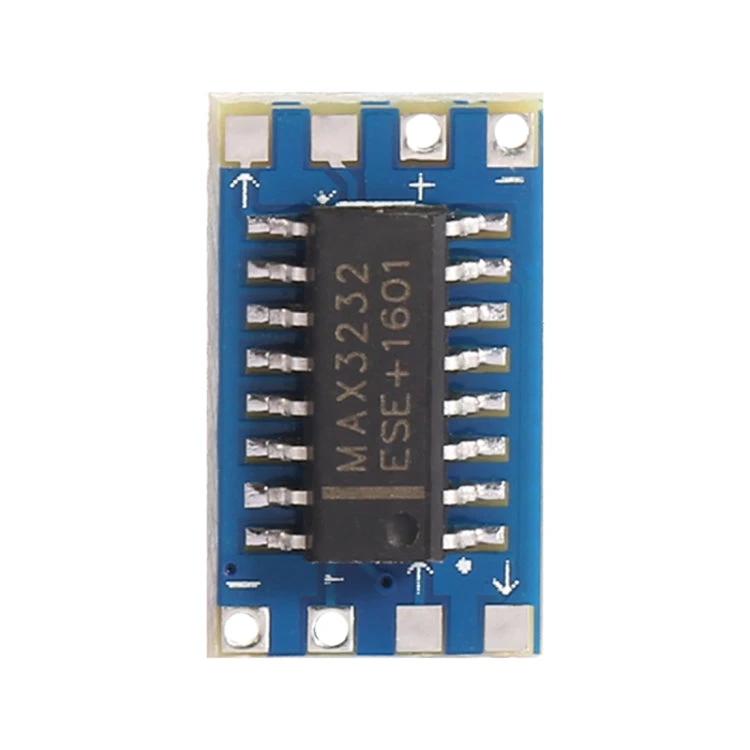

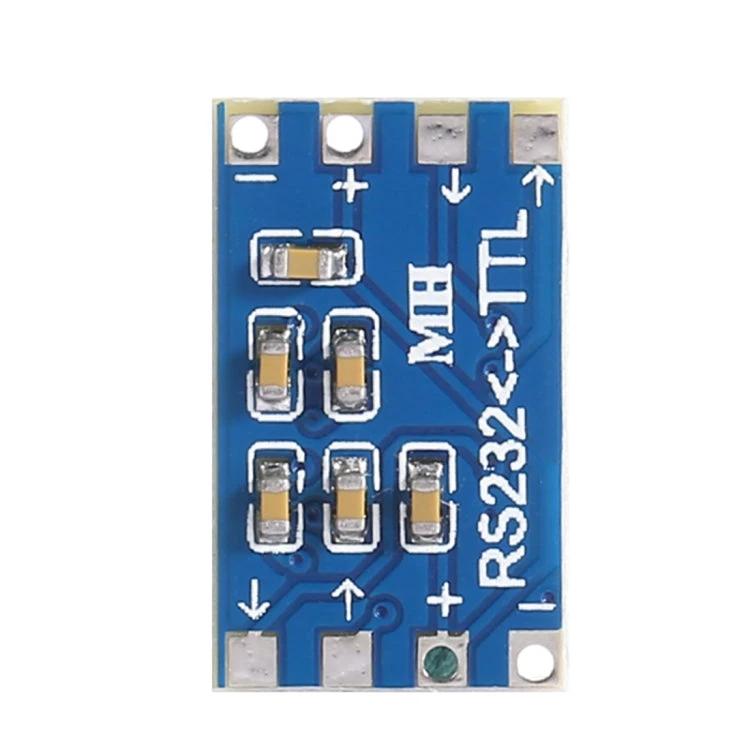

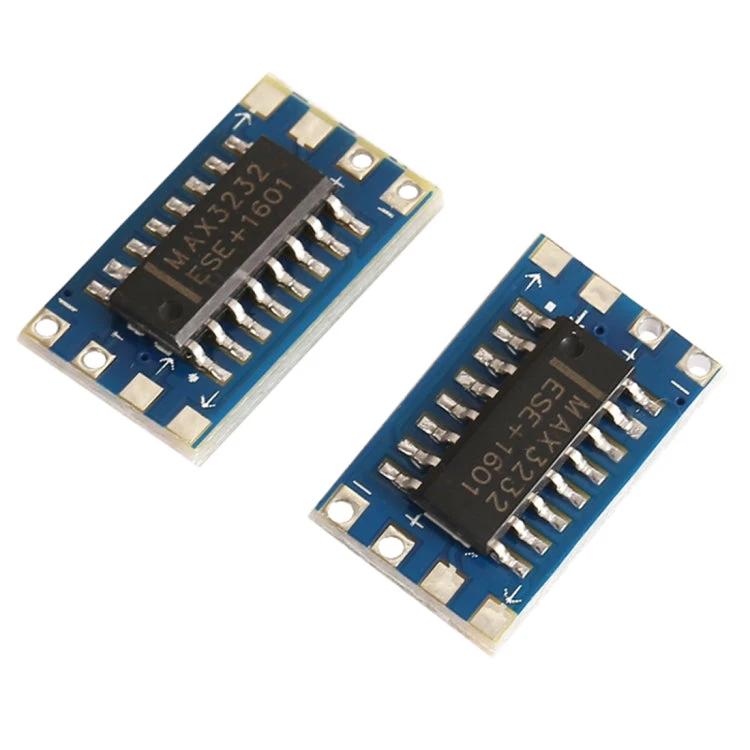

This mini 2-piece RS232 to TTL level conversion board, featuring the MAX3232CSE chip, helps bridge communication between devices using different voltage standards.
In practical scenarios, it's often used in electronics projects to connect RS232 serial ports from older equipment to TTL-compatible microcontrollers, like those in Arduino setups or industrial monitoring systems, ensuring reliable data transfer without signal conflicts.
- Utilizes MAX3232CSE chip for stable conversion
- Operates on a 3V to 5V voltage range for broad compatibility
- Supports baud rates up to 120 KBPS for everyday serial communication needs
- Compact two-piece design for easy integration into tight spaces
- Includes essential components for straightforward setup
- Ideal for reducing signal voltage mismatches in DIY electronics
Light specifications: Dimensions are not specified, but the board's mini size suits portable applications. This solution fits users in hobbyist electronics, prototyping, or maintenance roles seeking a dependable interface for serial devices.
