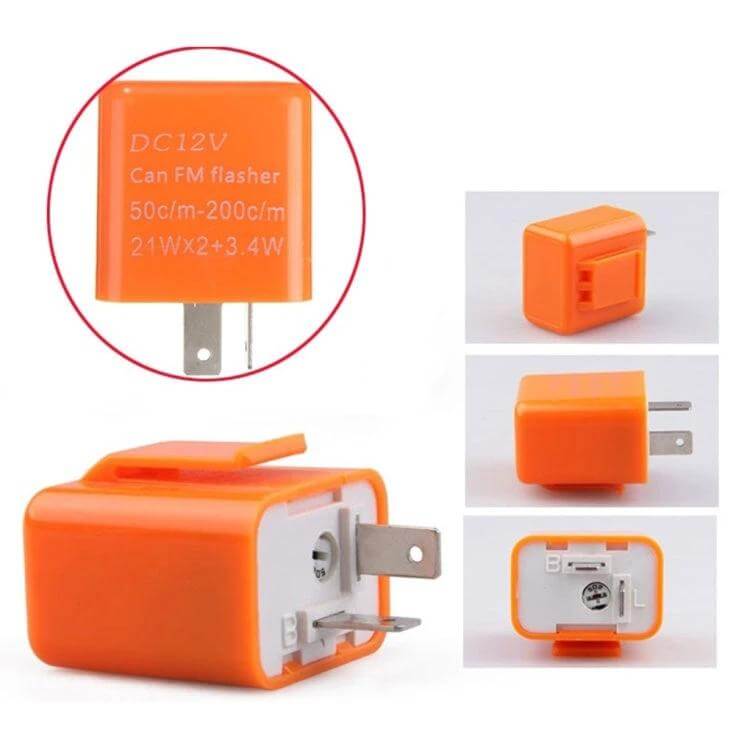

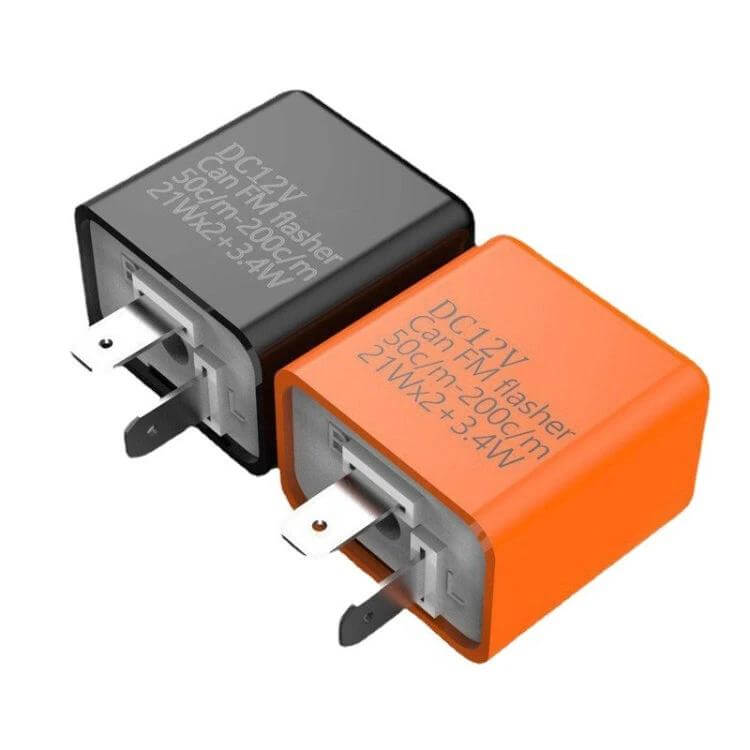

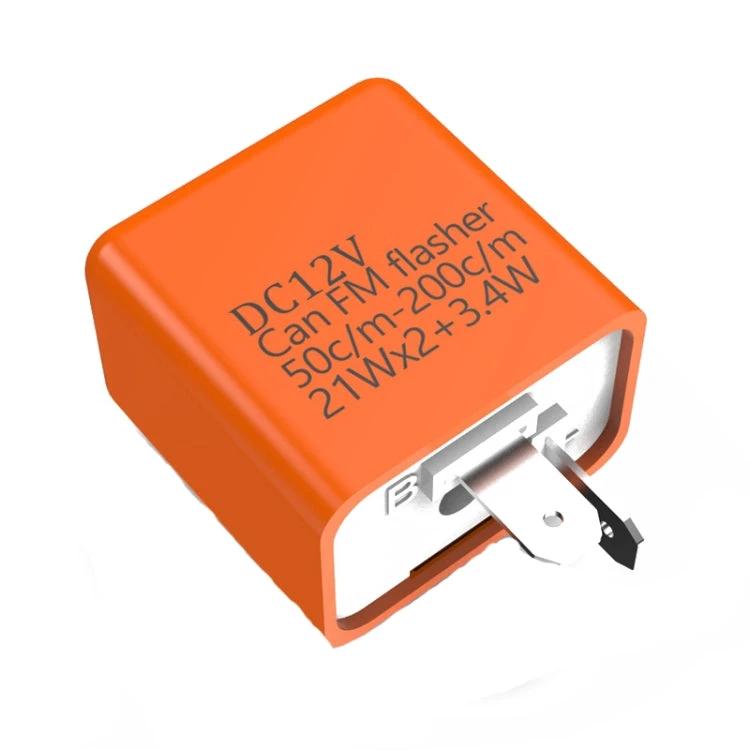

Universal 12V Motorcycle LED Turn Signal Relay for motorcycles, designed to drive LED indicators on a wide range of bikes. The compact module supports adjustable blink rates to match your signal setup.
Use it when upgrading to LED signals or customizing blink timing. For proper operation, align pins correctly during installation. If four lights illuminate after changing the flasher, unplug the turn indicator on the instrument panel.
- Universal fit for 12V motorcycle electrical systems

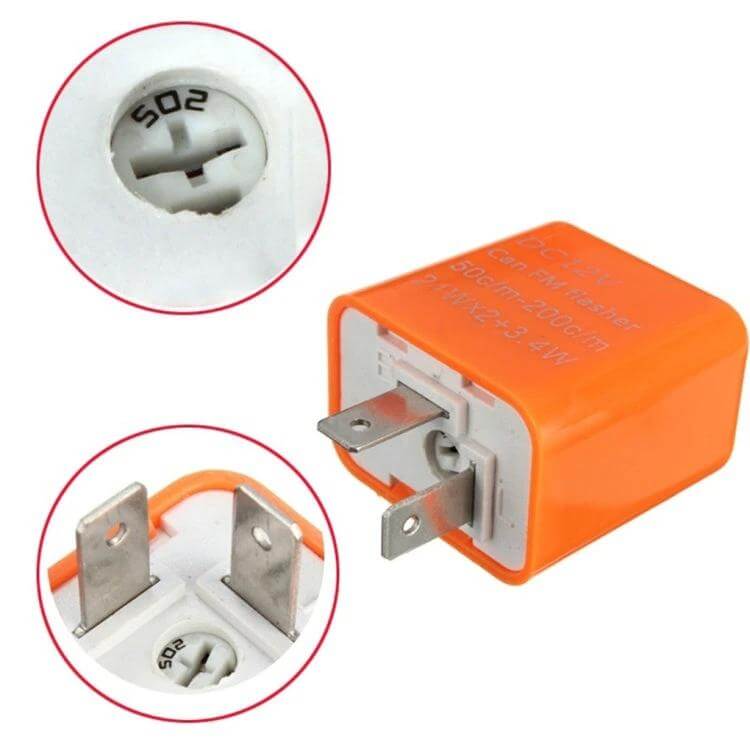

- Adjustable blinking frequency: turn counterclockwise to speed up, clockwise to slow down
- Power and load: 21W x 2 + 3.4W; suitable for LED indicators
- Protection: advanced SMD chip with short-circuit, overload, and reverse polarity protection

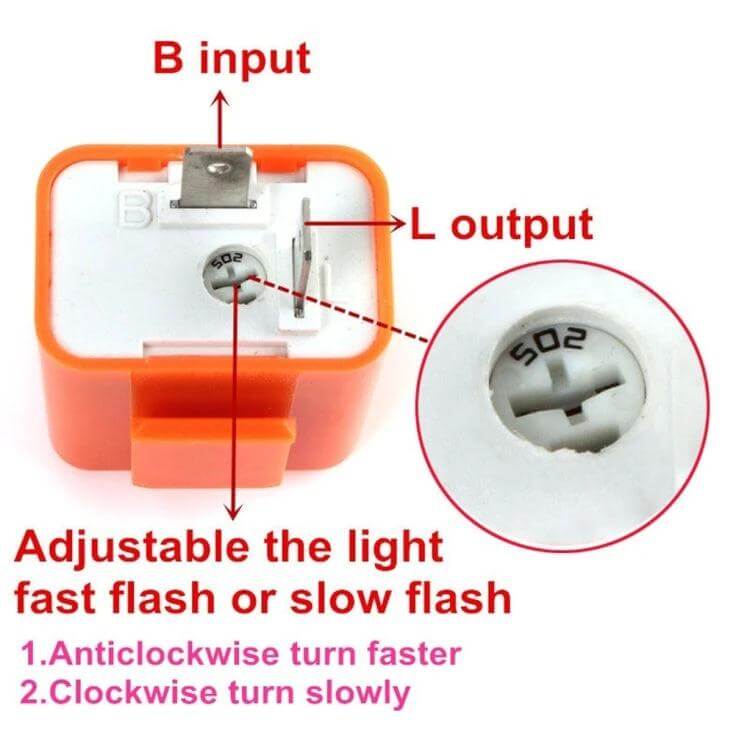

- Wiring and installation: Pin B = input, Pin L = output; B to positive supply, L to lamp positive; lamp negative to ground

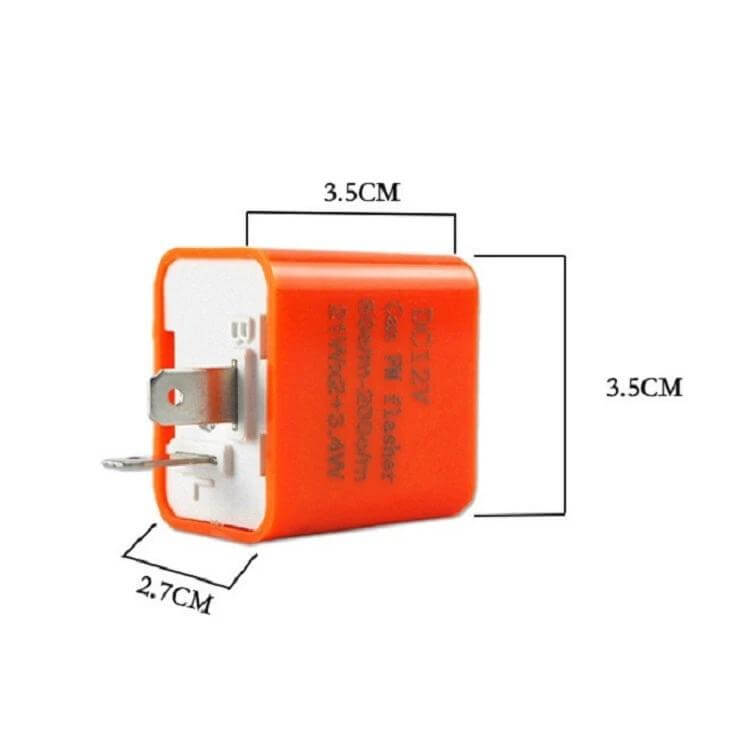

- Material and size: Plastic body; 3.5 x 3.5 x 2.7 cm; weight 0.015 kg
Fit: universal for 12V motorcycles with standard LED turn signal installations.
