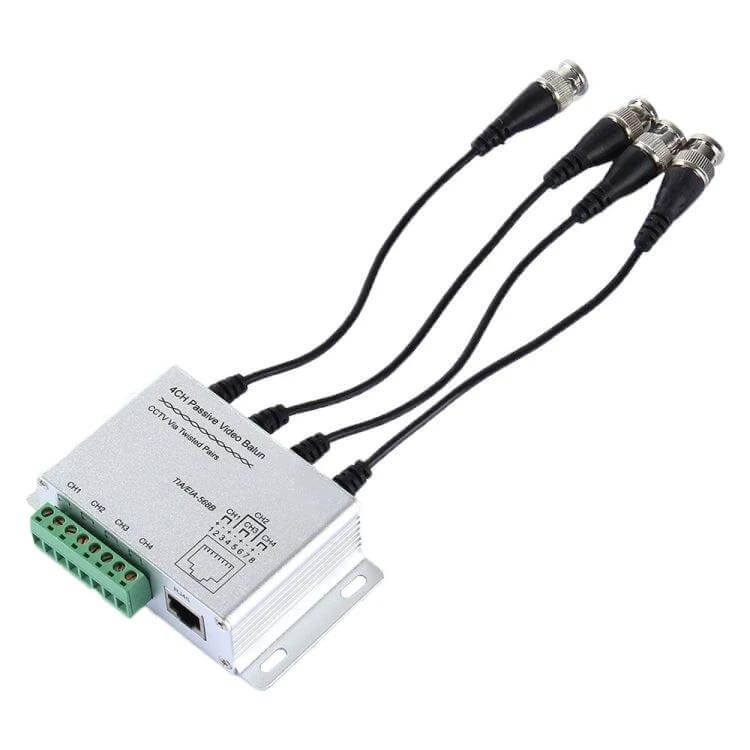

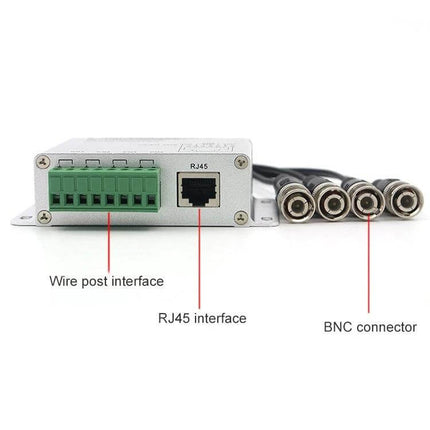

The Passive 4-Channel UTP Video Balun is a device that transmits video signals over twisted pair cables in CCTV systems, helping to simplify wiring setups.
In a typical use case, this balun connects multiple CCTV cameras to a central monitoring station, allowing you to send up to four channels of video over a single Cat-5 cable. This is particularly helpful in larger installations where reducing cable clutter and costs is essential, while maintaining clear signal transmission over moderate distances.
- Differential signal transmission provides strong resistance to interference, ensuring reliable video quality.
- Enables transmission of full-motion video up to 330 meters with passive transceivers or up to 1500 meters with active receivers.
- No external power source needed, making installation straightforward and energy-efficient.
- Built-in transient suppression protection safeguards against voltage spikes.
- Compatible with NTSC, PAL, SECAM, and CCIR systems, offering versatility for various CCTV configurations.
- Impedance matched at 75 ohms for BNC and 100 ohms for RJ connectors.
With dimensions of 157 x 65 x 29mm, it's compact and fits well in standard CCTV enclosures, making it suitable for professional security setups requiring efficient signal extension without added complexity.
