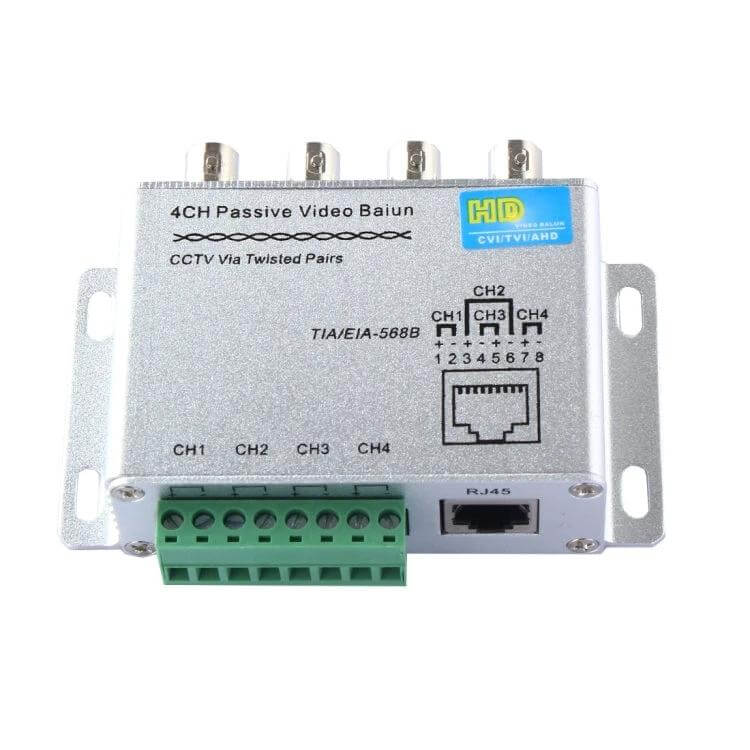

The Passive Four-Channel Video Balun facilitates the transmission of video signals from security cameras over standard Cat-5 twisted pair wires, helping to streamline monitoring setups.
In a typical use case, this device allows installers to send up to four channels of video over one cable in surveillance systems, reducing wiring complexity and costs while maintaining clear signal quality for applications like home security or business monitoring.
- Transmits up to four video channels simultaneously on an 8-core Cat-5 wire
- Compatible with HD-CVI, HD-TVI, and HD-AHD camera formats
- Supports distances up to 450m for 720P CVI and 250m for 1080P CVI or TVI cameras
- Requires no external power, simplifying installation
- Includes built-in transient suppression and surge protection for reliable performance
- Handles NTSC, PAL, and SECAM video formats with minimal signal loss
Light specifications include a frequency response up to 60MHz and 75-ohm BNC impedance. This balun fits well in setups where efficient, long-distance video transmission is needed without additional power sources.
