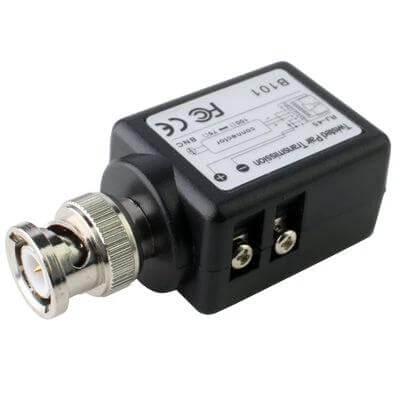

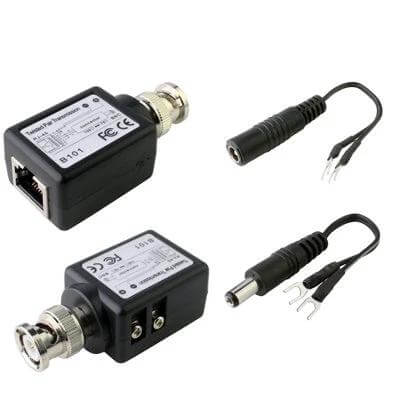

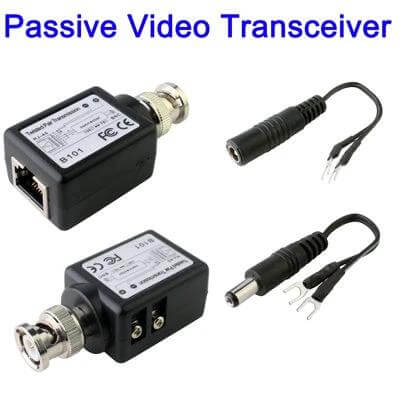

The Passive Twisted Pair Video Transceiver facilitates reliable video transmission for CCTV surveillance systems. It uses a balanced mode to minimize interference from common sources like power lines and fluorescent lights, ensuring clearer signals over distances.
In a typical setup, this transceiver extends video feeds from security cameras to monitoring stations via twisted pair cables, making it suitable for offices, warehouses, or homes where electromagnetic noise could disrupt signals. It supports various cable types, allowing for flexible installations without needing additional equipment.
- Immune to interference from data signals, phones, and lights for stable video transmission

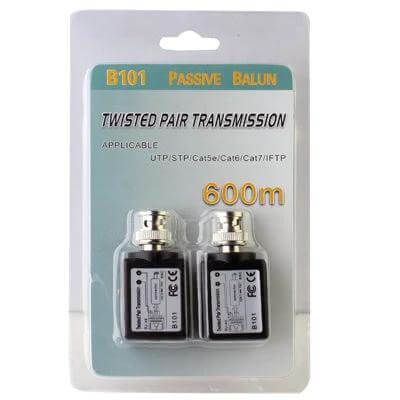

- Supports UTP, STP, Cat5e, Cat6, Cat7, and IFTP cables for broad compatibility
- Achieves up to 750 meters for black-and-white and 600 meters for color video
- Operates at 8MHz frequency with RJ45 (100 Ohms) and BNC (75 Ohms) connectors
- Compact dimensions of 34mm x 27mm x 20mm for easy integration into existing systems
- Utilizes specific RJ45 patching for video and power signals
This transceiver fits well in surveillance applications requiring cost-effective, passive signal extension, ideal for users seeking dependable performance in everyday environments.
