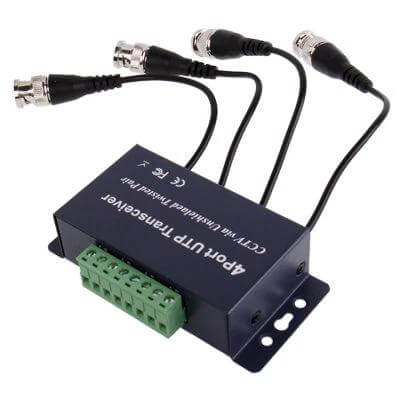

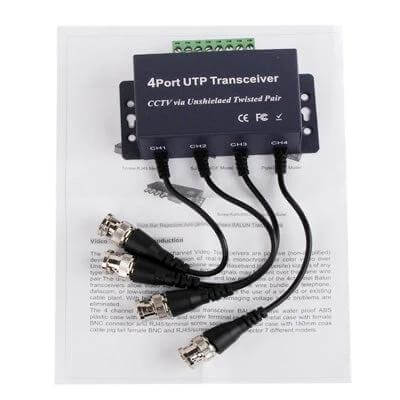

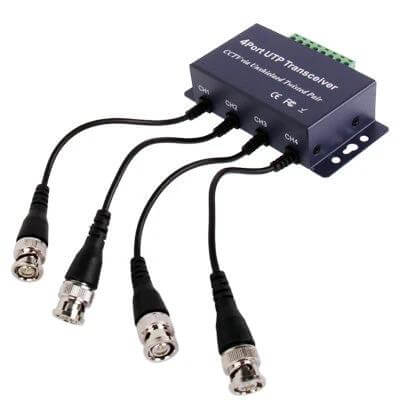

The Passive UTP Balun Transceiver facilitates four-channel video transmission over twisted pair cables, ideal for extending signals without additional power.
In surveillance systems or AV setups, this transceiver allows you to transmit real-time video signals over long distances using existing Cat 5E or better wiring, helping reduce costs and simplify installations by converting BNC connections to UTP for reliable point-to-point video transfer.
- Supports up to 2000 feet of transmission distance with one unshielded twisted pair cable
- Handles real-time PAL, NTSC, or SECAM CVBS signals with a frequency response from DC to 6 MHz
- Requires no external power, making it easy to integrate into existing systems
- Features BNC connectors for 75-ohm impedance and UTP terminals for 100-ohm compatibility
- Compact dimensions of 10 x 5.5 x 2.5 cm for versatile mounting options
- Offers strong common-mode rejection of 55 dB typical for clearer signals
This transceiver fits well in professional video applications where affordable, passive signal extension is needed, such as in security camera networks or broadcast environments.
