This portable vector network analyzer is designed for RF antenna testing, offering a compact tool for measuring network parameters on the go. It features a built-in battery and supports data storage via MicroSD card, making it suitable for field use.
In practical scenarios, such as testing antennas for ham radio or evaluating RF circuits during prototyping, this device allows users to measure S parameters, VSWR, and phase without needing a full lab setup, providing reliable data for analysis and adjustments.
- Built-in 400mAh battery for over 4 hours of continuous use, enhancing portability.

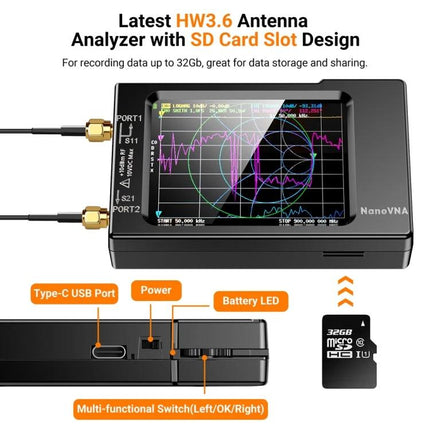

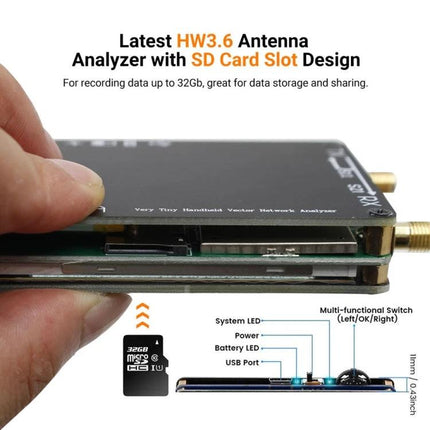

- Supports MicroSD cards up to 32GB in SPI mode for saving test data directly.
- Measures S11 and S21 parameters; manual reconfiguration needed for S12 and S22.

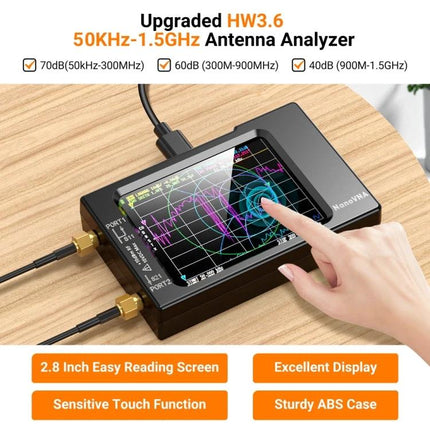

- 2.8-inch TFT display for clear viewing of results like Smith charts and frequency responses.
- Operates across 50kHz to 1.5GHz with varying dynamic ranges based on frequency.

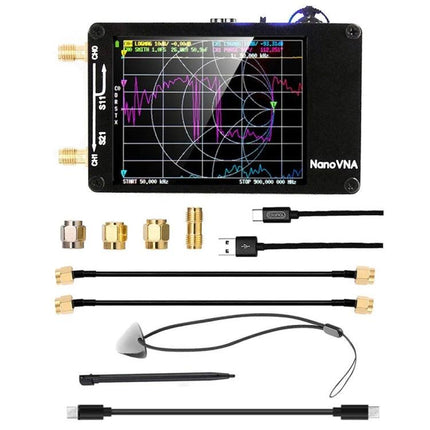

- Includes calibration kits and cables for accurate setup.
Specifications include a compact 54mm x 85.5mm x 11mm size and USB Type-C connectivity. This analyzer fits well for RF engineers, hobbyists, and technicians needing precise, on-site measurements for antenna design and troubleshooting.
