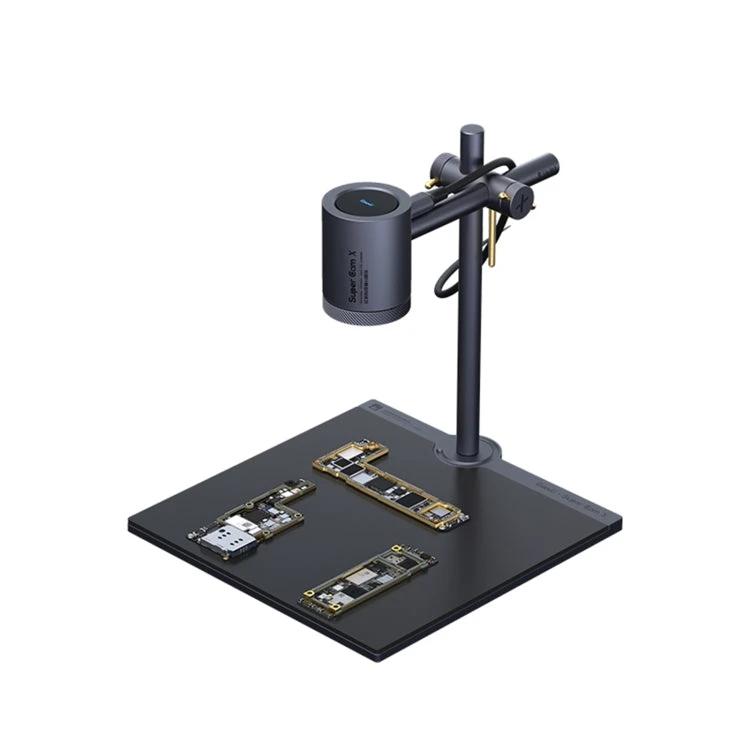

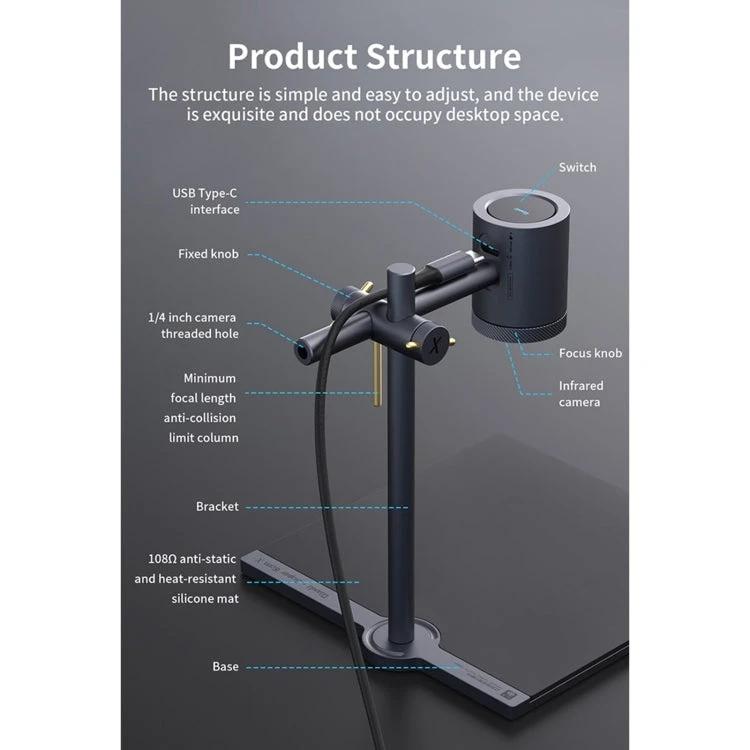

The Qianli Super Cam X thermal imager is a USB-connected inspection camera designed for electronics repair. It combines an infrared sensor with an adjustable visible-light camera to assist in locating overheating components on PCBs.
In a workshop setting, technicians connect the device to a laptop, adjust the visible camera angle, and view fused thermal and visible images to diagnose hotspots, trace power faults, and document repairs without using additional network ports.
-

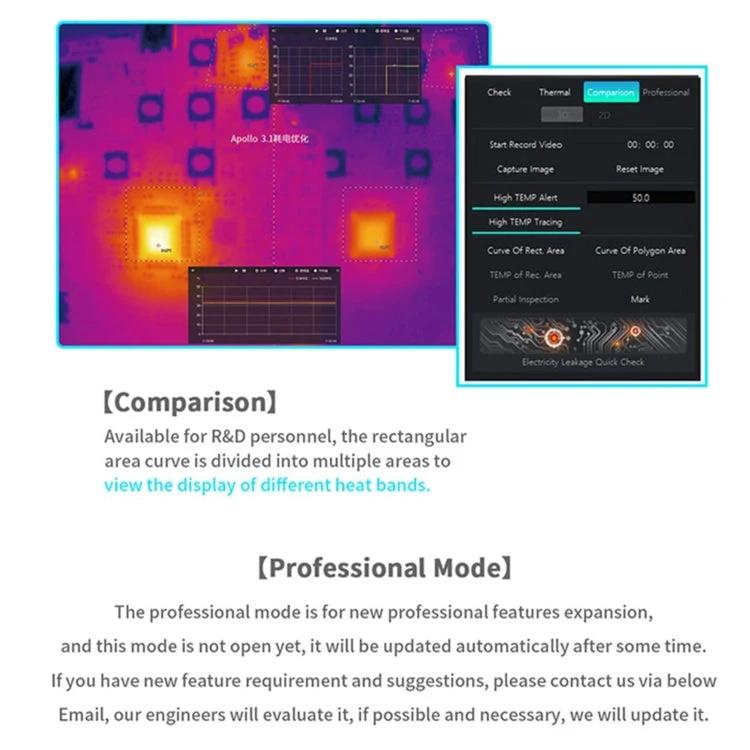

Image fusion: Infrared and visible-light overlay for clearer identification of component-level heat sources.
-

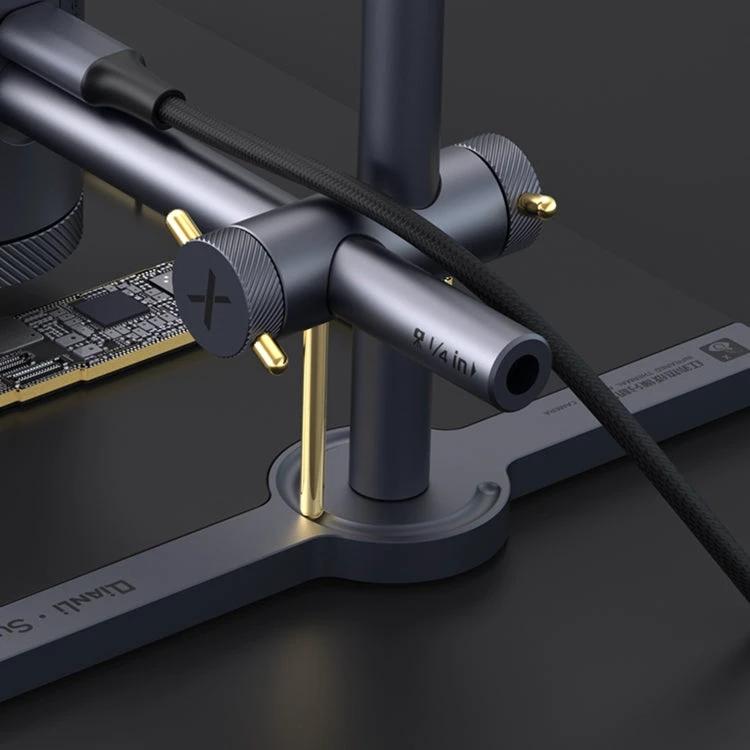

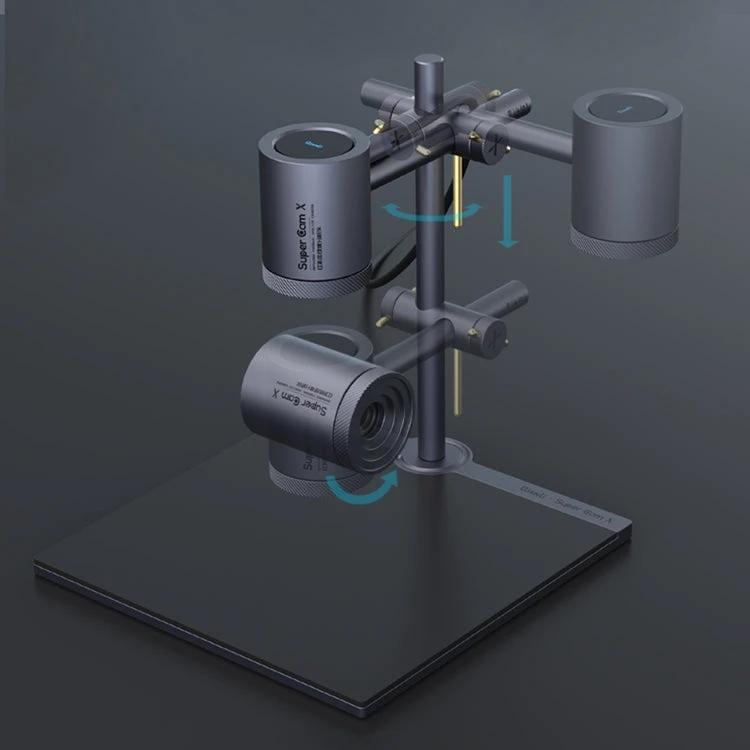

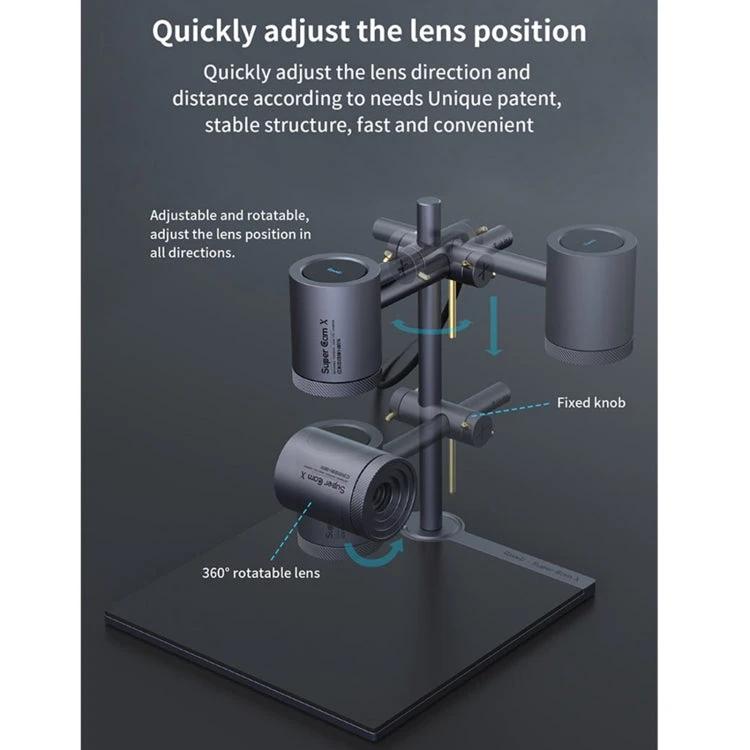

Adjustable angle: Visible camera rotates to match PCB orientation and tight spaces.
-

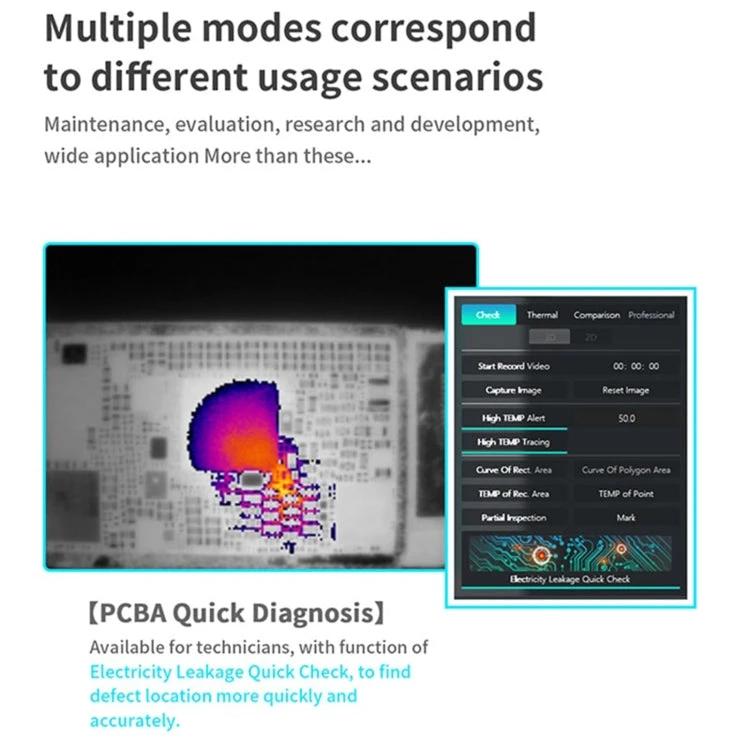

Quick-check mode: Rapidly highlights the hottest area for fast triage.
-
USB connectivity: Single-cable connection to computers; preserves other workshop ports.
-
Capture & save: Store PCB images with thermal data for documentation and comparison.
Specifications: 52,000-pixel resolution; temperature range -20°C to +120°C.
Fit: Suited for electronics technicians and repair shops needing desktop-connected thermal analysis and image documentation for circuit-level troubleshooting.
