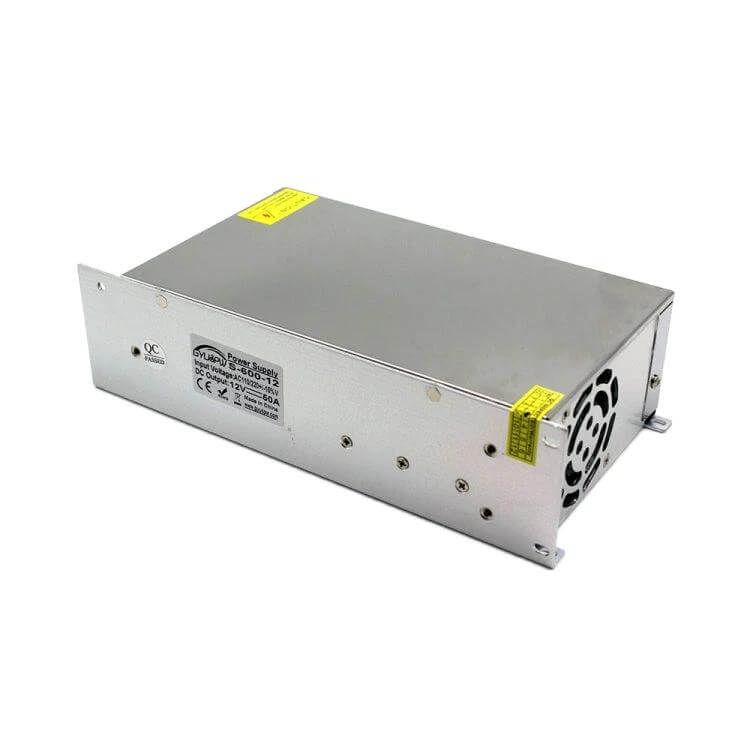

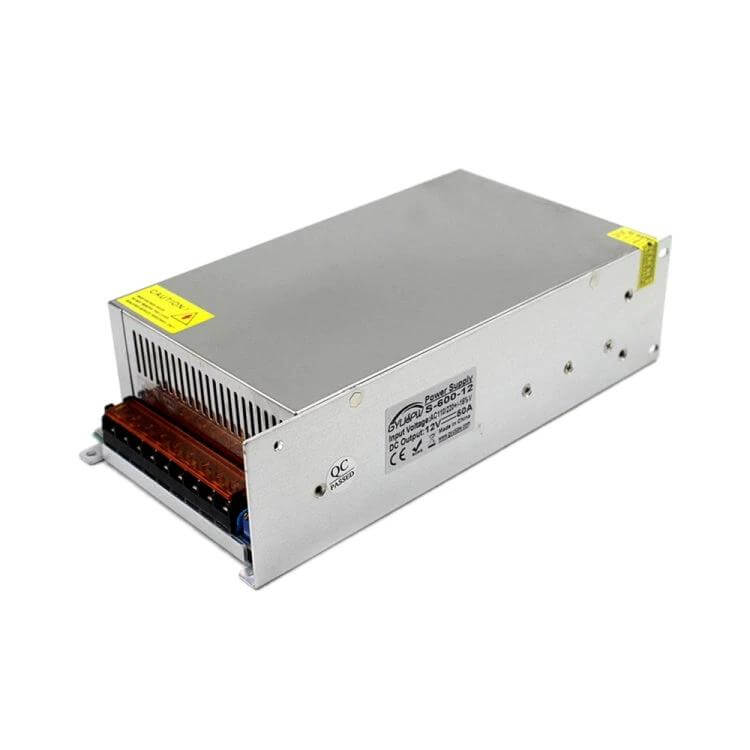

Reliable LED Light Bar Power Supply for Security Displays provides a stable 12V DC source from 110–220V mains for indoor LED bars and signage. The unit uses an aluminum housing for heat dissipation and consistent output under load.
Use this supply for continuous security lighting, retail signs, or compact LED installations where steady 12V power and built-in protections are required. Suitable for installers who need mains-to-12V conversion with adjustable output and safety features.
-
Output: DC 12V up to 100A (1200W) with ±1% nominal tolerance and ±5% adjustable range
-
Input: 100–140V / 180–260V (50–60Hz)
-
Protection: overload, overvoltage, overcurrent, short-circuit; leakage <1 mA @230V
-

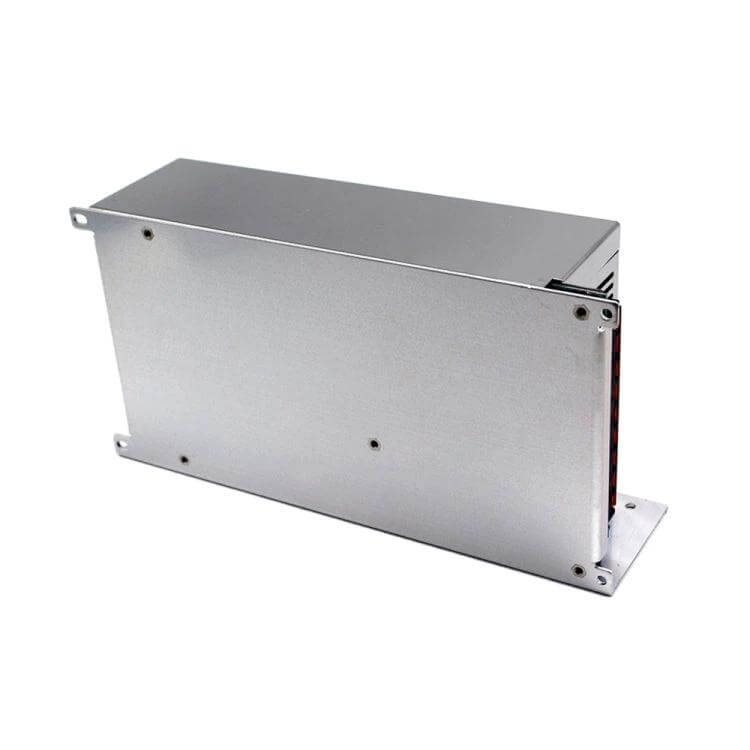

Construction: aluminum housing, 1.5kV AC isolation between input/output
-
Environment: operating -10 to 60°C, storage -20 to 85°C

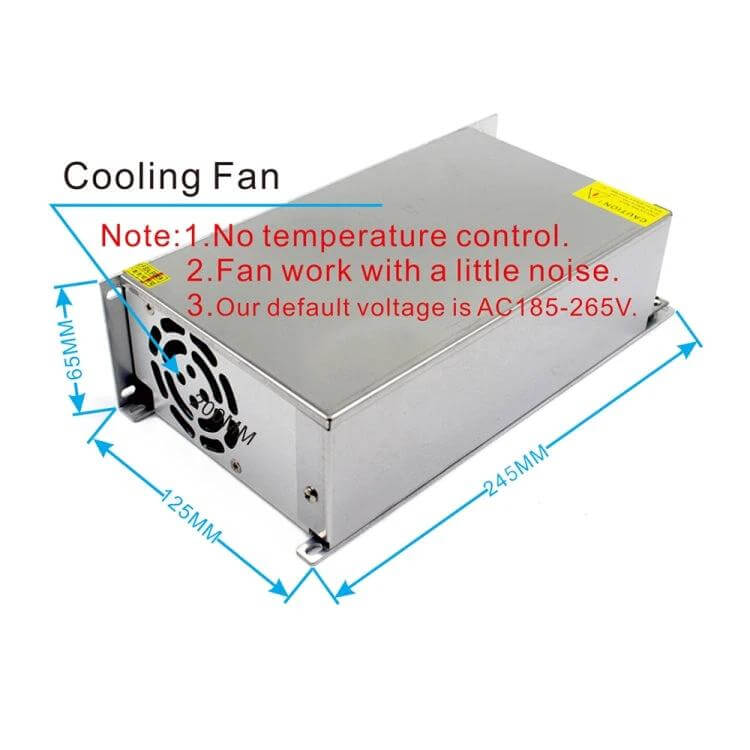

Specifications (key): dimensions 245×125×65 mm; start 200 ms, rise 50 ms.
Fit statement: Designed to fit standard 12V LED light bars and security displays requiring a mains-to-12V power supply.
