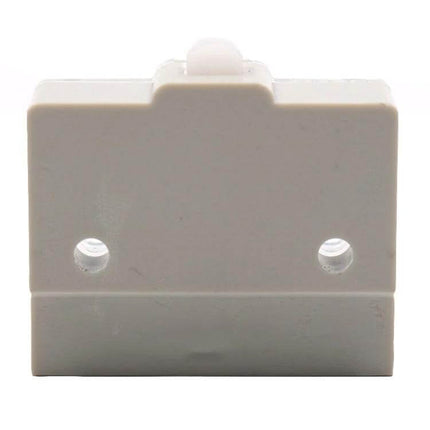

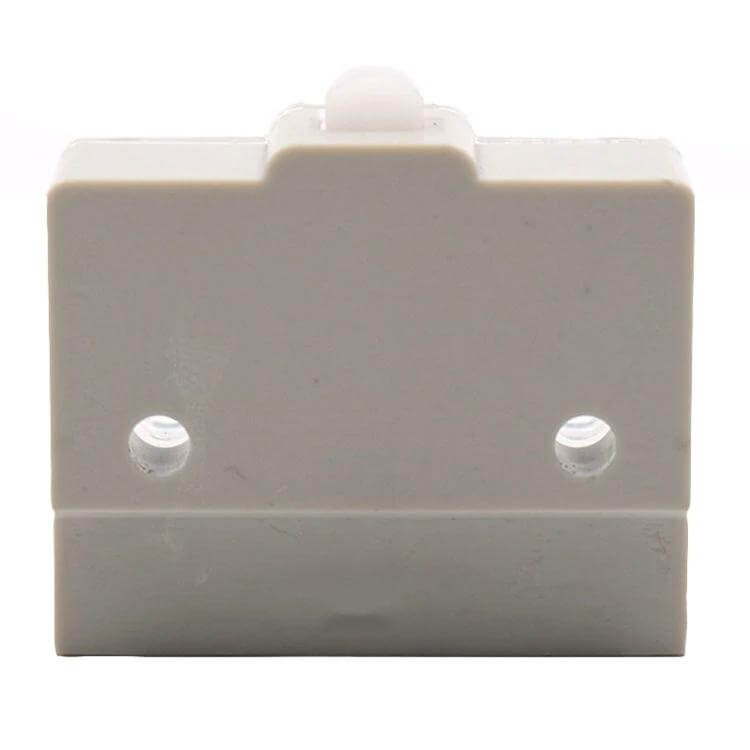

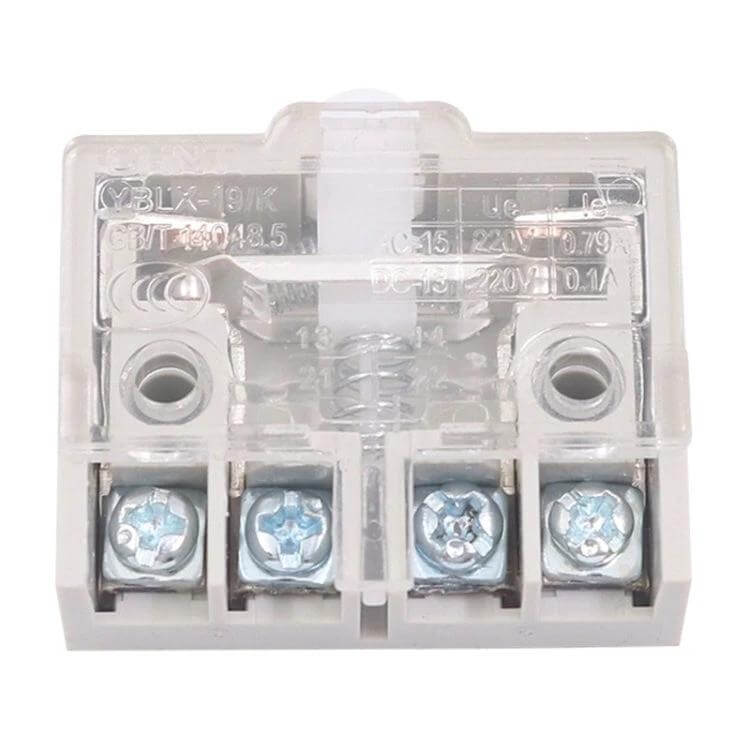

The Self Resetting Micro Travel Switch for Foot Switches is a compact, durable switch designed for reliable, repeatable actuation in foot-operated controls.
It suits YBLX-EKW/5A/B foot switches and the YBLX-19 series travel switches, providing consistent triggering in industrial equipment, textile machines, and other foot-pedal interfaces where space is limited.

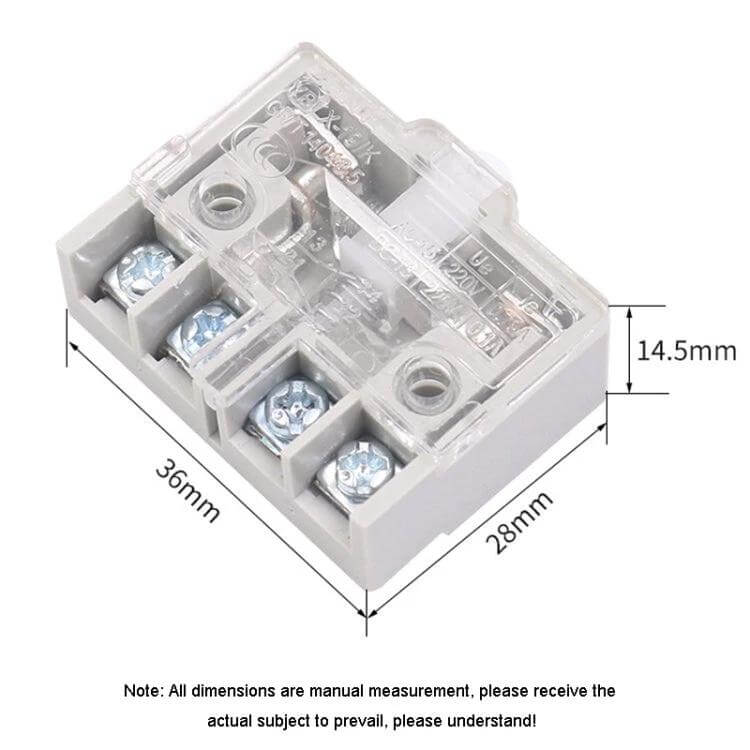

- Small form factor: 3.6 × 2.8 × 1.45 cm; ~17.7 g.

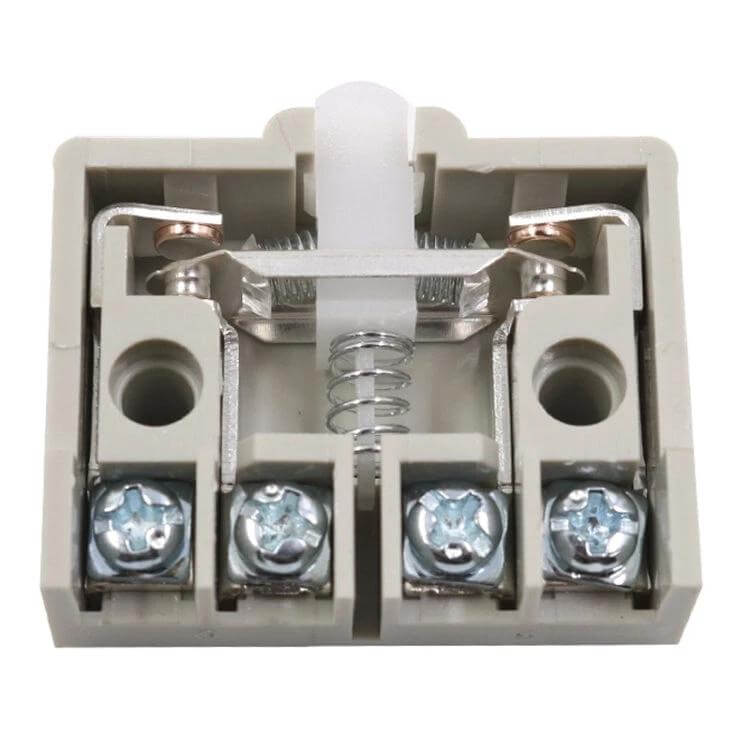

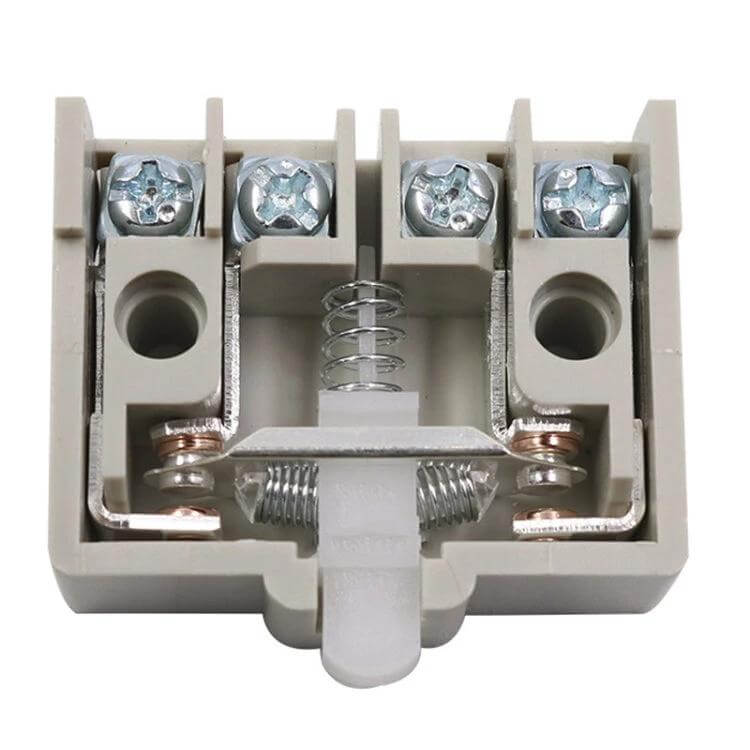

- Silver-contact core for low resistance and wear resistance.

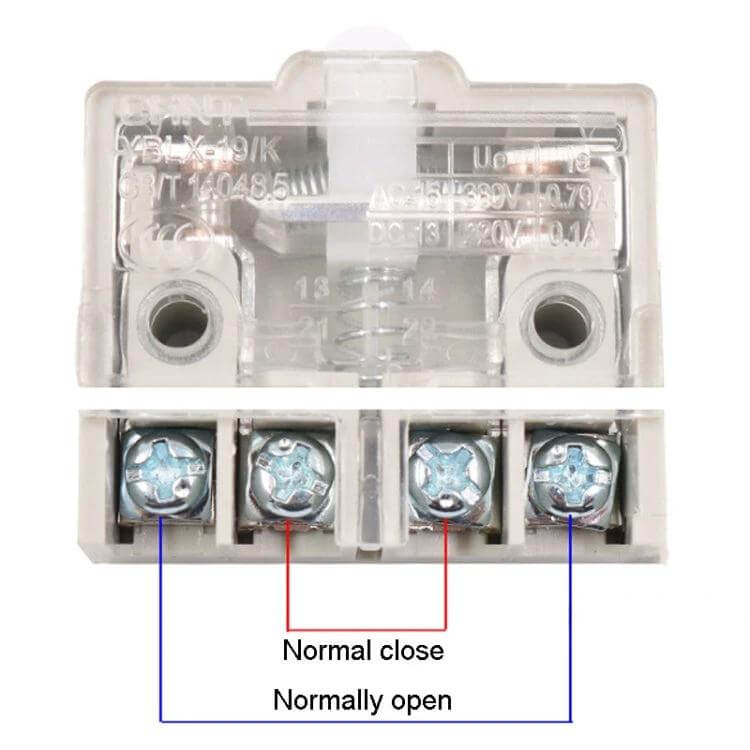

- 1 normally open and 1 normally closed contact.
- Screw-terminal wiring with direct lead protection.
- Dustproof protective cover and IP529 protection.
- Reset force > 3.4 N with spring-assisted over-travel buffer.
- AC up to 380 V; DC up to 220 V; currents AC 0.79 A, DC 0.1 A.
Specifications (optional) Shell: metal/plastic; operating temp -5 to 40 °C; repeatability < 0.1 mm; weight ≈ 17.7 g; size 3.6 × 2.8 × 1.45 cm; protection IP529; contact material silver.
Fit: Designed to fit YBLX-EKW/5A/B foot switches and YBLX-19 series travel switches.
