This single channel passive video balun facilitates the transmission of CCTV video signals over unshielded twisted pair (UTP) cables, offering a straightforward alternative to coaxial wiring.
In a typical setup, such as monitoring a large property or commercial space, this balun allows you to extend video feeds from security cameras without the need for additional power sources, simplifying installations and reducing clutter in existing wiring systems.
- Transmits full-motion video up to 330 meters with a passive transceiver or up to 1500 meters with an active UTP receiver
- Supports NTSC, PAL, and SECAM video formats for broad compatibility with various camera systems
- Requires no external power, making it ideal for quick and easy deployments
- Provides 60 dB of crosstalk and noise immunity for clearer signal transmission

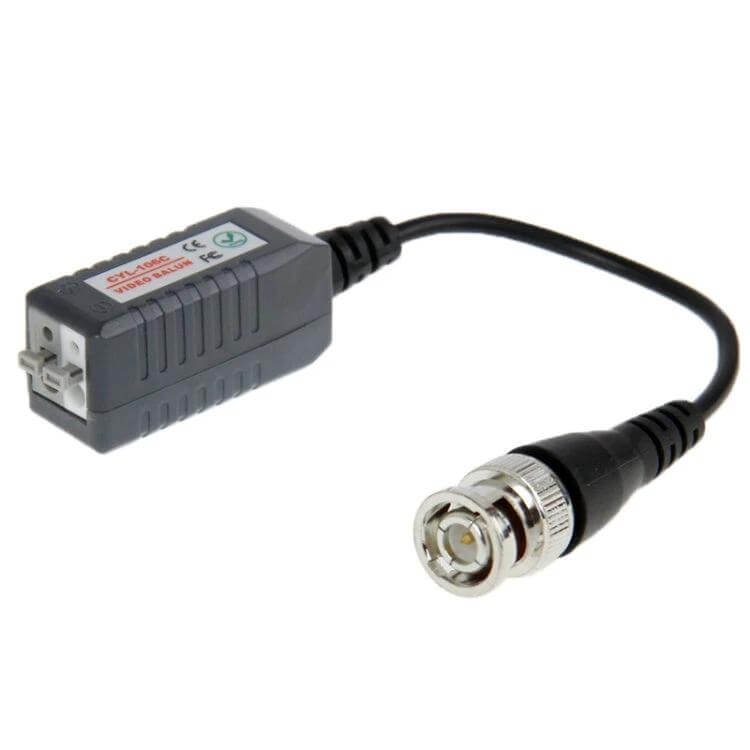

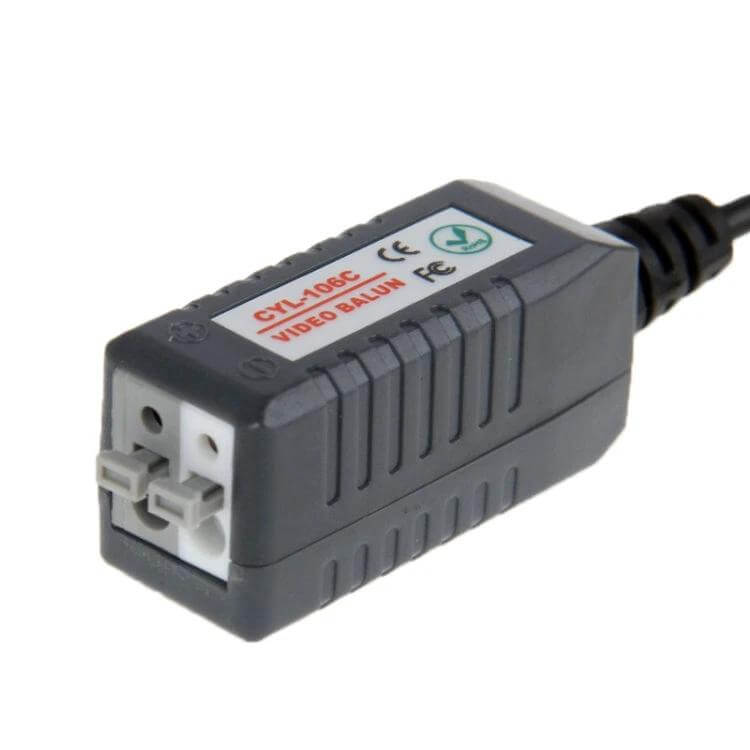

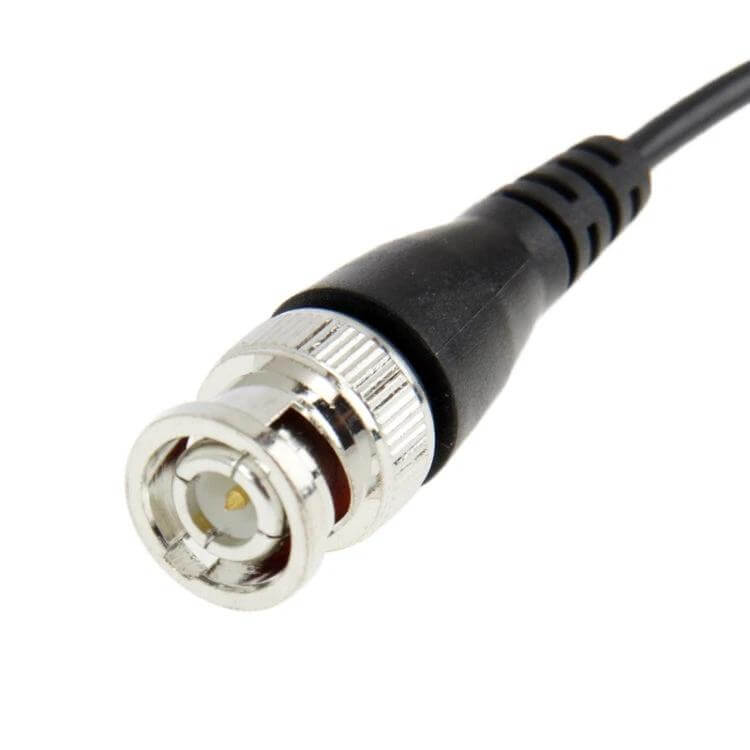

- Features a compact design with male BNC and press-fit terminal block connectors for secure, hassle-free connections
- Frequency response from DC to 8MHz with typical attenuation of 0.5dB
This product suits users setting up or expanding CCTV systems where reliable, long-distance video transmission is needed without complicating the infrastructure.
