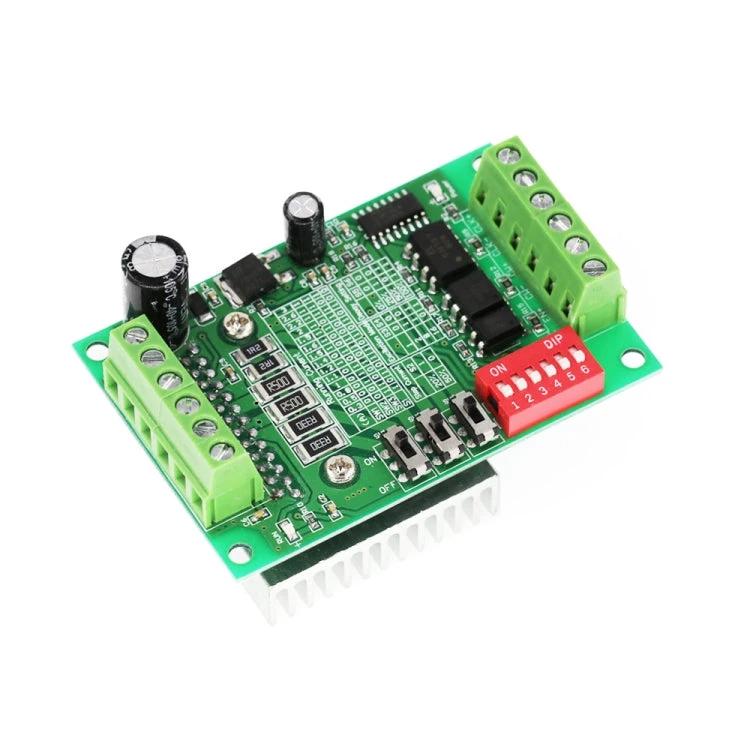

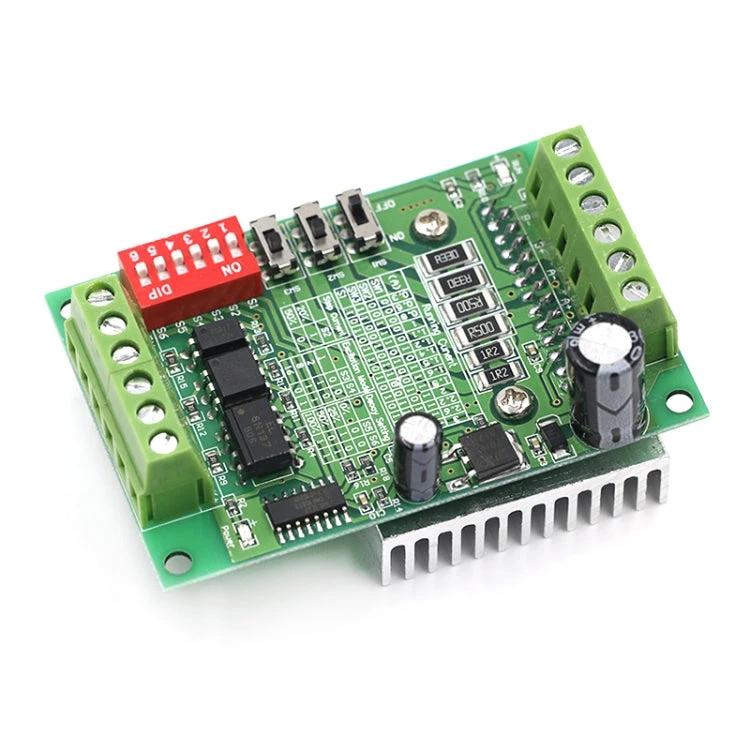

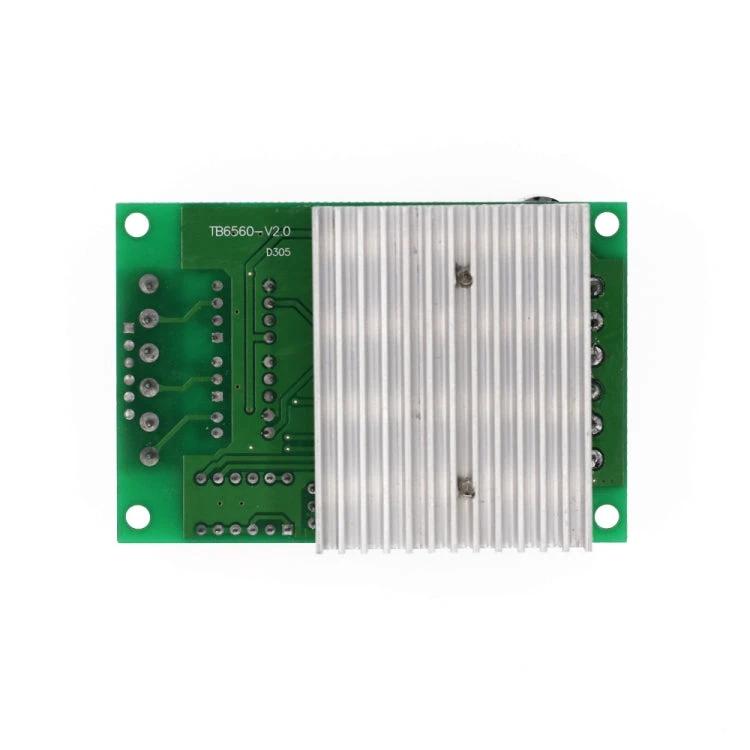

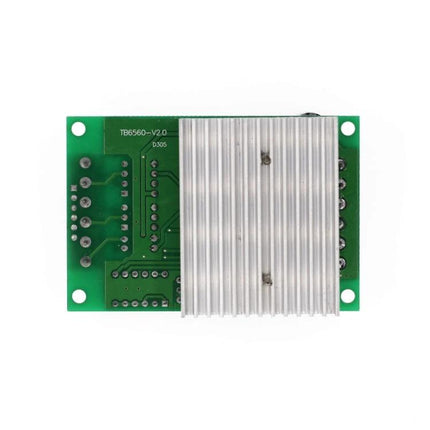

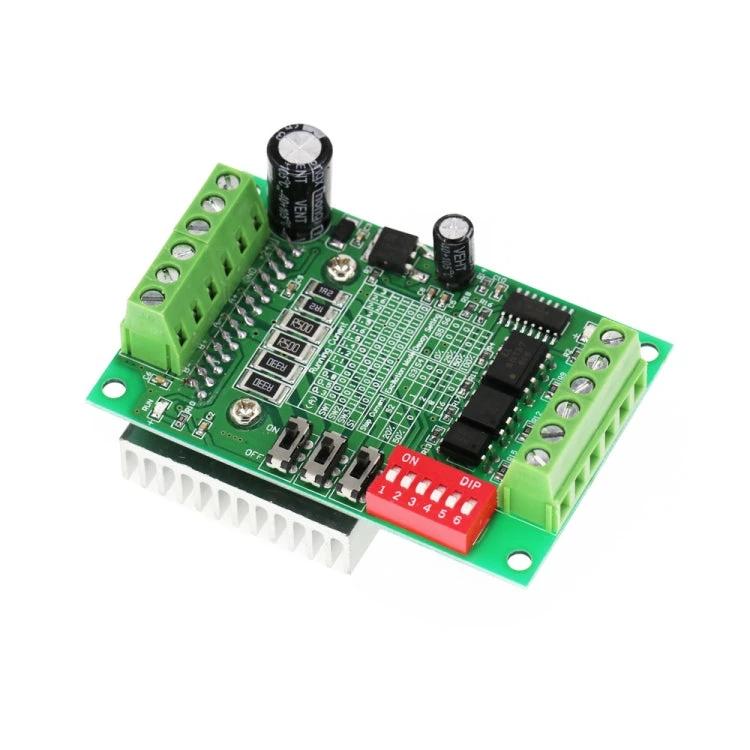

This stepper motor controller board is designed for DIY electronics projects, offering precise control for various motor types. It operates on a DC 10V-35V power supply, with a recommended 24V for optimal performance.
In DIY applications like robotics or CNC machines, this board helps achieve accurate motor positioning and speed control, reducing the risk of step loss during operation. It's particularly useful for projects requiring adjustable settings to match specific motor needs.
- Features Toshiba TB6560AHQ chip with built-in protections against overcurrent, overheating, and low voltage for reliable use.
- Includes 6N137 high-speed optical coupling to maintain accuracy at higher speeds.
- Supports up to 16 subdivisions, including full, half, 1/8, and 1/16 steps, for fine-tuned control.
- Automatic half-flow function to conserve energy and reduce heat buildup.
- Adjustable current levels up to 3A maximum, compatible with 42 or 57 stepping motors under 3A.
- Compact dimensions of 50mm x 75mm x 35mm and lightweight at 83g for easy integration into projects.
This board fits well for hobbyists and makers working on motor-driven prototypes, providing essential controls without unnecessary complexity.
