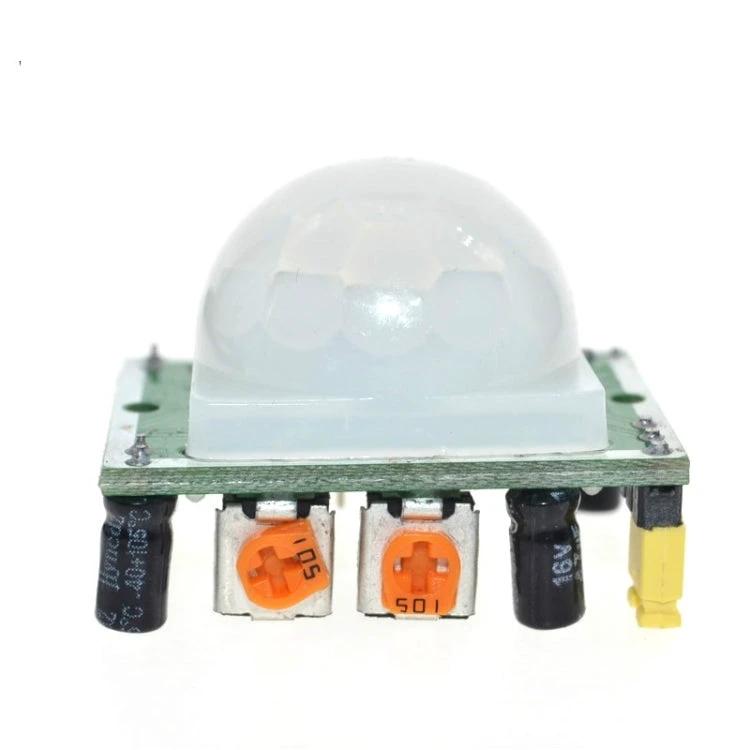

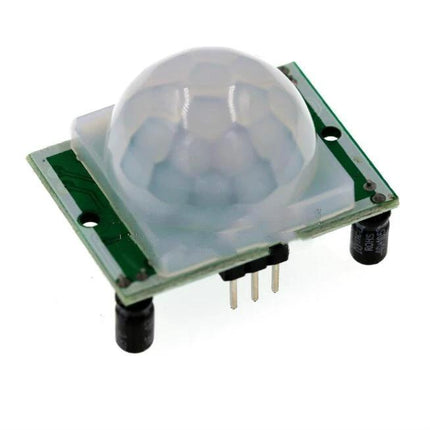

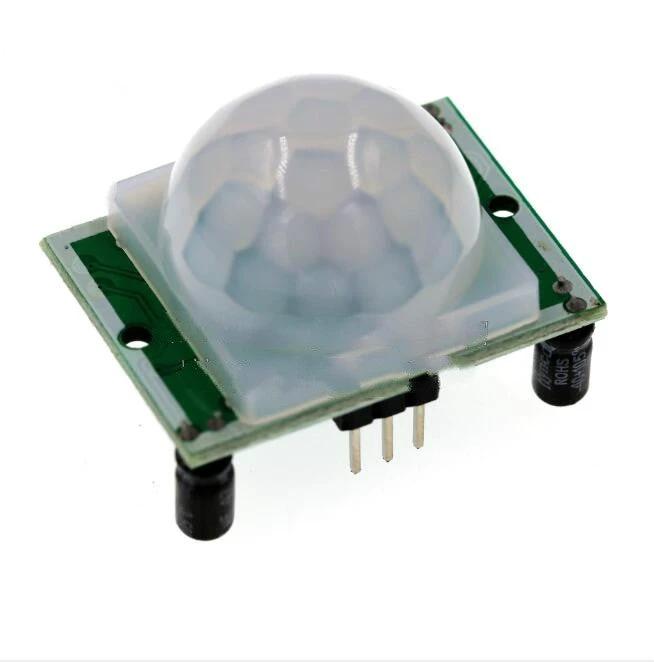

The SUNLEPHANT Human Infrared Sensor is a compact motion detection device that uses passive infrared technology to identify human movement in its vicinity.
In practical settings, this sensor can be used in home security systems to activate lights or alarms upon detecting motion, or in automated setups like energy-saving devices that turn off when no one is around, helping to reduce unnecessary power use.
- Adjustable delay time from 0.5 to 200 seconds, allowing customization for specific timing needs in various applications.
- Low static current under 65uA, which supports longer battery life in portable or wireless installations.
- Wide operating voltage range of 5-20V DC, making it compatible with a variety of power sources.
- Sensing range up to 7 meters with a less than 120-degree cone angle, suitable for targeted area monitoring.
- Compact dimensions of 32mm x 24mm and an induction lens diameter of 23mm, easing integration into tight spaces.
- Operates in temperatures from -15 to +70 degrees Celsius, accommodating indoor and outdoor use.
This sensor fits well in DIY electronics projects, security enhancements, or automation tasks where reliable motion detection is needed without complex setups.
