The Truck Trailer Taillights use 74 LEDs (44 red, 30 yellow) for clear multi-signal output. Operating from 10–30V DC, they are IP67-rated for durability in challenging conditions.
This unit serves as a practical replacement for trucks, trailers, RVs, vans, and other vehicles, helping maintain visibility in daylight and at night.

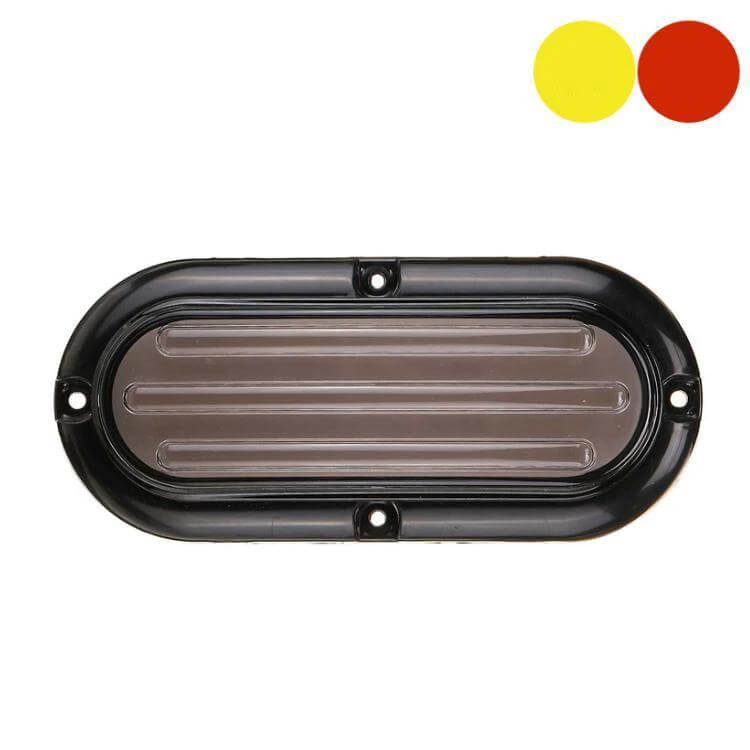

- LED configuration: 74 LEDs (44 red, 30 yellow) for brake, running, and turn signals.

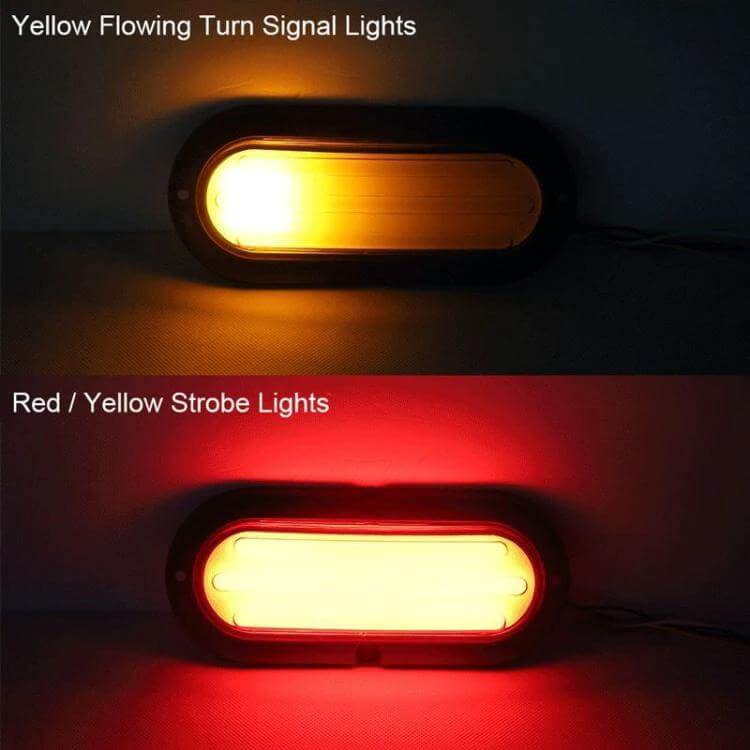

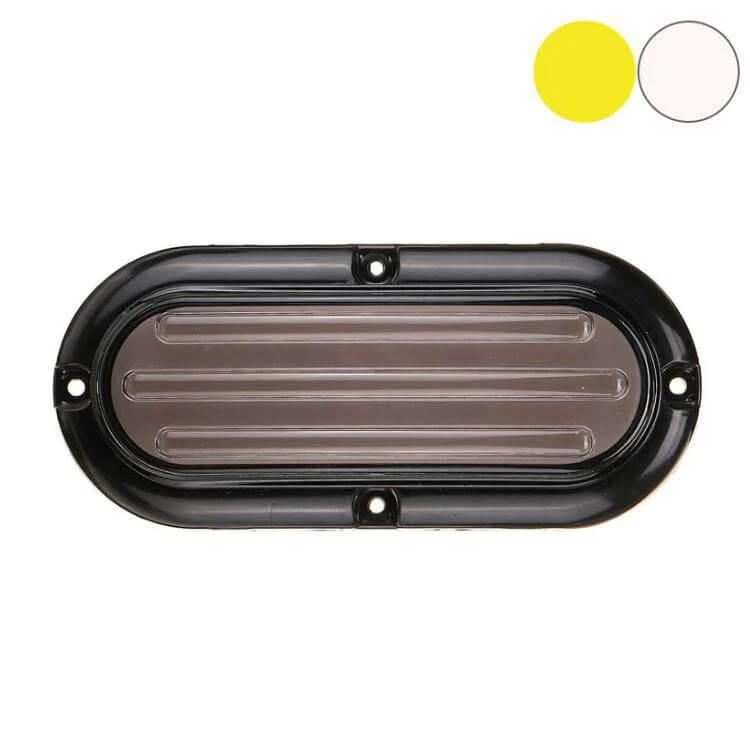

- Function 1: red running light, red brake, yellow flowing turn, red/yellow strobe. Function 2: white daytime running light, yellow flowing turn, red/yellow strobe.
- Voltage and current: operates 10–30V DC. At 12V: brake 0.25A, running 0.03A, turn 0.24A, strobe 0.12A; at 24V: brake 0.14A, running 0.02A, turn 0.13A, strobe 0.07A.

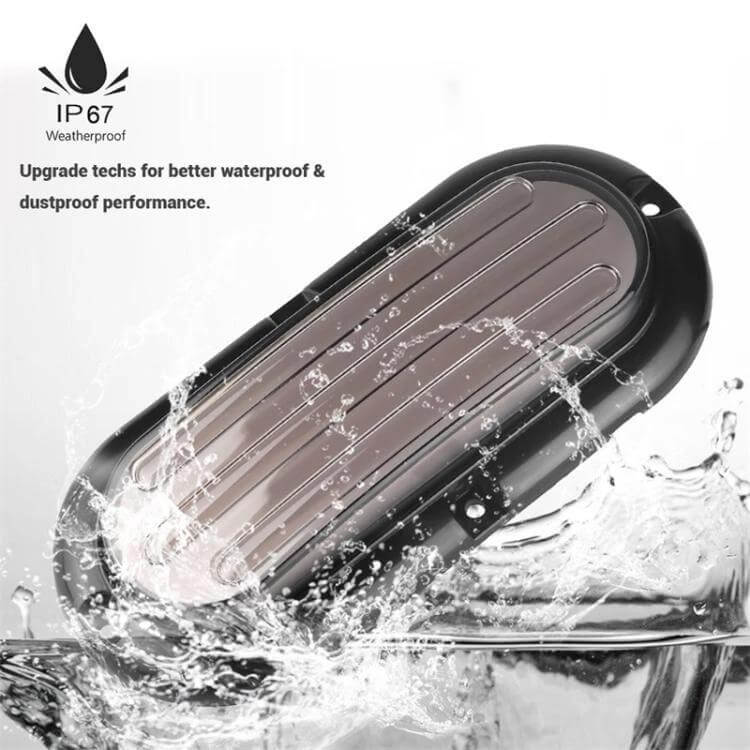

- Durability: IP67 waterproof and dustproof.

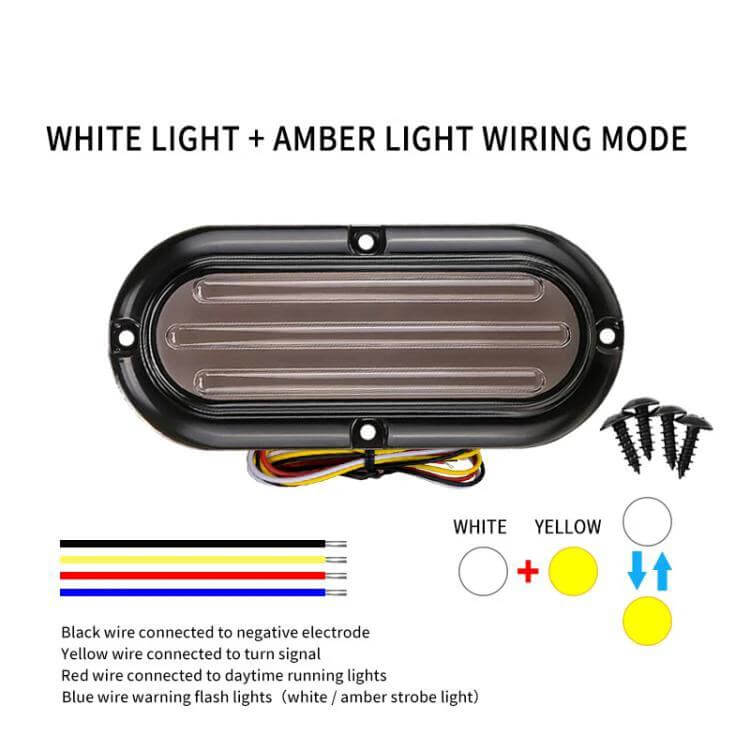

- Wiring options: black negative, white running light, yellow turn, red brake; blue for flashing in the dual-mode setup.

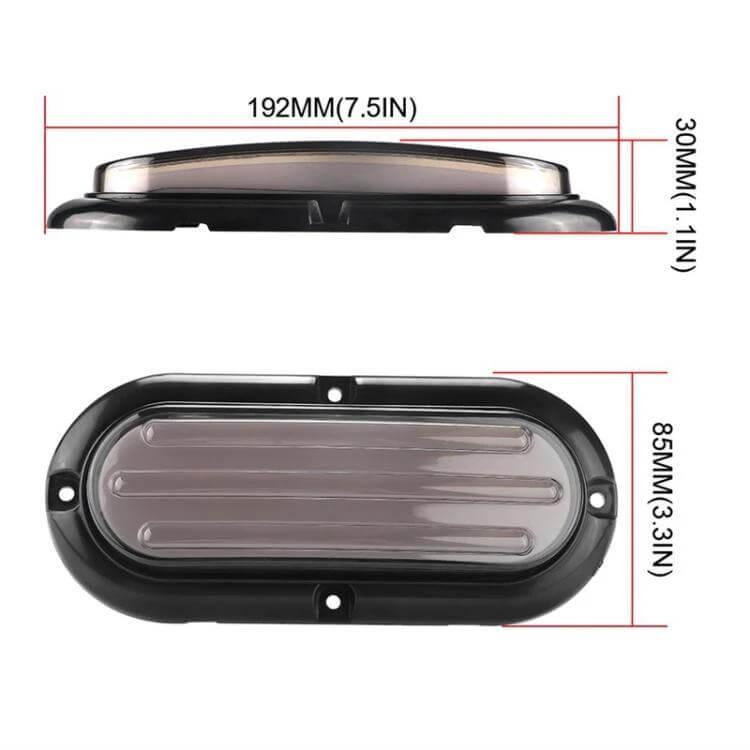

- Dimensions: 30×85×192 mm (about 6 in); designed for standard taillight openings.
Fit: designed to mount in standard taillight openings; verify mounting pattern and vehicle wiring before installation.
