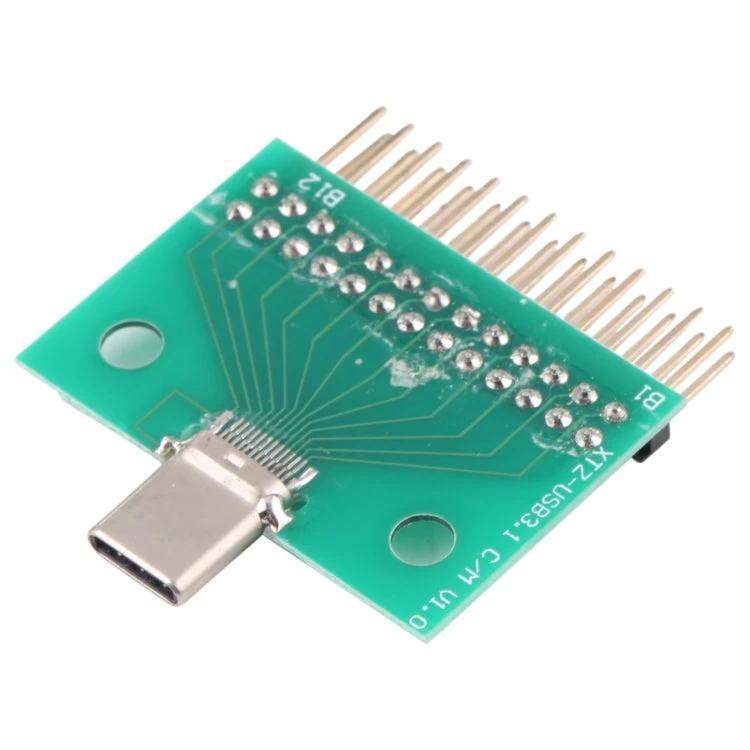

The Professional USB Type C Male Test Board is a compact diagnostic tool for technicians who need a quick way to verify USB‑C connector continuity and basic signal presence during repairs.
Use this board when troubleshooting smartphones, tablets, laptops, and other devices with USB Type‑C ports. It helps isolate port faults, check cable-to-board connections, and confirm pin continuity without fully reassembling the device.
-

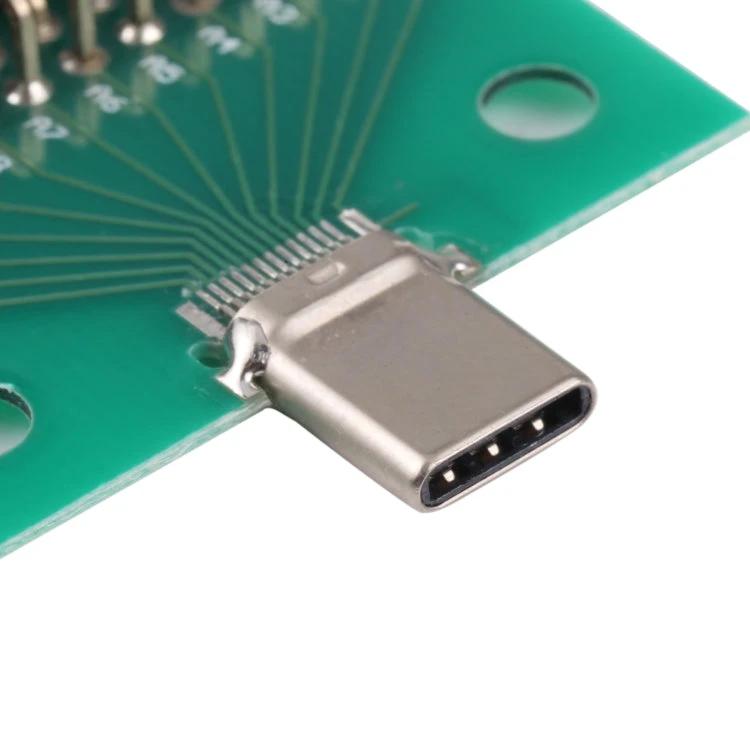

Simple connectivity checks: exposes USB‑C male pins for direct probing and cable insertion.
-
Standard compatibility: works with typical USB Type‑C cables and ports used in consumer electronics.
-
Compact form factor: designed for bench use and easy storage in a technician’s toolkit.
-
No-special-tools setup: connects and tests with common multimeters or continuity testers.
-
Secure connection points: provides stable contact without modifying the device under test.

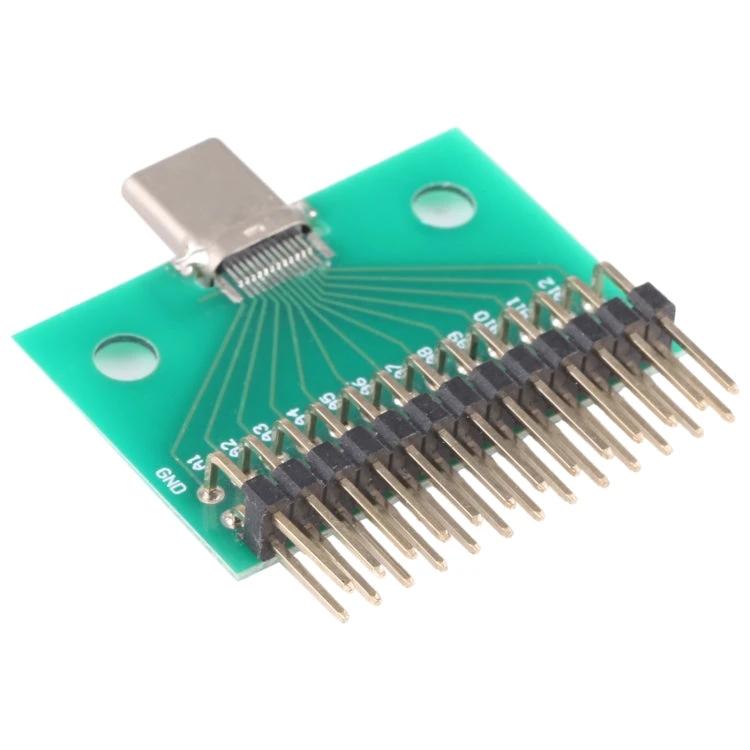

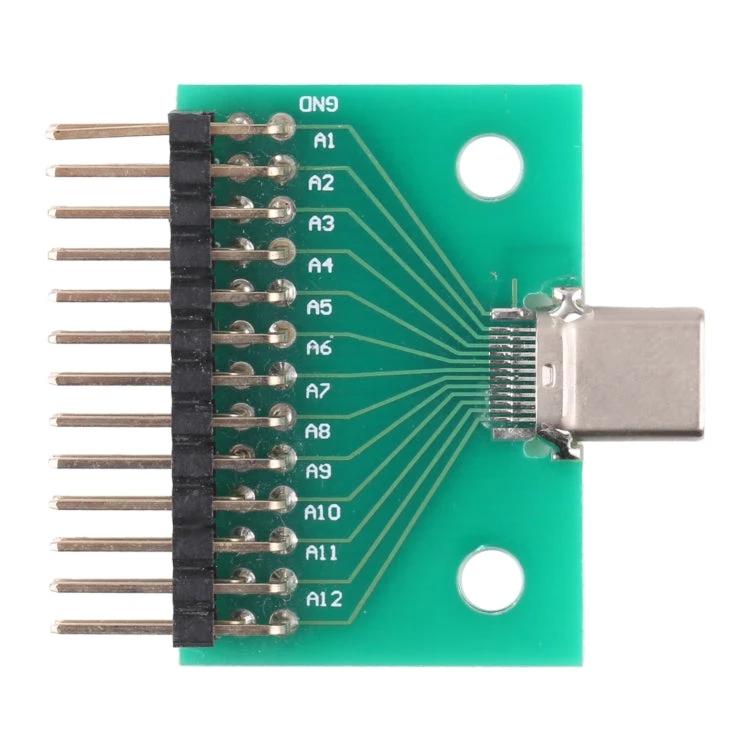

Specifications (light): compact board for bench testing; visual pin layout for quick identification.
Fit: suitable for repair technicians and small electronics labs that perform routine USB‑C diagnostics and basic connector repair.
