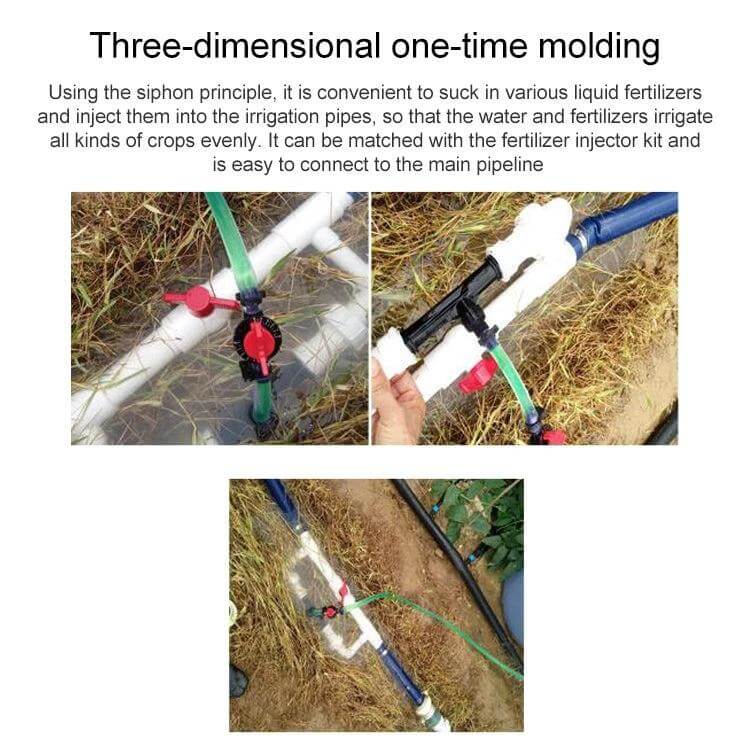

The Venturi Fertilizer Applicator for Three-Quarter Inch Irrigation Line is a compact, plastic injector that adds fertilizer to irrigation water using the system’s flow. Install in parallel with the main water valve or in series to draw fertilizer from an open bucket via venturi suction, delivering it into the irrigation pipe.
- No external power required; relies on water flow to create suction.

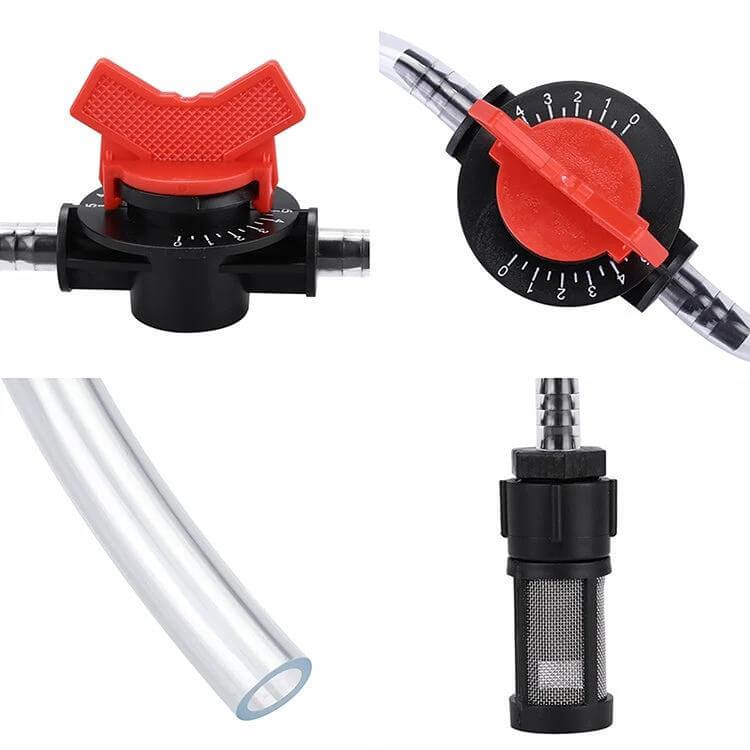

- Parallel or in-series installation possible with adjustable suction via the control valve.

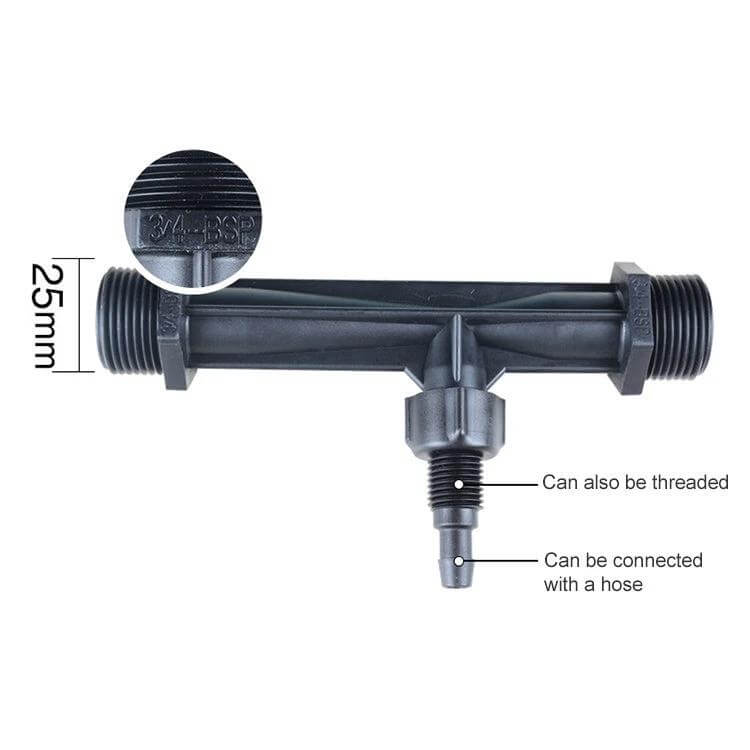

- G3/4 inlet and socket external thread for easy, compatible connections.
- Flow range: 0.65–2.42 m3/h; self-priming: 9–92 L/h; operating pressure 0.7–9.5 bar.
- Material is durable plastic designed for irrigation environments.

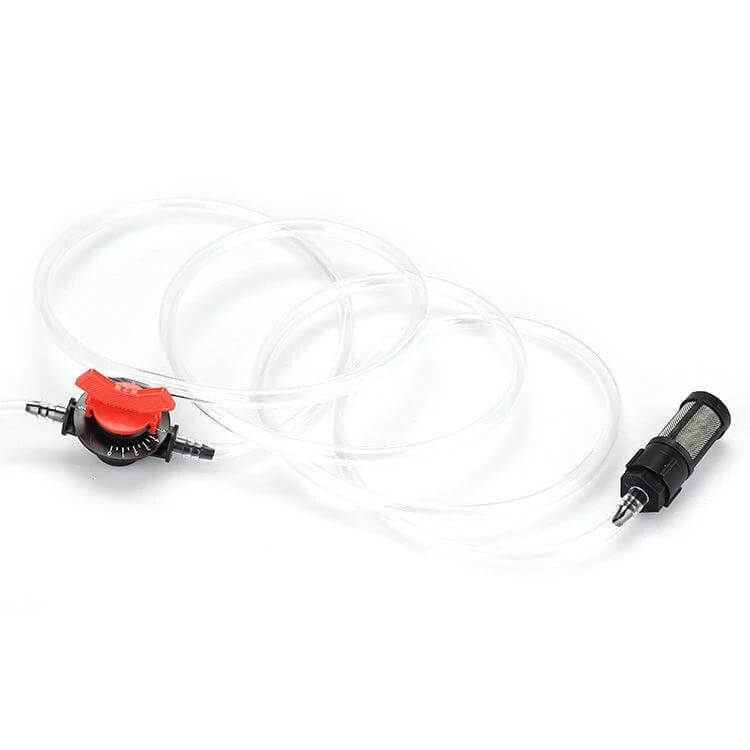

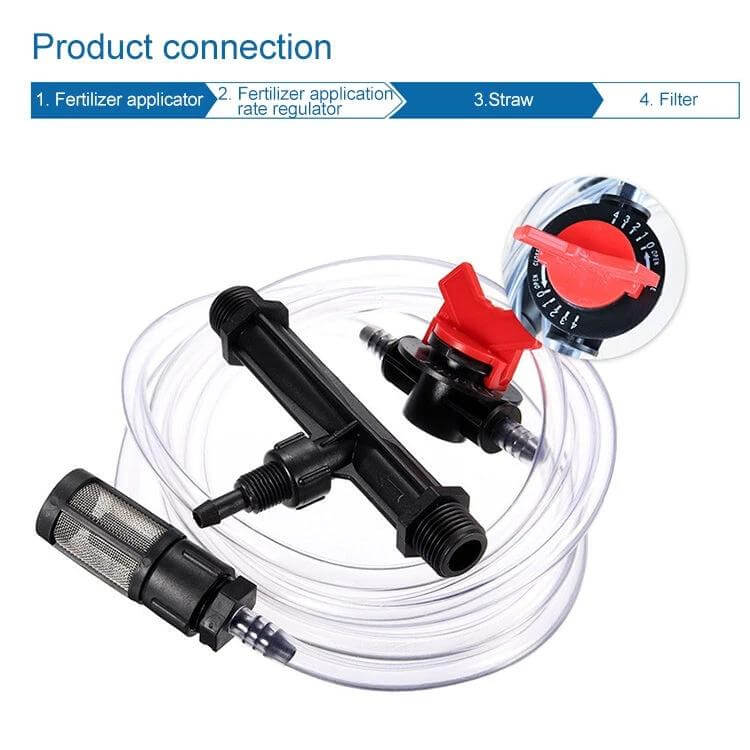

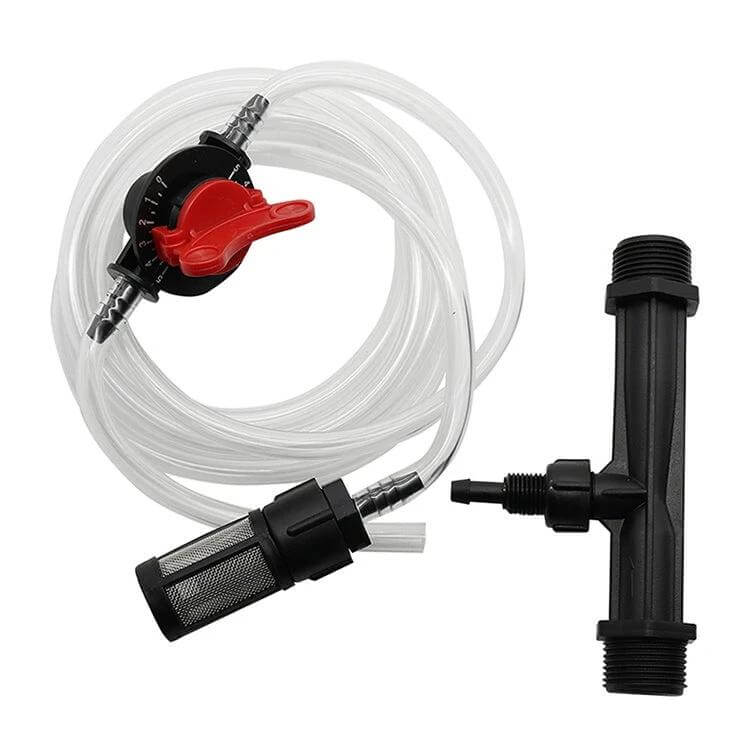

- Compatible with fertilizer injector kits for straightforward mainline integration.

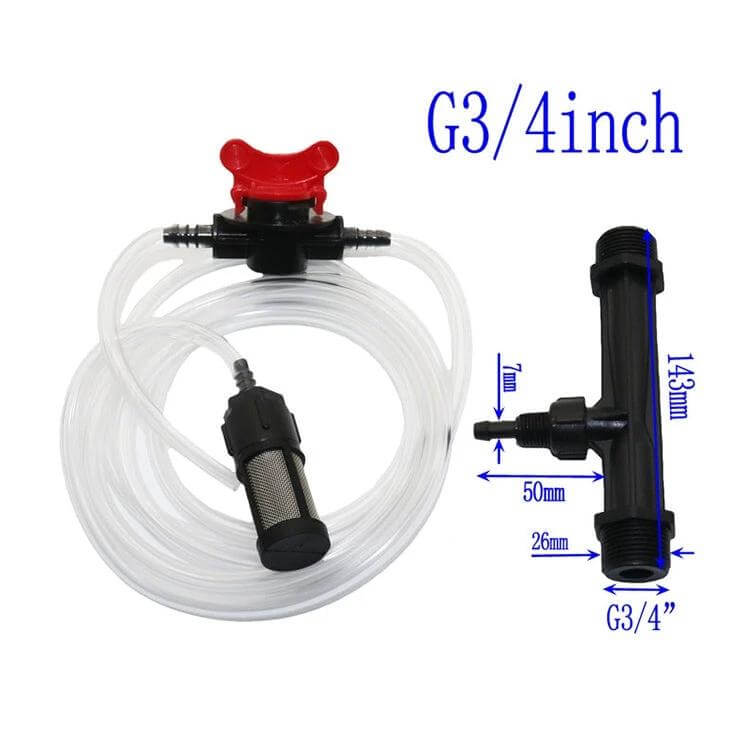

Specifications: Material – plastic; Inlet/Outlet – G3/4 external thread; Flow range – 0.65–2.42 m3/h; Self-priming – 9–92 L/h; Working pressure – 0.7–9.5 bar.
Fits 3/4 inch irrigation lines and standard drip systems.
