The Waterproof Five-Way Junction Box protects circuit connections in outdoor and harsh environments. Constructed from PC plastic with IP68 sealing, it provides insulated, weather-resistant routing for up to five cables.
Use cases include solar array wiring, garden and pathway lighting runs, and protected control-circuit joins where multiple cables converge; the five-way layout simplifies distribution and reduces the need for separate connectors.
-
Five-way distribution: routes power or signal to multiple cables without additional junctions.
-
Durable material: polycarbonate (PC) housing, sunproof and rated 94-V2 for flame retardance.
-
Water and dust protection: IP68 sealing with supplied sealing rings for outdoor exposure.
-

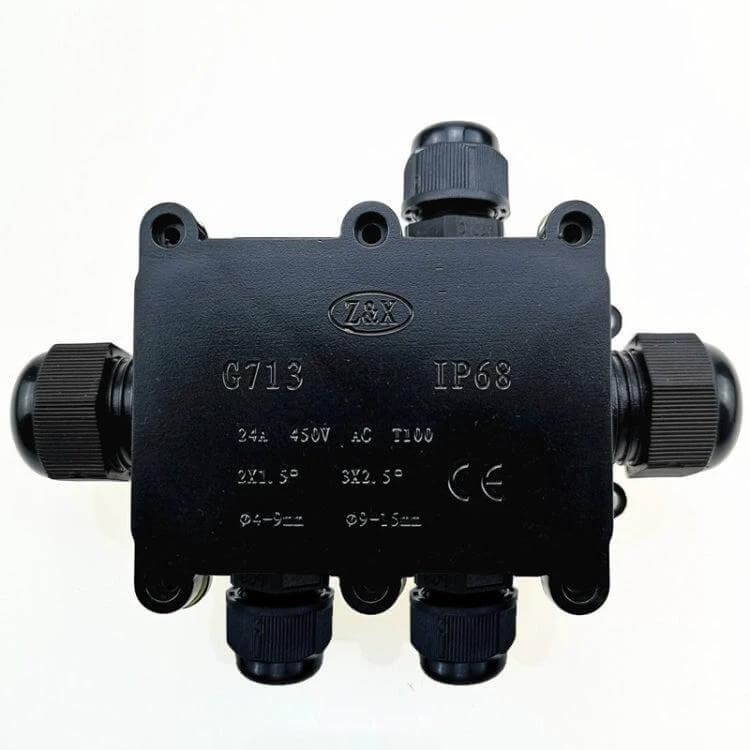

Electrical rating: 24 A, 450 V suitable for low-voltage power and many control circuits.
-

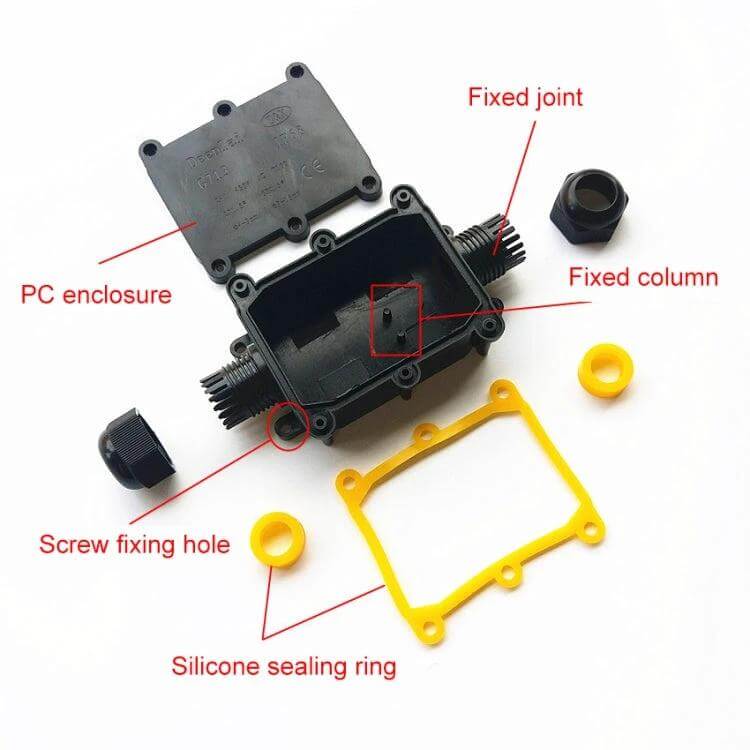

Complete kit: includes terminal, 6 screws, and 6 sealing rings for assembly and mounting.
Specifications (light): box size 72×48.5×37 mm; overall 130×109×37 mm; weight 119 g; cable entry ranges 4–9 mm, 9–12 mm, 12–15 mm.

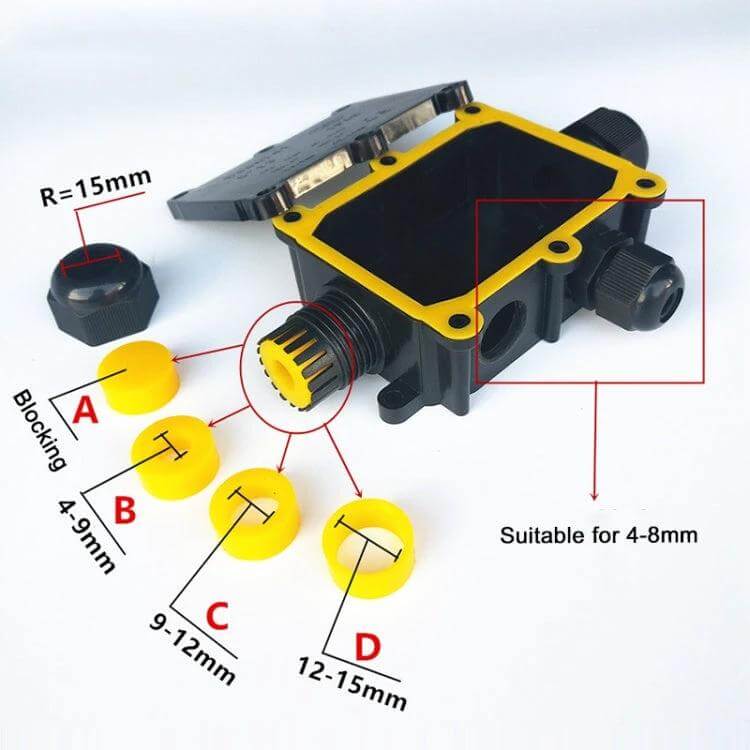

Fit: compatible with cables 4–15 mm using the supplied sealing rings and screws for secure installation in enclosures.
